MAN Coolant expansion tank assembly 51.06102-6103
Genuine MAN coolant expansion tank assembly for D2866 marine diesel engines — part of the engine's coolant de-aeration and cooling circuit.
Coolant expansion tank assembly51.06102-6103
Engine modelD2866
Previous part no.50.06102-6047
Weight18.08 kg
Dimensions310 × 265 × 700 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

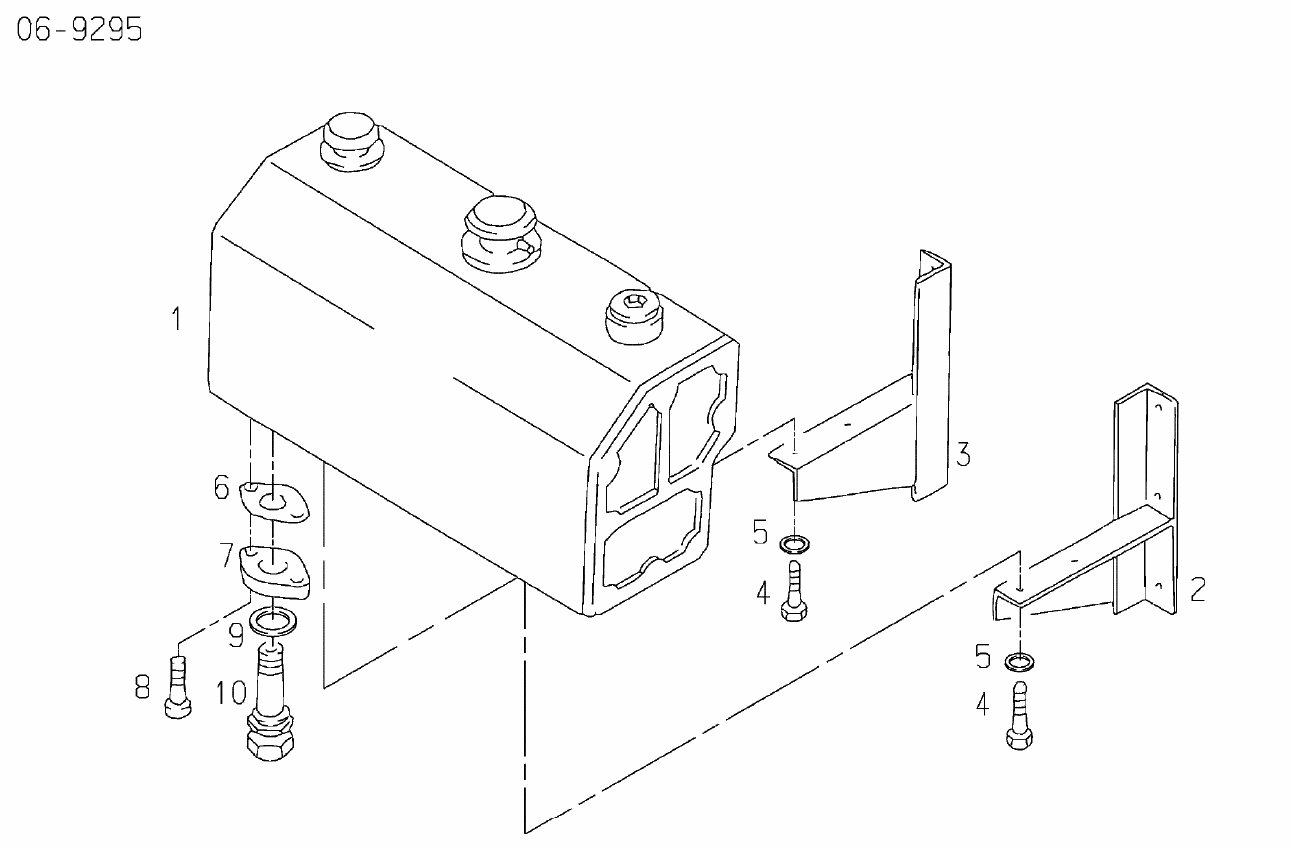

Parts contained in this surge tank assembly, per the MAN parts catalogue (reference 51.#0310-0121, drawing 06-9295). This coolant expansion tank assembly is position 1.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06102-6103 | coolant expansion tank assembly | 1 |
| 2 | 50.06140-5086 | bracket left | 1 |
| 3 | 50.06140-5085 | bracket right | 1 |
| 4 | 06.01289-0157 | hexagon screw M10X22-8.8-MAN183-A3C | 4 |
| 5 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 4 |
| 6 | 06.56257-2429 | gasket 42X68X2-AFOE4-M3219 | 1 |
| 7 | 50.98112-0174 | flange | 1 |
| 8 | 06.02190-0508 | cylinder screw with hexagon socket M10X22-8.8-MAN183-ZNPHR3F | 2 |
| 9 | 06.56190-0736 | seal A33X39-CU | 1 |
| 10 | 06.71010-0412 | pipe union DL28A-ST | 1 |
Specifications
| Part number | 51.06102-6103 |
| Part no. (other formats) | 51.06102.6103 · 51061026103 |
| Engine model |
|
| Previous part no. | 50.06102-6047 |
| Weight (kg) | 18.08 |
| Dimensions (mm) | 310 × 265 × 700 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
