Coolant expansion tank

MAN Coolant expansion tank 51.06102-6115

Genuine MAN coolant expansion tank for D2848, D2840 and D2842 marine diesel engines, part of the engine's coolant de-aeration and cooling circuit.

Request a quote Back to heat exchangers
Coolant expansion tank51.06102-6115
In stock
Engine modelD2848, D2840, D2842
Previous part no.51.06102-6114
Weight29.75 kg
Dimensions380 × 320 × 775 mm
Country of originFrance
Warranty2 years
Genuine OEM · dispatched same day

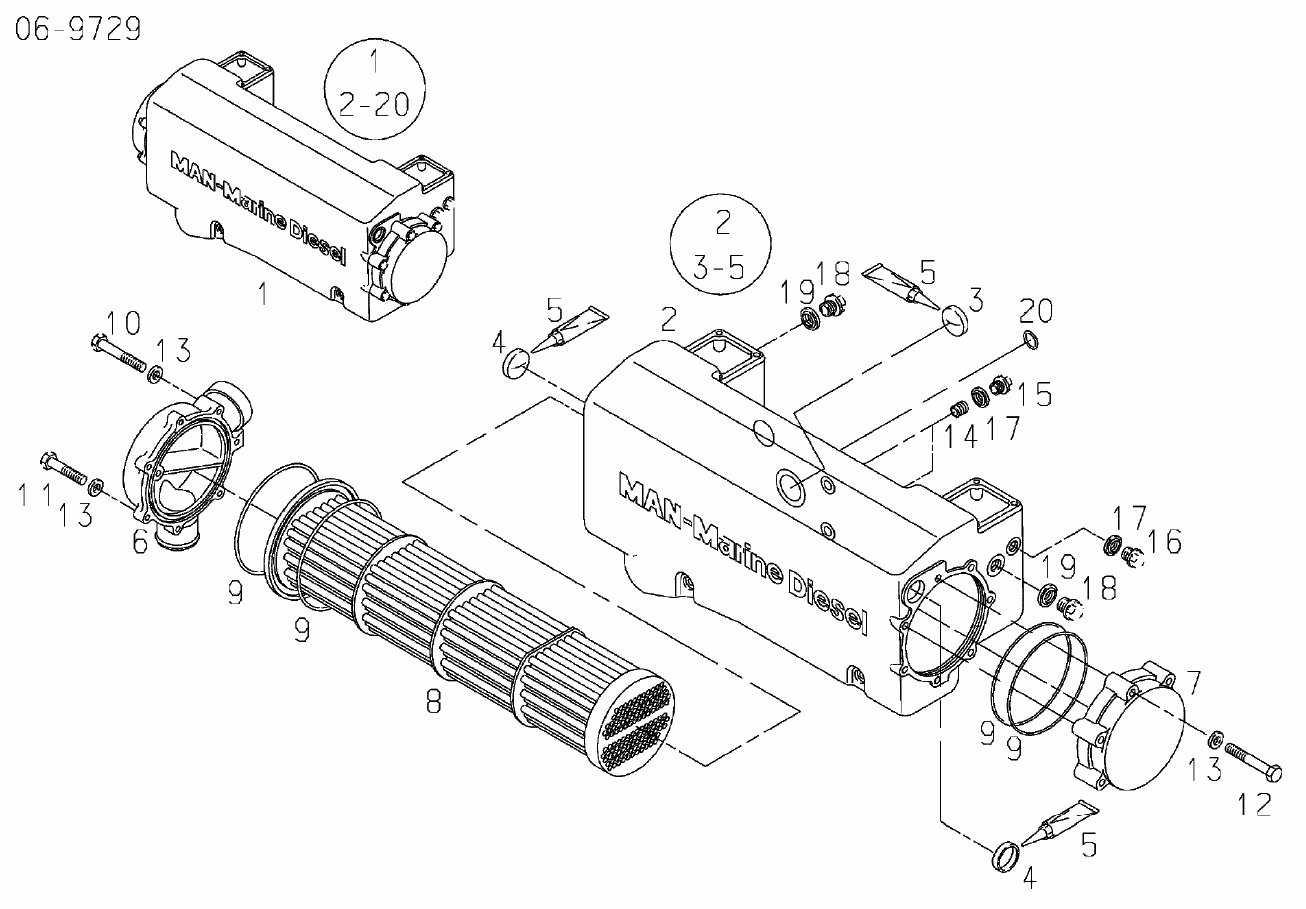

MAN heat exchanger assembly exploded diagram containing coolant expansion tank 51.06102-6115, with numbered components
Exploded view: MAN heat exchanger assembly (MAN parts catalogue reference 51.#0140-0711, drawing 06-9729) containing coolant expansion tank 51.06102-6115. Numbers correspond to the components list below.

Components

Parts contained in this heat exchanger assembly, per the MAN parts catalogue (reference 51.#0140-0711, drawing 06-9729). This coolant expansion tank is position 2.

PosItem numberName / RemarksQty
151.06100-7013heat exchanger1
251.06102-6115coolant expansion tank1
351.91606-0053cover A50,2/10,5-X5CRNI1810N4
451.91606-0090cover A40,15/14,5-X5CRNI1810N2
504.10160-9164adhesive LOCTITE648-FL50ML bottleNB
651.06112-0015cover1
751.06112-0008reversing chamber1
851.06109-0043tube bundle1
906.56930-4388O-ring 185X5N-NBR3-704
1006.01014-9120hex shoulder stud M8X75-10.9-MAN183-PHR3
1106.01014-9116hex shoulder stud M8X55-10.9-MAN183-PHR4
1206.01013-7121hex shoulder stud M8X80-8.8-MAN183-B17
1306.15015-0411washer 8X16X1,6-300HV-MAN183-B114
1406.06166-0708threaded pin M12X20-45H2
1506.08062-0203drain plug M14X1,5-ST-ZNPHR3F2
1651.90310-0241drain plug M14X1,5X9-CUZN39PB3-SW191
1706.56631-0235seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip3
1806.08099-0016drain plug AM18X1,5-ST-MAN183-B12
1906.56631-0237seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip2
2006.56936-2733O-ring 74X5-FPM1-70-GN1

Specifications

Part number51.06102-6115
Part no. (other formats)51.06102.6115 · 51061026115
Engine model
  • D2848 LE401/403/405
  • D2848 LE/LE 406
  • D2840 LE401
  • D2840 LE301/302/402/403/404/407/409
  • D2848 LE422/423
  • D2840 LE423
  • D2842 LE422/423/433/446/453
  • D2842 LXE/LYE/LZE/LE400/401/02/06/08
  • D2842 LE301/302/403-405/407/409-420
Previous part no.51.06102-6114
Weight (kg)29.75
Dimensions (mm)380 × 320 × 775
Country of originFrance
Warranty2 years
AvailabilityIn stock
In the engine catalogue. This part appears in heat exchanger components in the MAN D2840 LE301, MAN D2842 LE443 and MAN D2848 LE422 catalogues, with the MAN exploded view and the full parts list for the assembly.

Need this coolant expansion tank? Request a quote.

Send your engine model and serial number and we'll confirm fitment and price fast.
