Raw water pump
MAN Raw Water Pump 50.06500-7011
Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.
Raw water pump50.06500-7011
Engine modelD2840, D2842, D2848
Previous part no.50.06500-7008
Weight7.506 kg
Dimensions200 × 130 × 230 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

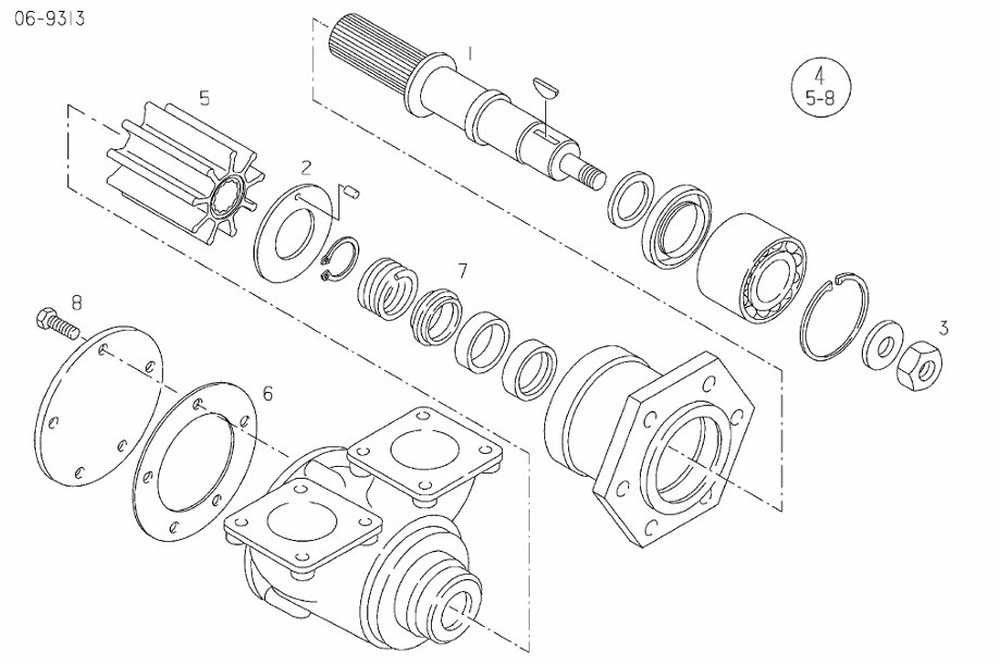

Parts contained in this assembly, per the MAN parts catalogue (reference 50.06500-7011).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 50.06505-0060 | shaft | 1 |
| 2 | 51.06520-0115 | wear plate | 1 |
| 3 | 50.90501-0068 | nut l.h. thread | 1 |
| 4 | 50.06599-6047 | Water pump repair kit | 1 |
| 5 | 50.06506-0089 | Impeller | 1 |
| 6 | 50.06901-0098 | Coolant pump seal | 1 |
| 7 | 50.06520-0061 | Coolant pump seal | 1 |
| 8 | 50.90001-0143 | hexagon screw 1/4"-20UNCX1/2"-ST-SW7/16"-A2A | 5 |
| 9 | 50.90720-0149 | slinger | 1 |
| 10 | 50.96501-0426 | radial shaft seal 36X62X7-NBR | 1 |
| 12 | 06.31480-7675 | ball bearing 3306-2Z | 1 |
| 13 | 50.97651-0032 | key | 1 |
| — | 51.90710-0403 | washer | 1 |
| — | 51.90030-0072 | cylinder screw 1/4"-20UNCX10-CU82AL10NI4FE4 | 1 |
| — | 51.90001-0203 | hexagon screw 5/16"UNF | 4 |
| — | 51.06512-0035 | cover | 1 |
| — | 51.91301-0103 | pin | 1 |
| — | 51.06501-0245 | excentric | 1 |
Specifications
| Part number | 50.06500-7011 |
| Part no. (other formats) | 50.06500.7011 · 50065007011 |
| Engine model | D2840, D2842, D2848 |
| Previous part no. | 50.06500-7008 |
| Weight (kg) | 7.506 |
| Dimensions (mm) | 200 × 130 × 230 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
