Raw water pump

MAN Raw Water Pump 50.06500-7013

Genuine MAN raw water (sea water) pump for D2840 LE100/200/400 marine diesel engines.

Raw water pump50.06500-7013

In stock

Engine modelD2840 LE100/200/400

Previous part no.50.06500-7005

Weight7.98 kg

Dimensions205 × 135 × 220 mm

Country of originGermany

Warranty2 years

Genuine OEM · dispatched same day

Components

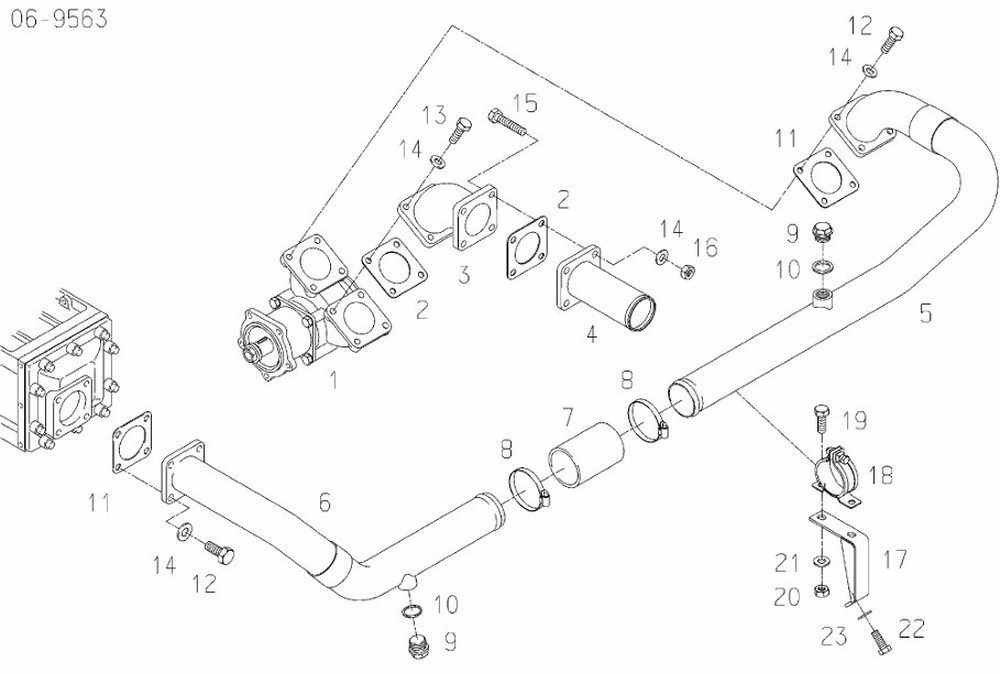

Pump with raw-water pipework and installation parts, per the MAN parts catalogue (reference 51.#0290-0070).

Pos	Item number	Name / Remarks	Qty
1	50.06500-7013	raw water pump	1
—	51.06505-0064	water pump shaft	1
—	51.06505-0065	excentric water pump	1
—	51.90501-0094	hexagon nut	1
—	50.06506-0073	Impeller	1
2	51.96601-0483	gasket	1
3	50.06301-0761	coolant elbow	1
4	51.06302-5944	cooling water pipe	1
5	51.06302-5908	coolant pipe soldered	1
6	50.06302-5468	cooling water pipe	1
7	51.96330-0395	hose 60X5,5X105-MVQ flameproof	1
8	06.67223-5070	hose clamp C1-1-70X20-W2-2	2
9	51.90310-0245	drain plug G1/2"-CUZN39PB3	2
10	06.56190-0716	seal A21X26-CU	2
11	51.96601-0483	gasket	2
12	06.01325-1415	hexagon screw M10X25-A4-70 sea-water resistant	4
13	06.01325-1417	hexagon screw M10X30-A4-70	4
14	06.15019-0092	washer 10X20X2-200HV-A4	12
15	06.01325-1419	hexagon screw M10X40-A4-70	4
16	06.11069-0146	hexagon nut M10-A4-70	4
17	50.06340-5097	bracket	1
18	50.97445-0024	clip A-60X25-W5/GI with bracket	1
19	06.01283-5213	hexagon screw M10X20-8.8-MAN183-B1	2
20	06.11064-2115	hexagon nut M10-8-MAN183-B1	2
21	06.15013-0412	washer 10X20X2-200HV-MAN183-B1	2
22	06.01283-5112	hexagon screw M8X18-8.8-MAN183-B1	1
23	06.15015-0411	washer 8X16X1,6-300HV-MAN183-B1	1
