Raw water pump
MAN Raw Water Pump 51.06500-6488
Genuine MAN raw water (sea water) pump for D0826 LE200/400 marine diesel engines.
Raw water pump51.06500-6488
Engine modelD0826 LE200/400
Previous part no.—
Weight2.351 kg
Dimensions110 × 95 × 155 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

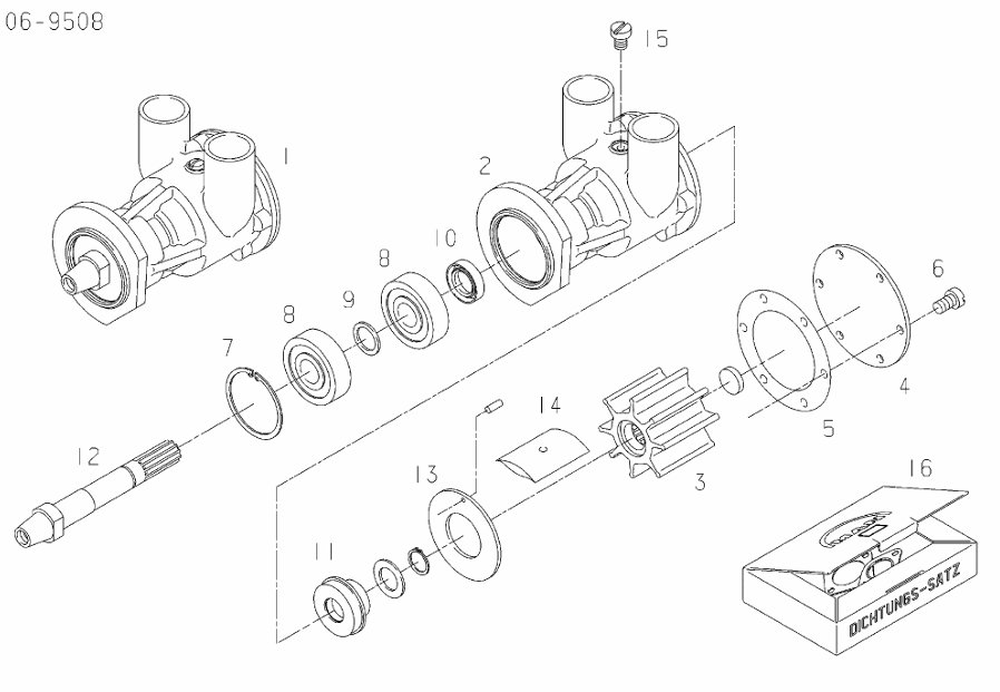

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0084).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-6488 | raw water pump single | 1 |
| 2 | 51.06501-0225 | water pump housing | 1 |
| 3 | 51.06506-0098 | Impeller | 1 |
| 3 | 50.06506-0076 | Impeller | 1 |
| 4 | 51.06512-0032 | cover | 1 |
| 5 | 51.06901-0133 | Coolant pump seal | 1 |
| 6 | 51.90001-0177 | pan-head screw M5X8-CUZN | 6 |
| 7 | 51.90815-0029 | circlip | 1 |
| 8 | 51.93410-0112 | ball bearing 6303-2RS1 | 2 |
| 9 | 51.90710-0365 | circlip | 1 |
| 10 | 51.06520-0077 | radial shaft seal 16X28X7 | 1 |
| 11 | 51.06520-0076 | Axial face seal | 1 |
| 12 | 51.06505-0067 | shaft | 1 |
| 13 | 50.06520-0049 | wear plate | 1 |
| 14 | 50.06520-0050 | excentric | 1 |
| 15 | 51.90441-0109 | pan-head screw 12-24UNCX9,5-CUZN | 1 |
| 16 | 51.06599-6057 | Water pump repair kit raw water pump | 1 |
Specifications
| Part number | 51.06500-6488 |
| Part no. (other formats) | 51.06500.6488 · 51065006488 |
| Engine model | D0826 LE200/400 |
| Previous part no. | — |
| Weight (kg) | 2.351 |
| Dimensions (mm) | 110 × 95 × 155 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
