MAN Raw Water Pump 51.06500-6500

Name: MAN Raw Water Pump 51.06500-6500
Brand: MAN
Availability: InStock

Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.

Raw water pump51.06500-6500

In stock

Engine modelD2840, D2842, D2848

Previous part no.—

Weight20 kg

Dimensions250 × 305 × 250 mm

Country of originGermany

Warranty2 years

Genuine OEM · dispatched same day

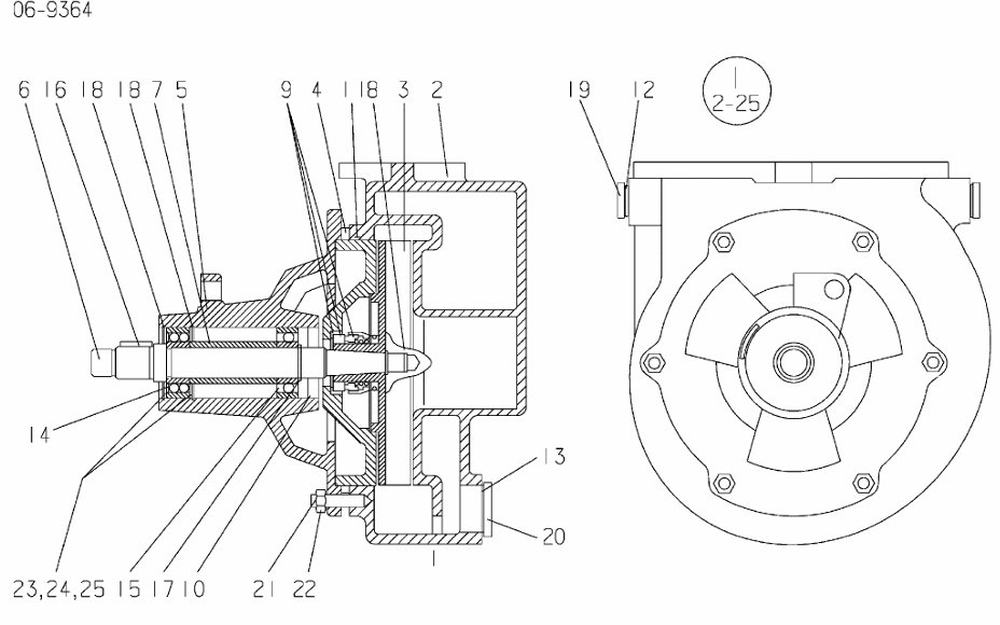

Components

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0092).

Pos	Item number	Name / Remarks	Qty
1	51.06500-6500	raw water pump KZ 160-IL	1
2	51.06501-0240	water pump housing	1
3	51.06506-0102	Impeller	1
4	51.06540-0021	intermediate piece	1
5	51.06512-0034	gear carrier	1
6	51.06505-0068	water pump shaft	1
7	51.91701-0797	spacer bush ST35	1
8	51.90685-0038	tensioning nut - CUSN12	1
9	51.06520-6015	Axial face seal	1
10	51.96501-0472	radial shaft seal 20X52X7	1
11	06.56936-4150	O-ring 160X3N-FPM1-70-GN	1
12	06.56190-0712	seal A18X22-CU	2
12	06.56631-0237	seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip	2
13	06.56190-0736	seal A33X39-CU	1
14	06.31489-0087	ball bearing	1
15	51.93410-0016	ball bearing 6304-2RSC3	1
16	06.29070-4508	key A6X6X20-ST60-2K	1
17	06.29200-0104	circlip 20X1,20	1
18	06.29020-0131	circlip 52X2,00-ZNPHR5F	2
19	06.08049-0024	drain plug M18X1,5-A2	2
20	06.08049-0001	drain plug G1A-A2	1
21	06.06225-0706	stud M8X25-8.8	6
22	06.11095-1105	hex lock nut M8-8-MAN183-B4	6
23	06.15114-2131	shim ring 42X52X1-ST2K50	1
24	06.15114-0431	shim ring 42X52X0,5-ST2K50	3
25	06.15114-0131	shim ring 42X52X0,1-ST2K50-BK	5
