Raw water pump
MAN Raw Water Pump 51.06500-6607
Genuine MAN raw water (sea water) pump for D2866, D2876 marine diesel engines.
Raw water pump51.06500-6607
Engine modelD2866, D2876
Previous part no.—
Weight13.58 kg
Dimensions180 × 170 × 320 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day

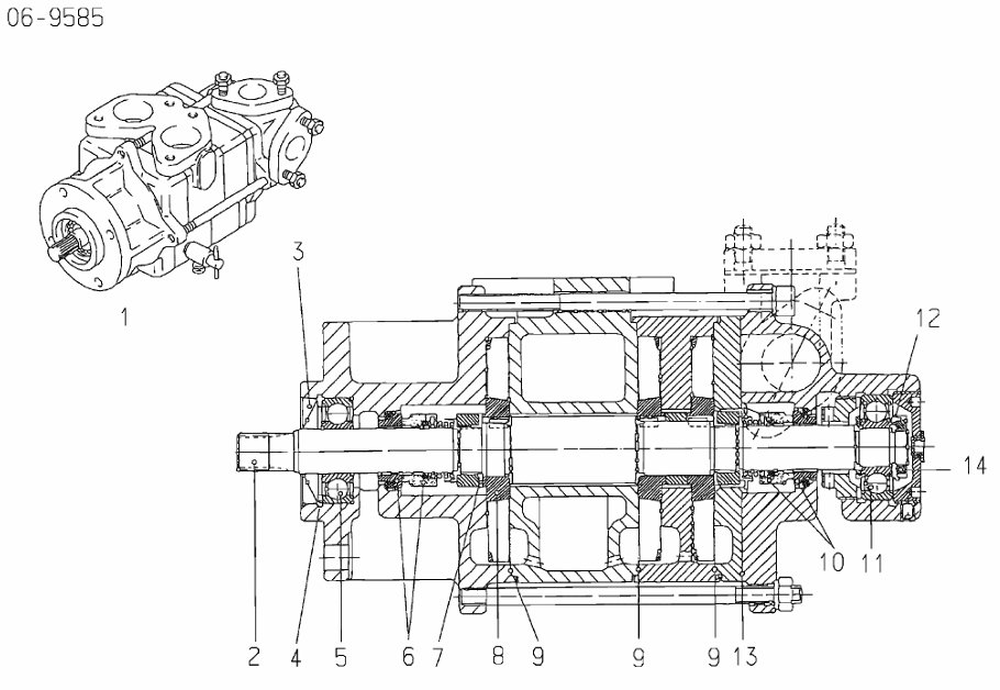

Components
Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0244).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-6607 | raw water pump | 1 |
| 2 | 51.06505-0072 | drive shaft raw water pump | 1 |
| 3 | 51.96501-0407 | radial shaft seal 20X47X7-NB | 1 |
| 4 | 06.29020-0128 | circlip 47X1,75-ZNPHR5F | 1 |
| 5 | 51.93410-0104 | ball bearing 6204-2RSRC3 | 1 |
| 6 | 51.06520-0056 | Axial face seal | 1 |
| 7 | 51.90801-0075 | lock washer | 1 |
| 8 | 51.06506-0082 | Impeller | 1 |
| 9 | 51.06901-0093 | Coolant pump seal | 3 |
| 9 | 51.06901-0094 | Coolant pump seal | 2 |
| 10 | 51.06520-0055 | Axial face seal | 1 |
| 11 | 06.31460-0402 | ball bearing 6303-ZC3 | 1 |
| 12 | 51.90801-0076 | lock washer | 1 |
| 13 | 51.06901-0191 | Coolant pump seal | 1 |
| 14 | 51.90685-0023 | hexagon nut M17X1-5 | 1 |
| — | 51.98125-0003 | drain valve raw water pump | 1 |
| — | 51.96002-0061 | plug 9,2X5,5-14-PE-NF | 1 |
| — | 51.91502-0002 | key | 1 |
Specifications
| Part number | 51.06500-6607 |
| Part no. (other formats) | 51.06500.6607 · 51065006607 |
| Engine model | D2866, D2876 |
| Previous part no. | — |
| Weight (kg) | 13.58 |
| Dimensions (mm) | 180 × 170 × 320 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
