Raw water pump
MAN Raw Water Pump 51.06500-7026
Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.
Raw water pump51.06500-7026
Engine modelD2866, D2876, D2848, D2840, D2676, D2842
Previous part no.—
Weight8.1 kg
Dimensions200 × 130 × 230 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

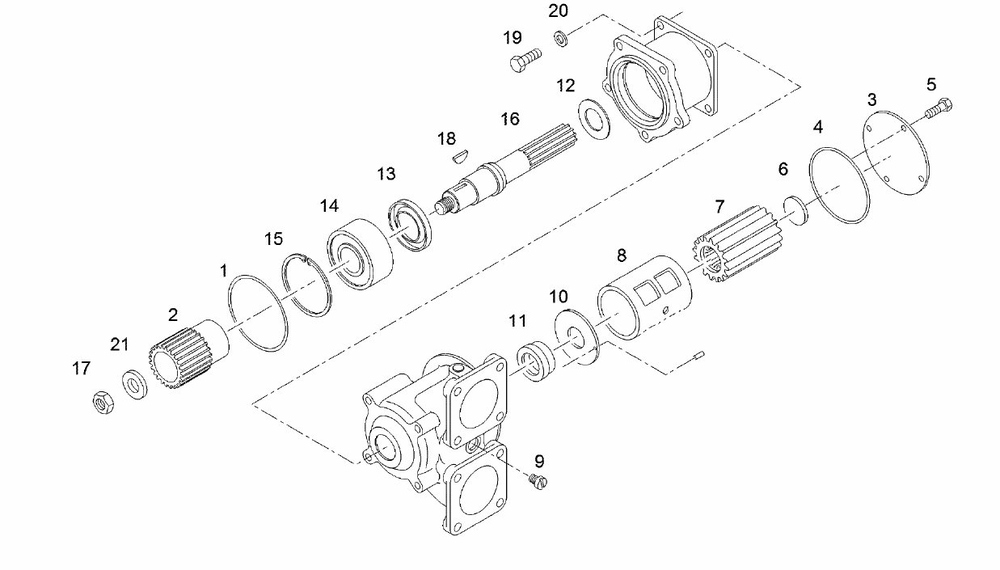

Parts contained in this assembly, per the MAN parts catalogue (reference 51.06500-7026).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 06.56936-2946 | O-ring 84X3N-FKM1-70-GN | 1 |
| 2 | 51.38509-0006 | hub | 1 |
| 3 | 50.06512-0028 | cover raw water pump 5-hole | 1 |
| 3 | 51.06512-0045 | cover raw water pump 4-hole | 1 |
| 4 | 50.06901-0086 | Coolant pump seal | 1 |
| 4 | 51.96501-0580 | seal | 1 |
| 5 | 51.90001-0226 | hexagon screw | 5 |
| 5 | 51.90001-0245 | hexagon screw M6X12-A2-70 | 4 |
| 6 | 50.06520-0047 | grease cap | 1 |
| 7 | 50.06506-0073 | Impeller | 1 |
| 8 | 51.06505-0065 | excentric water pump | 1 |
| 9 | 50.90101-0009 | pan-head screw 1/4"-20UNCX9,5-CUZN | 1 |
| 10 | 50.06520-0045 | wear plate | 1 |
| 11 | 51.06599-6088 | Axial face seal set | 1 |
| 12 | 50.90720-0142 | splash deflector | 1 |
| 13 | 50.06520-0044 | Coolant pump seal | 1 |
| 14 | 06.31480-7675 | ball bearing 3306-2Z | 1 |
| 15 | 50.90815-0021 | circlip | 1 |
| 16 | 51.06505-0064 | water pump shaft | 1 |
| 17 | 51.90501-0094 | hexagon nut | 1 |
| 18 | 50.97651-0030 | key | 1 |
| 19 | 50.90001-0114 | hexagon screw 5/16"-18UNCX3/4"-A2-SW1/2" | 4 |
| 20 | 50.90801-0070 | spring washer | 4 |
| 21 | 50.90720-0141 | washer | 1 |
| — | 50.06599-6027 | Water pump repair kit | 1 |
Specifications
| Part number | 51.06500-7026 |
| Part no. (other formats) | 51.06500.7026 · 51065007026 |
| Engine model | D2866, D2876, D2848, D2840, D2676, D2842 |
| Previous part no. | — |
| Weight (kg) | 8.1 |
| Dimensions (mm) | 200 × 130 × 230 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
