Raw water pump
MAN Raw Water Pump 51.06500-7035
Genuine MAN raw water (sea water) pump for D2840, D2842 marine diesel engines.
Raw water pump51.06500-7035
Engine modelD2840, D2842
Previous part no.51.06500-7025
Weight10.8 kg
Dimensions155 × 125 × 332 mm
Country of originSweden
Warranty2 years
Genuine OEM · dispatched same day

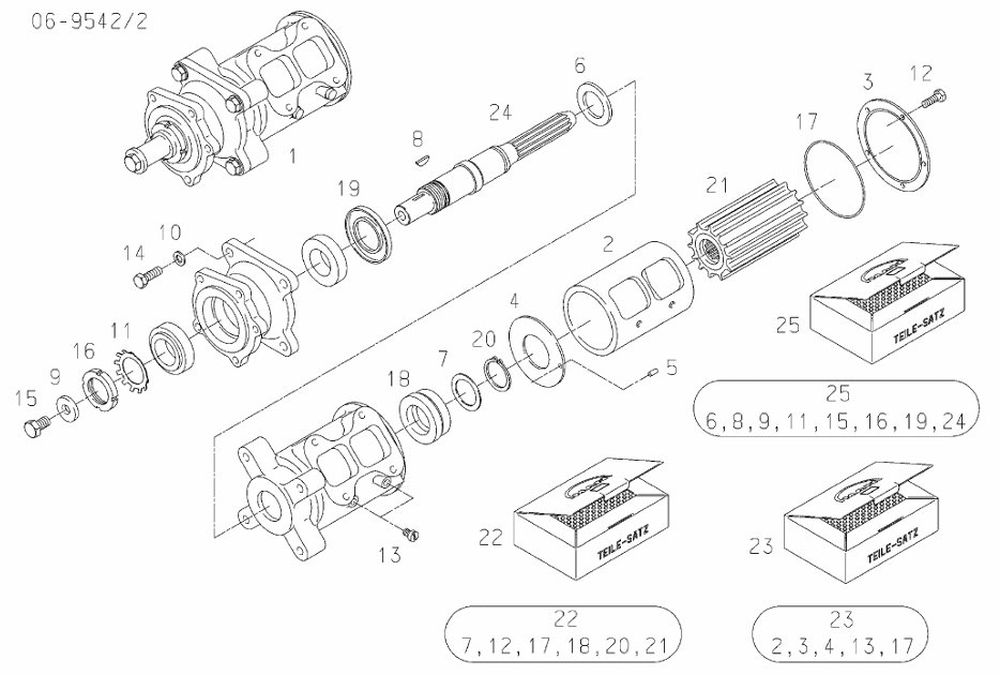

Components
Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0187).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-7035 | raw water pump | 1 |
| 2 | 51.06501-0266 | excentric | 1 |
| 3 | 51.06512-0037 | cover raw water pump | 1 |
| 4 | 50.06520-0062 | wear plate | 1 |
| 4 | 51.06520-0115 | wear plate | 1 |
| 5 | 51.91301-0103 | pin | 1 |
| 6 | 51.96003-0013 | sealing washer | 1 |
| 7 | 51.90710-0429 | washer | 1 |
| 8 | 50.97651-0032 | key | 1 |
| 9 | 51.90710-0430 | washer | 1 |
| 10 | 06.16731-6109 | spring washer A12-A3C | 4 |
| 10 | 06.16739-0013 | spring washer A12-MAN183-B1 | 4 |
| 11 | 51.90801-0082 | lock washer | 1 |
| 12 | 06.01325-1110 | hexagon screw M6X12-A4-70 | 5 |
| 13 | 51.90030-0078 | cylinder screw M8X25-CU82AL10NI4FE4 | 2 |
| 14 | 06.01283-5215 | hexagon screw M10X25-8.8-MAN183-B1 | 4 |
| 15 | 06.01283-5313 | hexagon screw M12X20-8.8-MAN183-B1 | 1 |
| 16 | 51.90620-0013 | grooved nut M35 X 1,5 | 1 |
| 17 | 06.56930-3076 | O-ring 90X2,5N-NBR3-70 | 1 |
| 18 | 51.06520-0088 | Axial face seal | 1 |
| 19 | 51.06520-0083 | radial shaft seal 40X72X7-NBR | 1 |
| 20 | 51.90820-0001 | circlip | 1 |
| 21 | 51.06506-0106 | Impeller | 1 |
| 22 | 51.06599-6071 | Water pump repair kit | 1 |
| 23 | 51.06599-6072 | Water pump repair kit for raw water pump | 1 |
| 24 | 51.06505-0077 | water pump shaft | 1 |
| 25 | 51.06599-6073 | parts kit raw water pump | 1 |
Specifications
| Part number | 51.06500-7035 |
| Part no. (other formats) | 51.06500.7035 · 51065007035 |
| Engine model | D2840, D2842 |
| Previous part no. | 51.06500-7025 |
| Weight (kg) | 10.8 |
| Dimensions (mm) | 155 × 125 × 332 |
| Country of origin | Sweden |
| Warranty | 2 years |
| Availability | In stock |
