Raw water pump

MAN Raw Water Pump 51.06500-7039

Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.

Request a quote Back to all pumps
Raw water pump51.06500-7039
In stock
Engine modelD2866
Previous part no.51.06500-6351
Weight11.098 kg
Dimensions155 × 152 × 300 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day

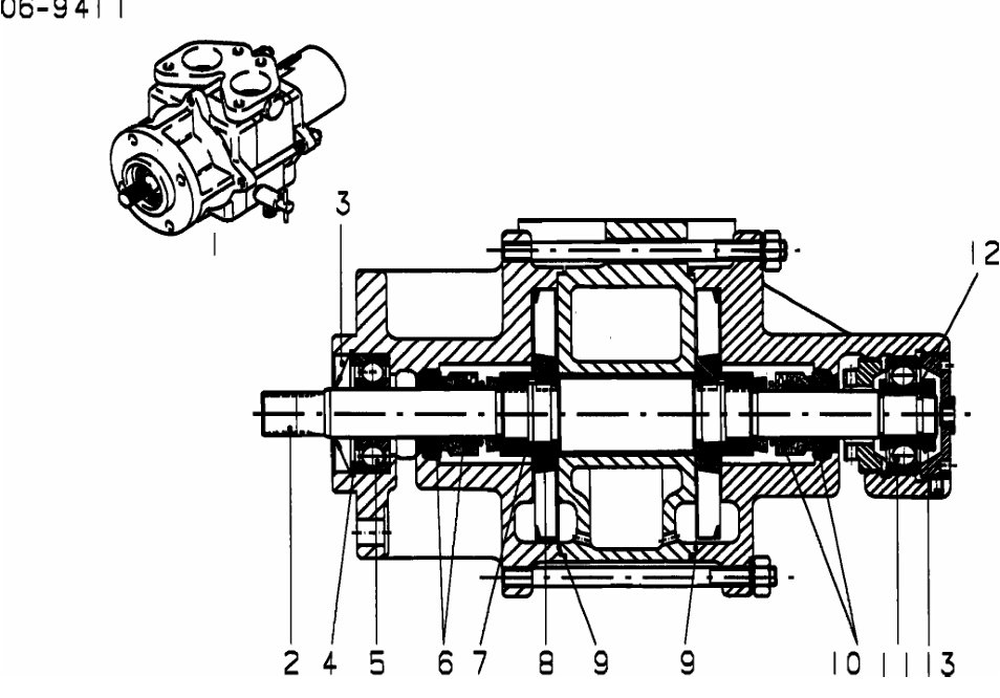

MAN raw water pump 51.06500-7039 exploded parts diagram with numbered components
Exploded view, MAN raw water pump 51.06500-7039. Numbers correspond to the components list below.

Components

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0037).

PosItem numberName / RemarksQty
151.06500-6351raw water pump1
151.06500-7039raw water pump1
-51.98125-0003drain valve raw water pump1
251.06505-0058drive shaft1
251.06505-0073drive shaft raw water pump1
351.96501-0407radial shaft seal 20X47X7-NB1
406.29020-0128circlip 47X1,75-ZNPHR5F1
551.93410-0015ball bearing 6204-2RSRZ27YC31
651.06520-0056Axial face seal1
751.90801-0075lock washer2
851.06506-0082Impeller2
951.06901-0093Coolant pump seal2
951.06901-0094Coolant pump seal2
1051.06520-0055Axial face seal1
1106.31460-0402ball bearing 6303-ZC31
1251.90801-0076lock washer1
1351.90685-0023hexagon nut M17X1-51

Specifications

Part number51.06500-7039
Part no. (other formats)51.06500.7039 · 51065007039
Engine modelD2866
Previous part no.51.06500-6351
Weight (kg)11.098
Dimensions (mm)155 × 152 × 300
Country of originGermany
Warranty2 years
AvailabilityIn stock
