Raw water pump

MAN Raw Water Pump 51.06500-7042

Name: MAN Raw Water Pump 51.06500-7042
Brand: MAN
Availability: InStock

Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.

Raw water pump51.06500-7042

In stock

Engine modelD0836

Previous part no.—

Weight7.11 kg

Dimensions185 × 240 × 235 mm

Country of originGermany

Warranty2 years

Genuine OEM · dispatched same day

Components

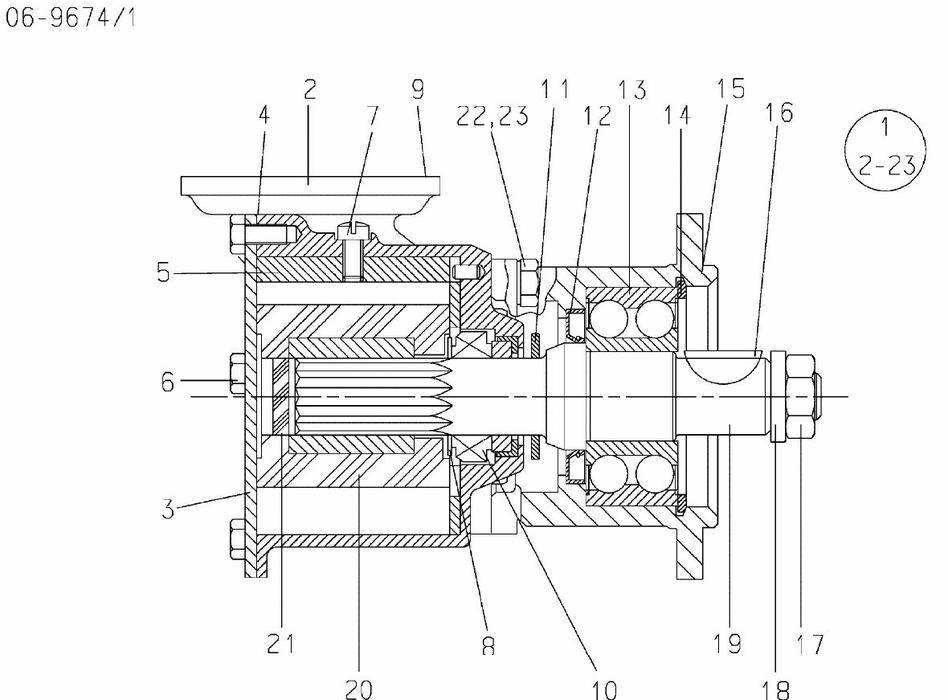

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0367).

Pos	Item number	Name / Remarks	Qty
1	51.06500-7042	raw water pump	1
2	51.06501-0311	water pump housing	1
3	50.06512-0028	cover raw water pump 5-hole	1
3	51.06512-0045	cover raw water pump 4-hole	1
4	50.06901-0086	Coolant pump seal	1
4	51.96501-0580	seal	1
5	51.06520-0098	excentric	1
6	51.90001-0228	hexagon screw	5
6	51.90001-0245	hexagon screw M6X12-A2-70	4
7	50.90101-0008	pan-head screw 1/4"-20UNCX12,7-CUZN	1
8	51.90710-0457	washer	1
9	50.06520-0045	wear plate	1
10	51.06520-0097	Axial face seal	1
—	51.06599-6088	Axial face seal set	1
11	50.90720-0142	splash deflector	1
12	50.06520-0044	Coolant pump seal	1
13	50.93410-0062	ball bearing	1
14	50.90815-0021	circlip	1
15	50.06501-0175	gear carrier raw water pump	1
16	50.97651-0030	key	1
17	51.90501-0094	hexagon nut	1
18	50.90720-0141	washer	1
19	51.06505-0075	drive shaft raw water pump	1
20	51.06506-0122	Impeller	1
21	50.06520-0047	grease cap	1
22	50.90001-0114	hexagon screw 5/16"-18UNCX3/4"-A2-SW1/2"	4
23	50.90801-0070	spring washer	4
—	51.06512-0045	cover raw water pump 4-hole	1
