Raw water pump
MAN Raw Water Pump 51.06500-7046
Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.
Raw water pump51.06500-7046
Engine modelD2840, D2842
Previous part no.—
Weight21 kg
Dimensions240 × 205 × 250 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

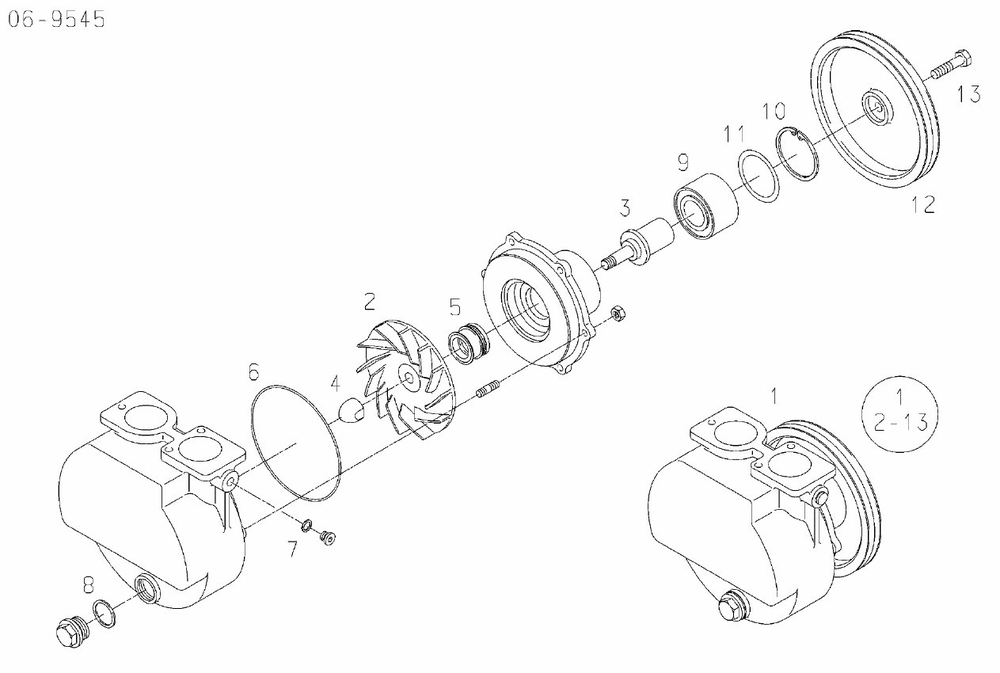

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0296).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-7046 | raw water pump | 1 |
| 2 | 51.06506-0113 | Impeller | 1 |
| 3 | 51.06505-0071 | drive shaft | 1 |
| 4 | 51.90685-0039 | tensioning nut | 1 |
| 5 | 51.06520-6016 | Axial face seal | 1 |
| 6 | 06.56341-0262 | O-ring 160X3B-NBR3-70 | 1 |
| 7 | 06.56631-0237 | seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 7 | 06.56190-0712 | seal A18X22-CU | 1 |
| 8 | 06.56190-0736 | seal A33X39-CU | 1 |
| 9 | 51.93410-0119 | ball bearing 37X74X45-AD | 1 |
| 10 | 06.29020-0202 | circlip 75X2,50-ZNPHR5F | 1 |
| 11 | 06.15114-0139 | shim ring 60X75X0,1 | 1 |
| 12 | 51.06503-0367 | V-belt pulley | 1 |
| 13 | 06.01284-3350 | hexagon screw M12X50-10.9-MAN183-A3C | 1 |
Specifications
| Part number | 51.06500-7046 |
| Part no. (other formats) | 51.06500.7046 · 51065007046 |
| Engine model | D2840, D2842 |
| Previous part no. | — |
| Weight (kg) | 21 |
| Dimensions (mm) | 240 × 205 × 250 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
