Raw water pump
MAN Raw Water Pump 51.06500-7140
Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.
Raw water pump51.06500-7140
Engine modelD2862, D3872
Previous part no.51.06500-7084
Weight16.543 kg
Dimensions240 × 155 × 340 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

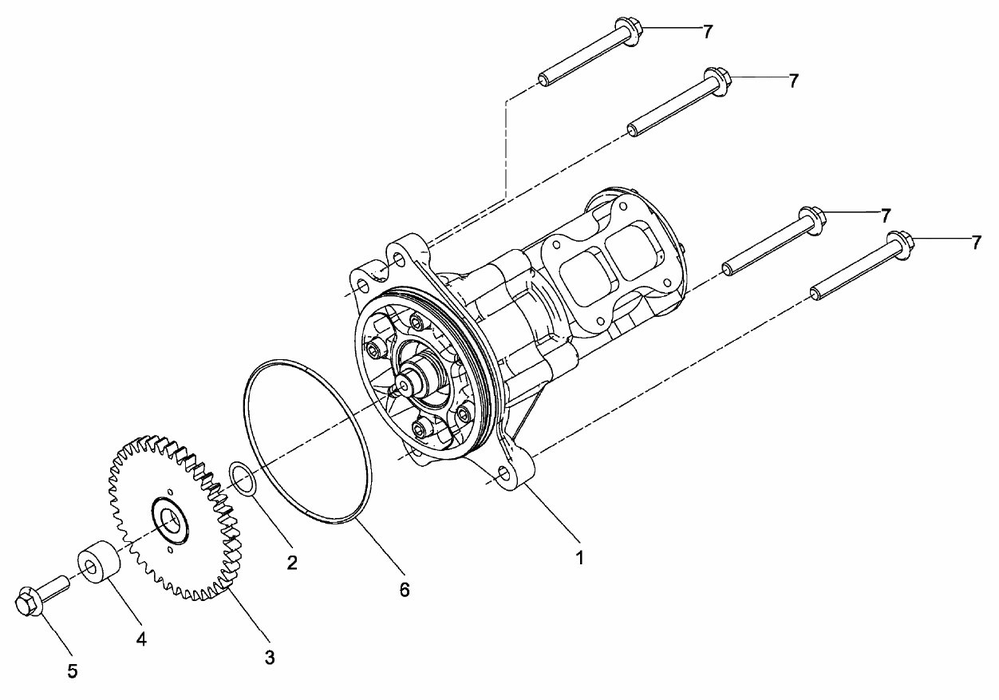

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0330).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-7074 | raw water pump | 1 |
| 1 | 51.06500-7084 | raw water pump | 1 |
| 1 | 51.06500-7140 | raw water pump | 1 |
| 2 | 51.06507-0015 | thrust washer 23,5X32X0,1-C75S | 1 |
| 3 | 51.06507-0018 | drive gear coolant pump Z-40 | 1 |
| 4 | 51.91701-0539 | bush 12,5X30X20,6-ST35NBK | 1 |
| 4 | 51.93030-0198 | bush 12,5X30X20,6 | 1 |
| 5 | 06.03216-8508 | hex flange bolt M12X40-10.9-MAN183-B1 | 1 |
| 6 | 51.96501-0746 | O-ring 144X4-FPM70-2 | 1 |
| 7 | 06.03216-8516 | hex flange bolt M12X90-10.9-MAN183-B1 | 4 |
Specifications
| Part number | 51.06500-7140 |
| Part no. (other formats) | 51.06500.7140 · 51065007140 |
| Engine model | D2862, D3872 |
| Previous part no. | 51.06500-7084 |
| Weight (kg) | 16.543 |
| Dimensions (mm) | 240 × 155 × 340 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
