Tube bundle
MAN Tube Bundle 51.06109-0041
Genuine MAN heat exchanger tube bundle for D2866 and D2876 marine diesel engines — the cooling core inside the engine's water-cooled heat exchanger.
Tube bundle51.06109-0041
Engine modelD2866, D2876
Previous part no.51.06109-0044
Weight11.187 kg
Dimensions157 × 157 × 900 mm
Country of originFrance
Warranty2 years
Genuine OEM · dispatched same day
Components

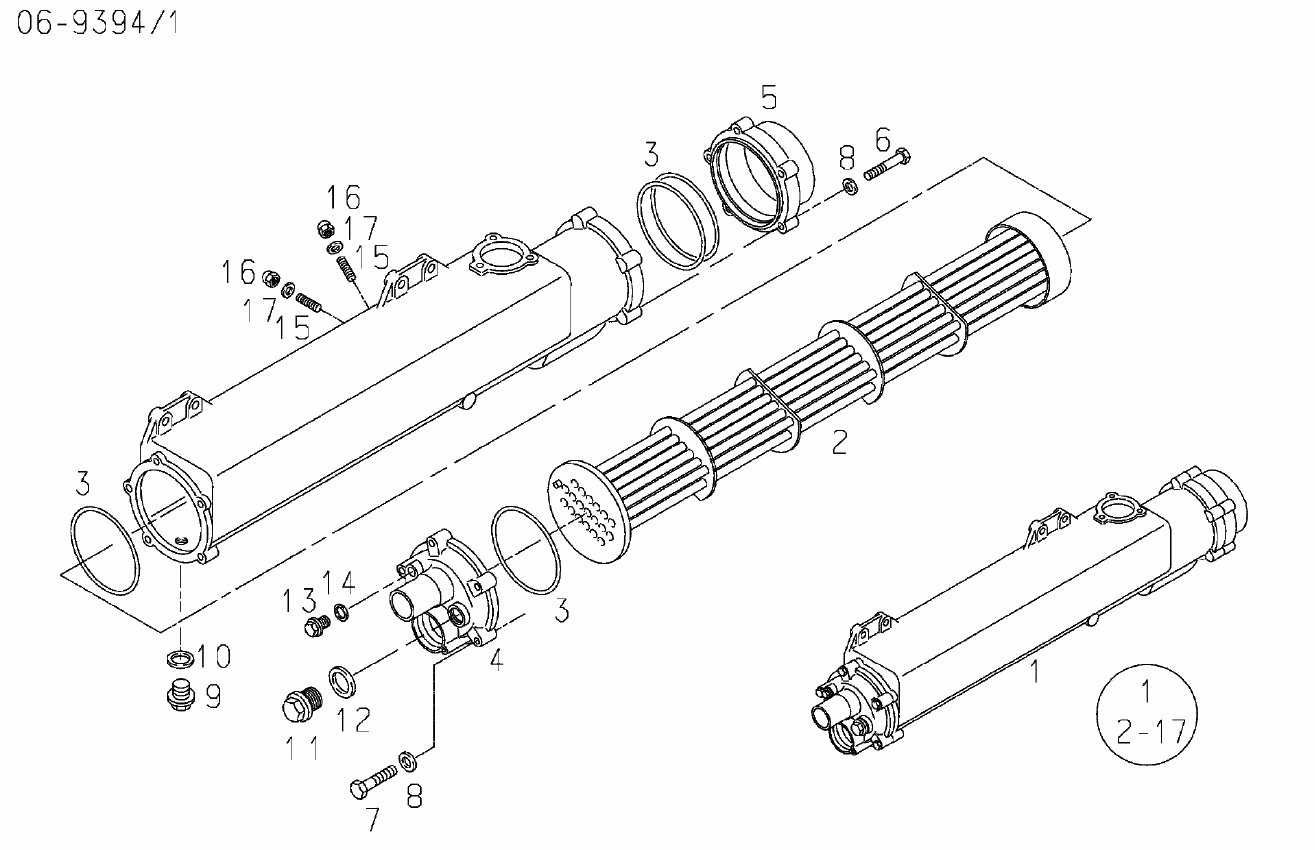

Parts contained in this heat exchanger assembly, per the MAN parts catalogue (reference 51.#0140-0467, drawing 06-9394/1). This tube bundle is position 2.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06101-7149 | heat exchanger assembly (03.96) | 1 |
| 1 | 51.06101-7161 | heat exchanger assembly (36.96) | 1 |
| 1 | 51.06101-7162 | heat exchanger assembly (03.97) | 1 |
| 1 | 51.06101-7161 | heat exchanger assembly (31.97) | 1 |
| 1 | 51.06101-7162 | heat exchanger assembly | 1 |
| 2 | 51.06109-0041 | tube bundle | 1 |
| 3 | 06.56930-3799 | O-ring 132X5-NBR3-70 | 4 |
| 4 | 51.06112-0006 | cover (03.96) | 1 |
| 4 | 51.06112-0013 | cover | 1 |
| 5 | 51.06112-0005 | reversing chamber | 1 |
| 6 | 06.01283-5120 | hexagon screw M8X45-8.8-MAN183-B1 | 5 |
| 7 | 06.01283-5123 | hexagon screw M8X60-8.8-MAN183-B1 | 5 |
| 8 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 10 |
| 9 | 51.90310-0241 | drain plug M14X1,5X9-CUZN39PB3-SW19 | 1 |
| 10 | 06.56190-0706 | seal A14X20-CU | 1 |
| 11 | 06.08066-0150 | drain plug G3/4"A-CUZN | 1 |
| 12 | 06.56190-0729 | seal A27X32-CU | 1 |
| 13 | 06.08062-0203 | drain plug M14X1,5-ST-ZNPHR3F | 1 |
| 14 | 06.56190-0706 | seal A14X20-CU | 1 |
Specifications
| Part number | 51.06109-0041 |
| Part no. (other formats) | 51.06109.0041 · 51061090041 |
| Engine model |
|
| Previous part no. | 51.06109-0044 |
| Weight (kg) | 11.187 |
| Dimensions (mm) | 157 × 157 × 900 |
| Country of origin | France |
| Warranty | 2 years |
| Availability | In stock |
