MAN Turbocharger 51.09100-7216

Genuine MAN turbocharger for D2866 LE/LXE20/30/40/47 marine diesel engines.

Request a quote Back to all turbochargers
Turbocharger51.09100-7216
In stock
Engine modelD2866 LE/LXE20/30/40/47
Weight25 kg
Dimensions280 × 250 × 330 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day

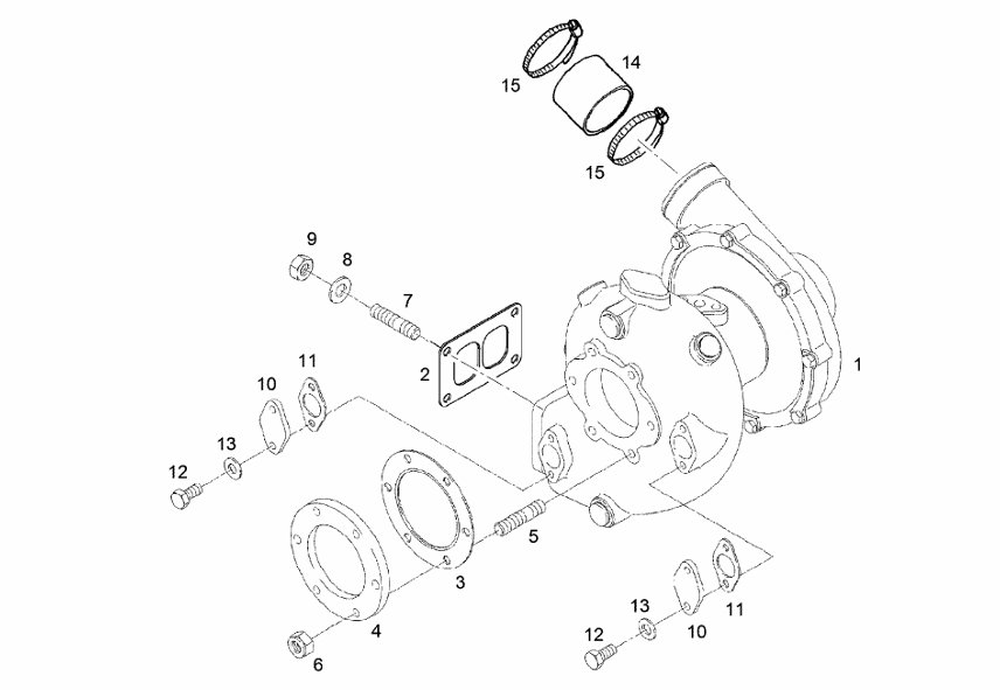

MAN turbocharger 51.09100-7216 exploded parts diagram with numbered components
Exploded view — MAN turbocharger 51.09100-7216. Numbers correspond to the components list below.

Components

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0070-0092).

PosItem numberName / RemarksQty
151.09100-7216turbocharger1
—51.96501-0588O-ring 210X31
251.08901-0150Turbo charger seal1
—51.08901-0096gasket1
450.98112-2384flange1
551.90201-0173stud M10X30-GA-WARMFEST-C3J6
606.11241-0306hex lock nut AM10-10-MAN183-B16
706.06225-0810stud M10X40-8.84
806.15013-0412washer 10X20X2-200HV-MAN183-B14
906.11064-2115hexagon nut M10-8-MAN183-B14
1051.98112-0144rivetted flange2
1106.56254-2203gasket 26X48X1,0-AFOE2-M32192
1206.01283-5111hexagon screw M8X16-8.8-MAN183-B14
1306.15015-0411washer 8X16X1,6-300HV-MAN183-B14
—51.96330-0340hose 75X100-51
—06.67128-0529hose clamp S70-902

Specifications

Part number51.09100-7216
Part no. (other formats)51.09100.7216 · 51091007216
Engine modelD2866 LE/LXE20/30/40/47
Weight (kg)25
Dimensions (mm)280 × 250 × 330
Country of originGermany
Warranty2 years
AvailabilityIn stock

Need this turbocharger? Request a quote.

Send your engine model and serial number and we'll confirm fitment and price fast.

Request a quote
