MAN Turbocharger 51.09101-7323

Genuine MAN turbocharger (right bank) for D2862 LE3../LE4.. marine diesel engines.

Request a quote Back to all turbochargers
Turbocharger · right51.09101-7323
In stock
Engine modelD2862 LE3../LE4..
Weight25.8 kg
Dimensions318 × 275 × 395 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day

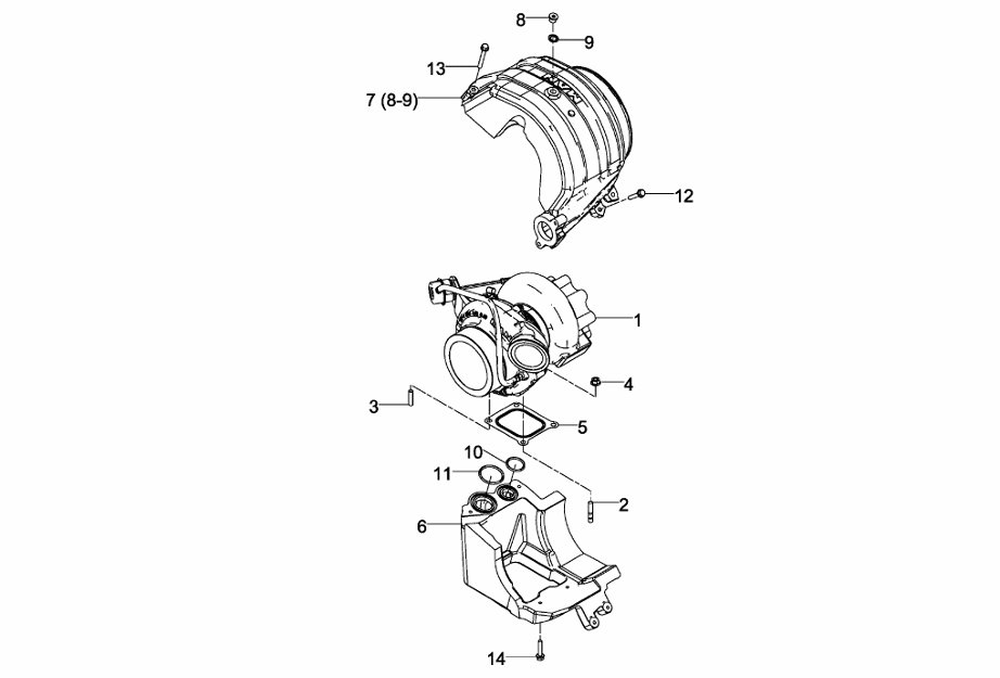

MAN turbocharger 51.09101-7323 exploded parts diagram with numbered components
Exploded view — MAN turbocharger 51.09101-7323. Numbers correspond to the components list below.

Components

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0070-0921).

PosItem numberName / RemarksQty
151.09101-7323turbocharger right1
251.90201-0255stud M10X40-SD-HOCHWARMFEST2
351.90201-0251stud M10X25-SD-HOCHWARMFEST2
406.11229-0023hex collar nut M10-GA-SW15-C3J4
551.08901-0347gasket1
651.09141-6021shell lower turbocharger1
751.09141-6022shell upper turbocharger1
806.08049-0045drain plug M14X1,5-ST-MAN183-B11
906.56631-0235seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip1
1006.56937-1686O-ring 34X4N-FPM2-701
1106.56937-2168O-ring 48X4N-FPM2-701
1206.03216-8309hex flange bolt M8X45-10.9-MAN183-B12
1306.03216-8312hex flange bolt M8X60-10.9-MAN183-B12
1406.03215-8308hex flange bolt M8X40-8.8-MAN183-B14

Specifications

Part number51.09101-7323
Part no. (other formats)51.09101.7323 · 51091017323
Engine modelD2862 LE3../LE4..
Weight (kg)25.8
Dimensions (mm)318 × 275 × 395
Country of originGermany
Warranty2 years
AvailabilityIn stock

Need this turbocharger? Request a quote.

Send your engine model and serial number and we'll confirm fitment and price fast.
