Turbocharger
MAN Turbocharger 51.09100-7829
Genuine MAN turbocharger for D2862 LE3../LE4.. marine diesel engines.
Turbocharger51.09100-7829
Engine modelD2862 LE3../LE4..
Weight31.65 kg
Dimensions300 × 280 × 335 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

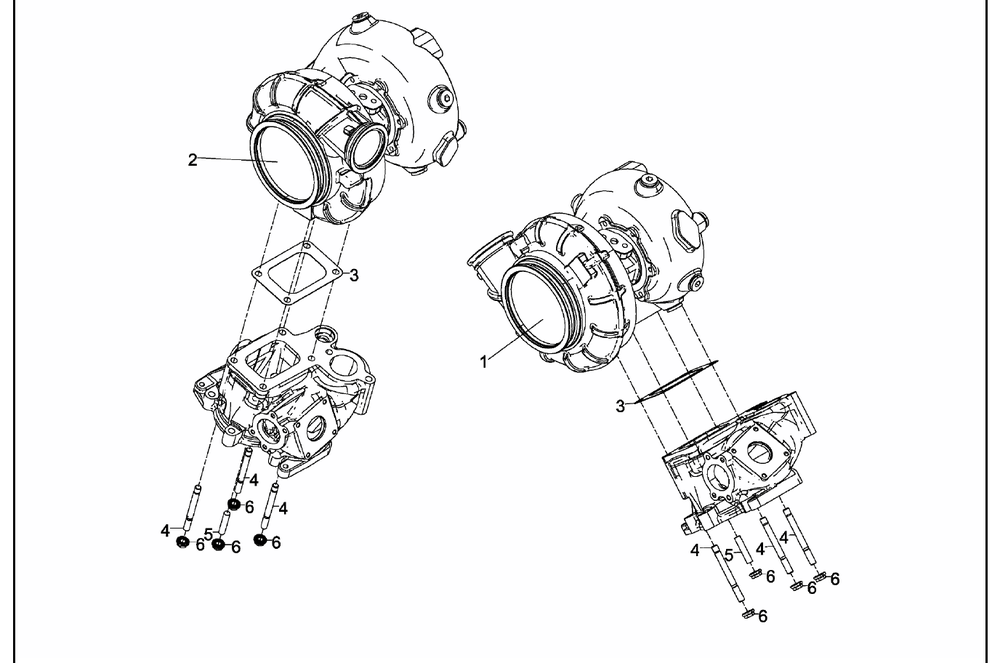

Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0070-0597). This MAN reference lists both turbochargers of the set (positions 1 and 2).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.09100-7829 | turbocharger | 1 |
| 2 | 51.09100-7830 | turbocharger | 1 |
| 3 | 51.08901-0041 | gasket | 2 |
| 4 | 06.06225-0820 | stud M10X90-8.8 | 6 |
| 5 | 06.06225-0809 | stud M10X35-8.8 | 2 |
| 6 | 06.11251-2001 | hex lock nut M10-10-MAN183-B1 | 8 |
Specifications
| Part number | 51.09100-7829 |
| Part no. (other formats) | 51.09100.7829 · 51091007829 |
| Engine model | D2862 LE3../LE4.. |
| Weight (kg) | 31.65 |
| Dimensions (mm) | 300 × 280 × 335 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
