Charging ยท group 090 0
Turbocharger

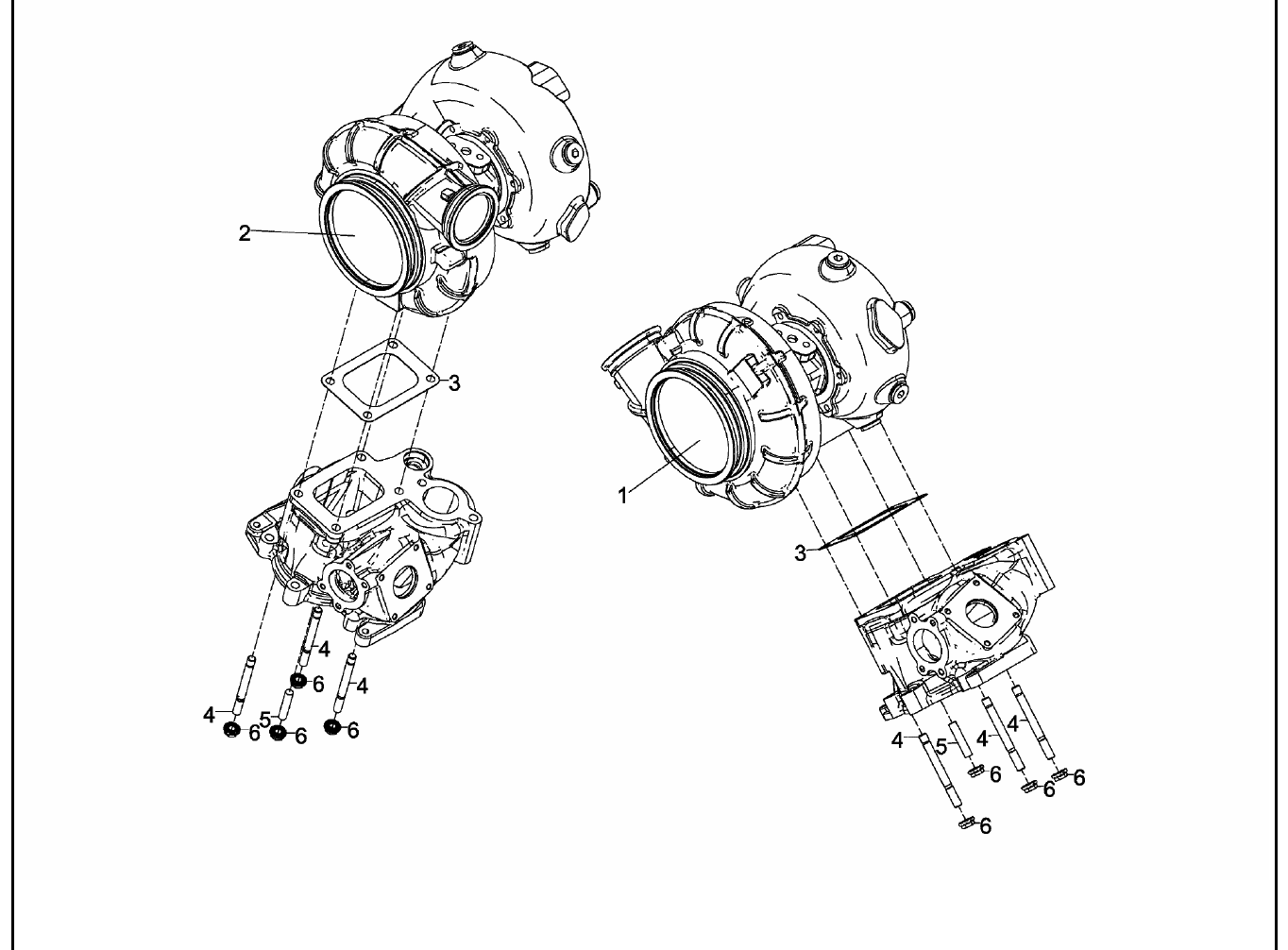

6 part numbers in this assembly of the MAN D2862 LE463. MAN reference 51.#0070-0597 turbocharger water cooled1 - stepD2862 LE423.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.09100-7829 | turbocharger | 1 | current |
| 2 | 51.09100-7830 | turbocharger | 1 | current |
| 3 | 51.08901-0041 | gasket | 2 | current |
| 4 | 06.06225-0820 | stud M10X90-8.8 | 6 | current |
| 5 | 06.06225-0809 | stud M10X35-8.8 | 2 | current |
| 6 | 06.11251-2001 | hex lock nut M10-10-MAN183-B1 | 8 | current |
