Crankshaft
MAN Crankshaft 51.02101-0764
Genuine MAN crankshaft for D2862 LE marine diesel engine family, machined and balanced to factory tolerances and supplied ready to fit.

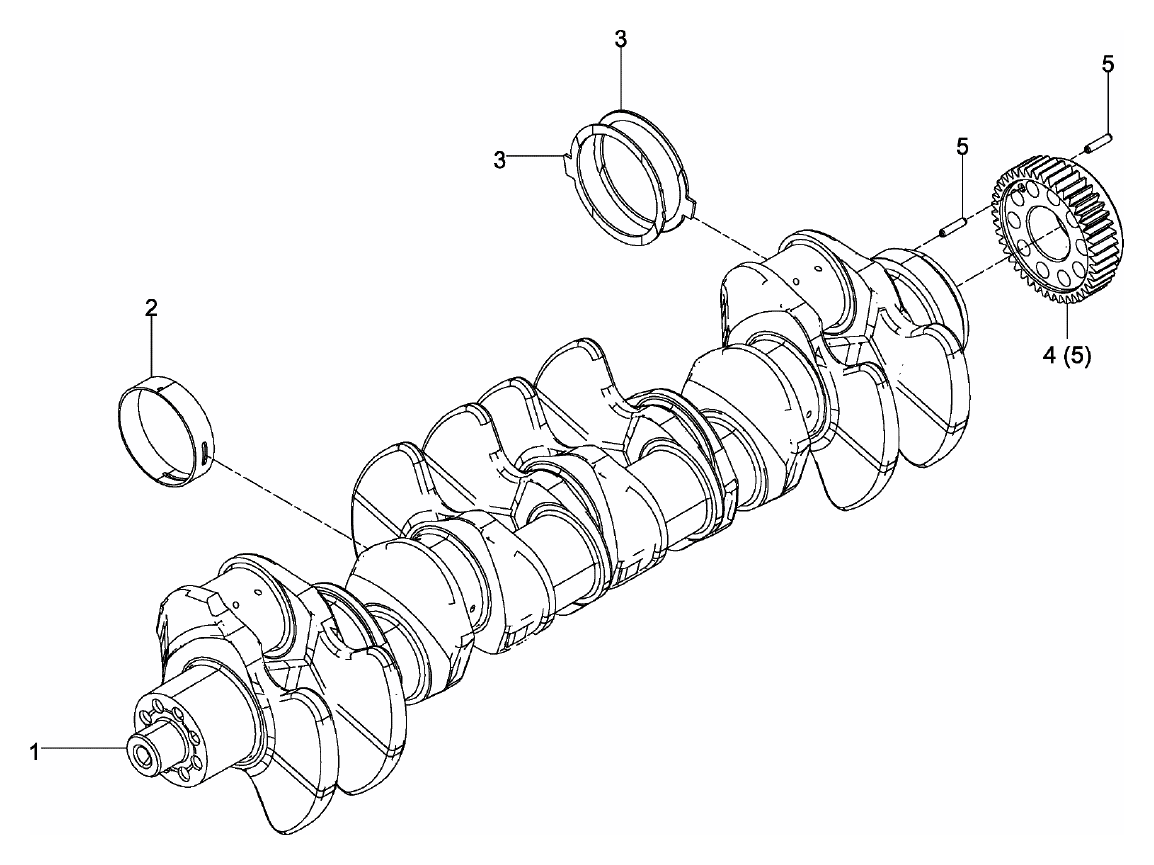

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Crankshaft51.02101-0764
Engine familyD2862 LE
Previous part no.51.02101-0672
51.02101-0716
51.02101-0713
51.02101-0716
51.02101-0713
Weight134.5 kg
Dimensions (W×L×H)23 × 120.6 × 23 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN crankshaft catalogue page for this engine (reference 51.#0190-0562). Item 1 is the crankshaft supplied here; the remaining items are the related bearings, thrust washers, timing gears and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.02101-0672 | crankshaft | 1 |
| 1 | 51.02101-0713 | crankshaft | 1 |
| 1 | 51.02101-0716 | Engine crankshaft | 1 |
| 1 | 51.02101-0764 | Engine crankshaft | 1 |
| 2 | 51.01113-6141 | main bearing normal sputtered | 7 |
| 2 | 50.01113-6002 | main bearing GESPUTTERT REP 0,25 | NB |
| 2 | 50.01113-6003 | main bearing GESPUTTERT REP 0,50 | NB |
| 2 | 50.01113-6004 | main bearing GESPUTTERT REP 0,75 | NB |
| 3 | 51.01114-6120 | thrust washer normal set | 2 |
| 3 | 51.01114-6124 | thrust washer repair stage 1 = 0,25 mm set | NB |
| 3 | 51.01114-6125 | thrust washer repair stage 2 = 0,50 mm set | NB |
| 3 | 51.01114-6126 | thrust washer repair stage 3 = 0,75 mm set | NB |
| 4 | 51.02115-6092 | timing gear - crankshaft | 1 |
| 4 | 51.02115-6115 | timing gear - crankshaft | 1 |
| 5 | 06.22220-1217 | spiral dowel pin 8X35-ST | 2 |
Specifications
| Part number | 51.02101-0764 |
| Part no. (other formats) | 51.02101.0764 · 51021010764 |
| Description | Engine crankshaft |
| Engine family | D2862 LE |
| Engine / application |
|
| Previous part no. |
|
| Weight (kg) | 134.5 |
| Dimensions W×L×H (cm) | 23 × 120.6 × 23 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
