Crankshaft
MAN Crankshaft 51.02101-0801
Genuine MAN crankshaft for D2676 LE marine diesel engine family, machined and balanced to factory tolerances and supplied ready to fit.

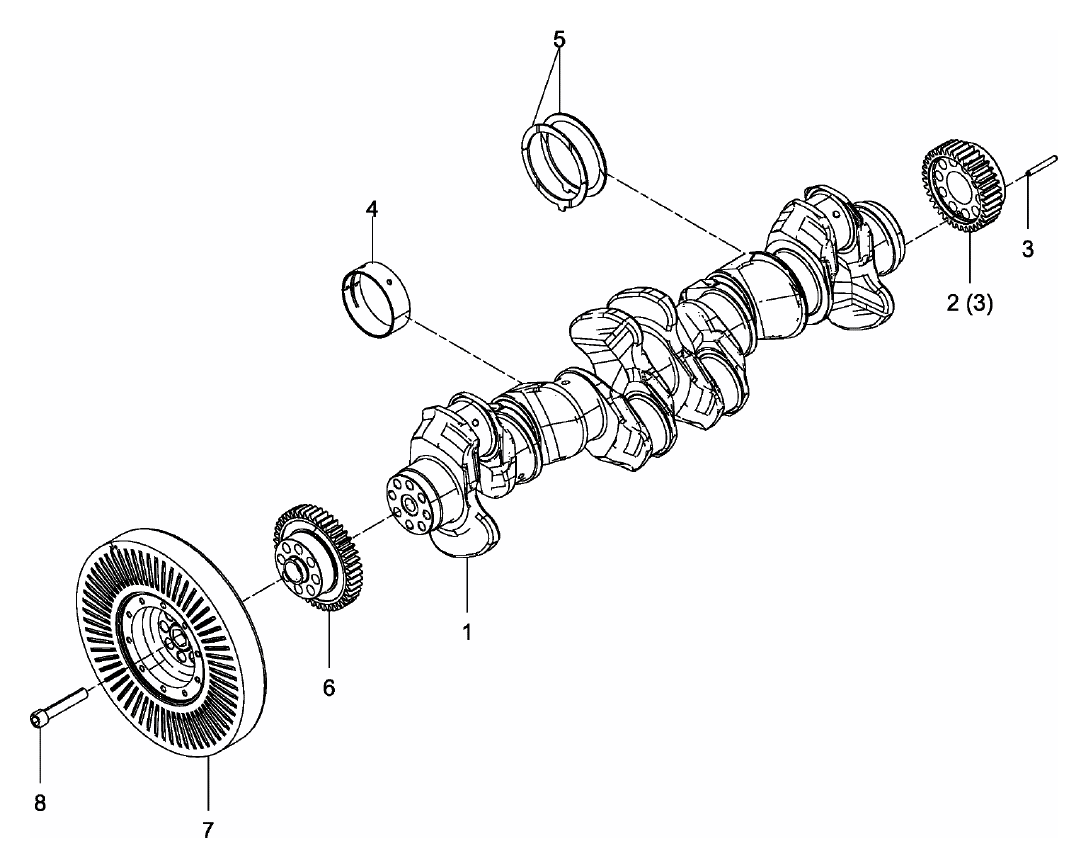

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Crankshaft51.02101-0801
Engine familyD2676 LE
Previous part no.51.02101-0803
51.02101-0834
51.02101-0859
51.02101-0632
51.02101-0834
51.02101-0859
51.02101-0632
Weight107.161 kg
Dimensions (W×L×H)28 × 98 × 28 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN crankshaft catalogue page for this engine (reference 51.#0190-0559). Item 1 is the crankshaft supplied here; the remaining items are the related bearings, thrust washers, timing gears and fixings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.02101-0632 | crankshaft | 1 |
| 1 | 51.02101-0801 | Engine crankshaft | 1 |
| 1 | 51.02101-0834 | Engine crankshaft WW-0801/-0803 | 1 |
| 2 | 51.02115-6094 | timing gear - crankshaft flywheel | 1 |
| 2 | 51.02115-6112 | timing gear - crankshaft flywheel | 1 |
| 3 | 06.22220-1222 | spiral dowel pin 8X60-ST | 1 |
| 4 | 51.01113-6082 | main bearing normal | 7 |
| 5 | 51.01114-6110 | thrust washer assembly normal | 2 |
| 5 | 51.01114-6116 | thrust washer set | 2 |
| 6 | 51.02115-0278 | timing gear - crankshaft opposite flywheel end | 1 |
| 6 | 51.02115-0282 | timing gear - crankshaft opposite flywheel end | 1 |
| 7 | 51.02200-6023 | crankshaft vibration damper | 1 |
| 7 | 51.02200-6047 | crankshaft vibration damper | 1 |
| 7 | 51.02200-6054 | crankshaft vibration damper | 1 |
| 8 | 06.02099-0417 | cylinder screw M16X1,5X90-10.9-MAN183-B1 with hexagon socket | 8 |
Specifications
| Part number | 51.02101-0801 |
| Part no. (other formats) | 51.02101.0801 · 51021010801 |
| Description | Engine crankshaft |
| Engine family | D2676 LE |
| Engine / application |
|
| Previous part no. |
|
| Weight (kg) | 107.161 |
| Dimensions W×L×H (cm) | 28 × 98 × 28 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
