Cylinder head ยท group 030 0

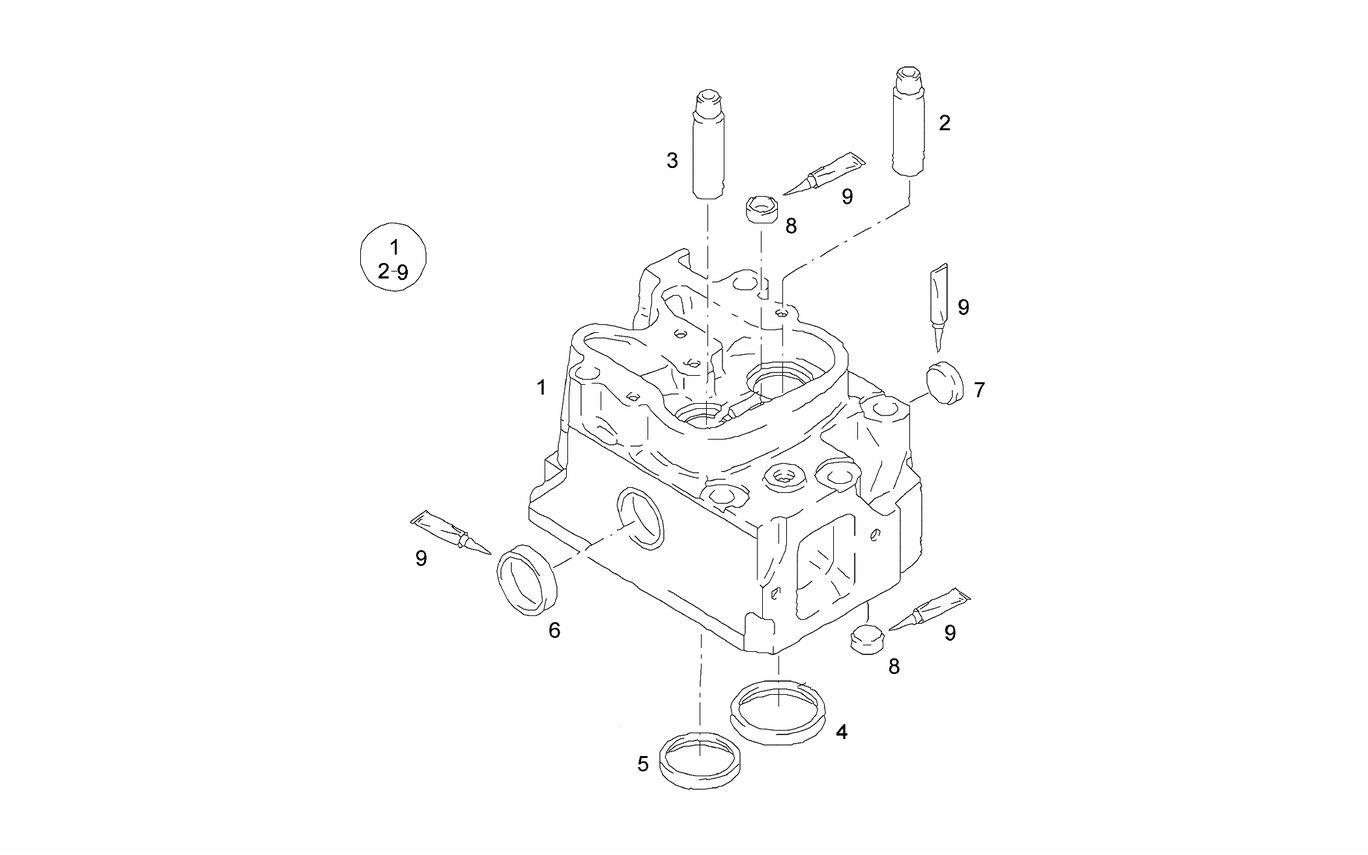

Cylinder head components
10 part numbers in this assembly of the MAN D2842 LE301. MAN reference 51.#0010-0579 engineD2842 LE301.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.03101-6773 | cylinder head assembly | 12 | superseded → 51.03100-6131 |
| 1 | 51.03100-6702 | cylinder head | 12 | superseded → 51.03100-6131 |
| 2 | 51.03201-0088 | valve guide normal | 12 | current |
| 3 | 51.03201-0102 | valve guide exhaust 18,00 MM normal | 12 | current |
| 4 | 51.03203-0293 | valve seat ring intake 61,11 MM normal | 12 | current |
| 5 | 51.03203-0184 | valve seat ring exhaust 53,11 | 12 | current |
| 6 | 51.91606-0037 | cover A40,3/14,5-X5CRNI1810N | 12 | current |
| 7 | 51.91606-0041 | cover A22,2/7,5-X5CRNI1810N | 12 | current |
| 8 | 06.15094-4113 | cover B20/6-X5CRNI1810 | 24 | current |
| 9 | 04.10160-9164 | adhesive LOCTITE648-FL50ML bottle | NB | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.03101-6773 | cylinder head assembly | 51.03100-6131 |
| 51.03100-6702 | cylinder head | 51.03100-6131 |
