Cylinder head ยท group 030 0
Cylinder head gasket cylinder head bolt

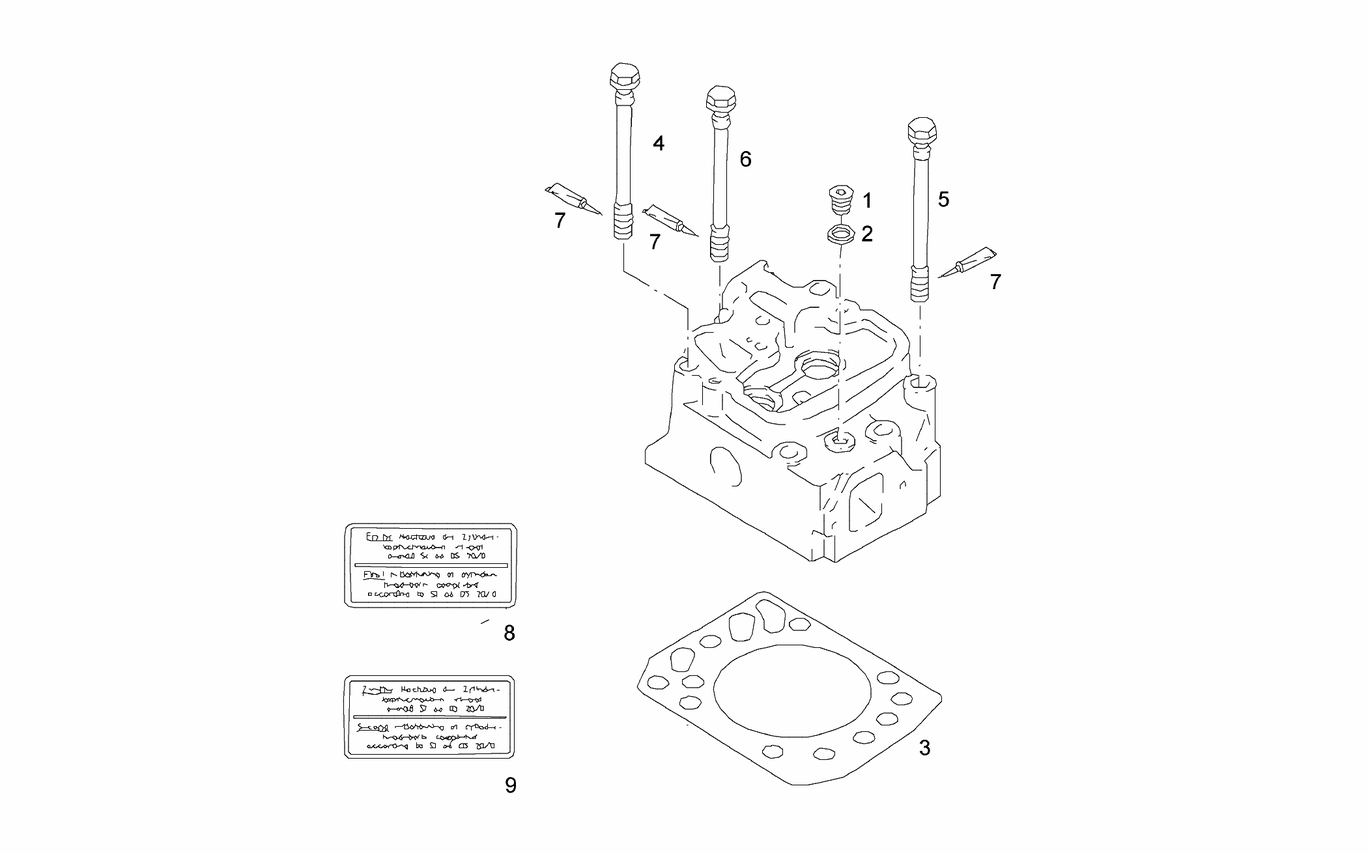

9 part numbers in this assembly of the MAN D2842 LE301. MAN reference 51.#0010-0579 engineD2842 LE301.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 06.08049-0045 | drain plug M14X1,5-ST-MAN183-B1 | 12 | current |
| 2 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 12 | current |
| 3 | 51.03901-0338 | cylinder head gasket | 12 | current |
| 4 | 51.90490-0022 | external hex round bolt M15X2X168-1200N/MM2-E20-ZNPHR3 | 24 | current |
| 5 | 51.90490-0023 | external hex round bolt M15X2X144-1200N/MM2-E20-ZNPHR3 | 36 | current |
| 6 | 51.90490-0024 | external hex round bolt M15X2X109-1200N/MM2-E20-ZNPHR3 | 12 | current |
| 7 | 09.16012-0117 | assembly paste 100 G tube | NB | superseded → 09.15011-0032 |
| 8 | 51.97801-0211 | adhesive label 75X35/KST-WS/RT-SW | 2 | current |
| 8 | 51.97801-0213 | adhesive label 75X35/KST-WS/RT-SW | 2 | current |
| deleted | ||||
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 09.16012-0117 | assembly paste 100 G tube | 09.15011-0032 |
