Injection nozzles and pipes ยท group 100 0
Injection line cylinders7-12 proof against leakage components

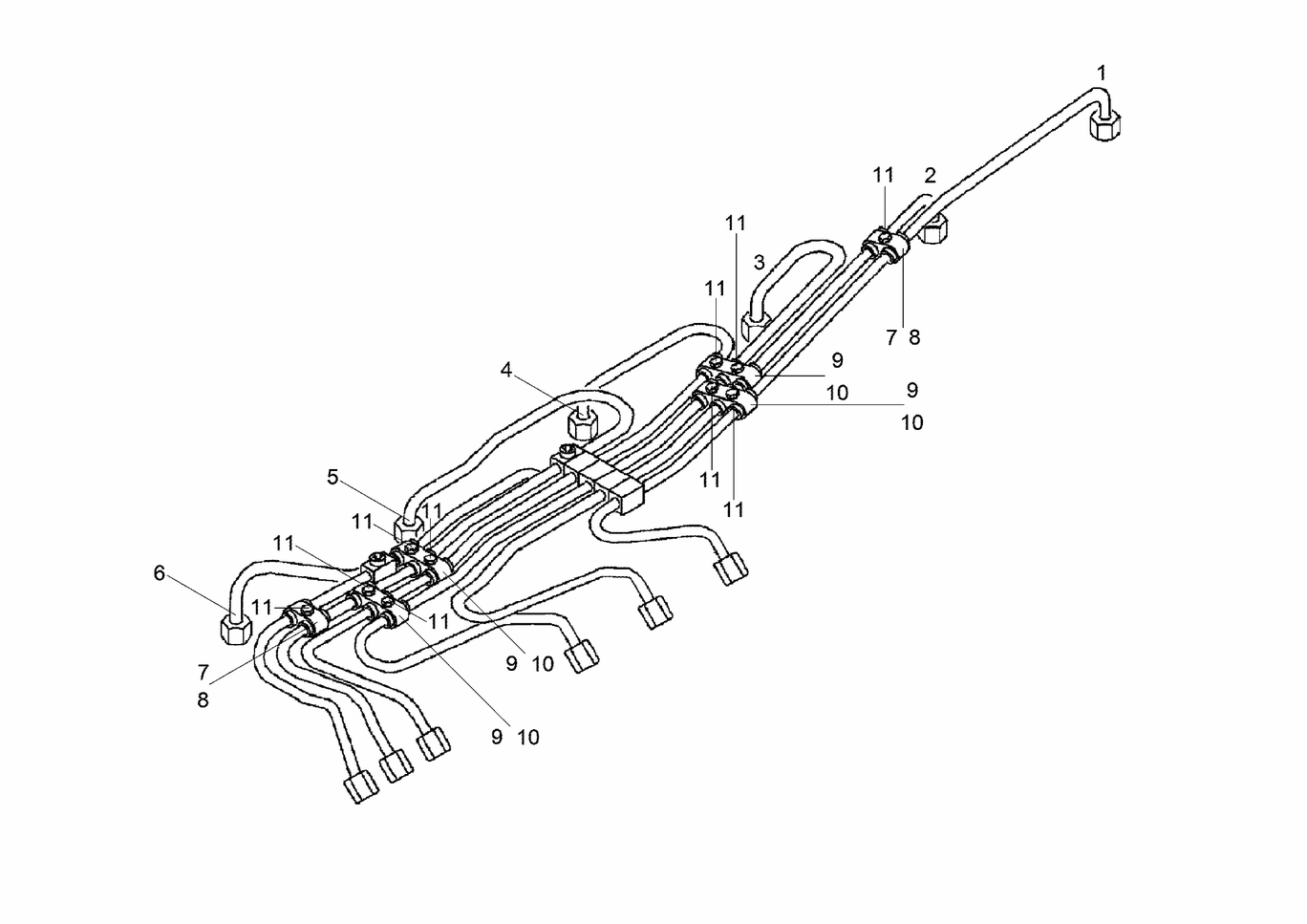

11 part numbers in this assembly of the MAN D2842 LE301. MAN reference 51.10300-6246 injection line set proof against leakage cylinders7-12.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.10304-0626 | injection line proof against leakage cylinder 7 | 1 | superseded → 51.10300-6246 |
| 2 | 51.10304-0627 | injection line proof against leakage cylinder 8 | 1 | superseded → 51.10300-6246 |
| 3 | 51.10304-0628 | injection line proof against leakage cylinder 9 | 1 | superseded → 51.10300-6246 |
| 4 | 51.10304-0629 | injection line proof against leakage cylinder 10 | 1 | superseded → 51.10300-6246 |
| 5 | 51.10304-0630 | injection line proof against leakage cylinder 11 | 1 | superseded → 51.10300-6246 |
| 6 | 51.10304-0631 | injection line proof against leakage cylinder 12 | 1 | superseded → 51.10300-6246 |
| 7 | 51.97401-0535 | clamp upper part | 2 | superseded → 51.97401-6026 |
| 8 | 51.97401-0536 | clamp lower part | 2 | superseded → 51.97401-6026 |
| 9 | 51.97401-0537 | clamp upper part | 4 | superseded → 51.97401-6025 |
| 10 | 51.97401-0538 | clamp lower part | 4 | superseded → 51.97401-6025 |
| 11 | 06.01283-4811 | hexagon screw M5X16-8.8-MAN183-B1 | 10 | superseded → 04.27199-1022 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.10304-0626 | injection line proof against leakage cylinder 7 | 51.10300-6246 |
| 51.10304-0627 | injection line proof against leakage cylinder 8 | 51.10300-6246 |
| 51.10304-0628 | injection line proof against leakage cylinder 9 | 51.10300-6246 |
| 51.10304-0629 | injection line proof against leakage cylinder 10 | 51.10300-6246 |
| 51.10304-0630 | injection line proof against leakage cylinder 11 | 51.10300-6246 |
| 51.10304-0631 | injection line proof against leakage cylinder 12 | 51.10300-6246 |
| 51.97401-0535 | clamp upper part | 51.97401-6026 |
| 51.97401-0536 | clamp lower part | 51.97401-6026 |
| 51.97401-0537 | clamp upper part | 51.97401-6025 |
| 51.97401-0538 | clamp lower part | 51.97401-6025 |
| 06.01283-4811 | hexagon screw M5X16-8.8-MAN183-B1 | 04.27199-1022 |
