Lighting, signals, switches, controls ยท group 250 0
Cable harness bracket
12 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0630-0151 mounting forLL - preheater+ oil pressure sender.

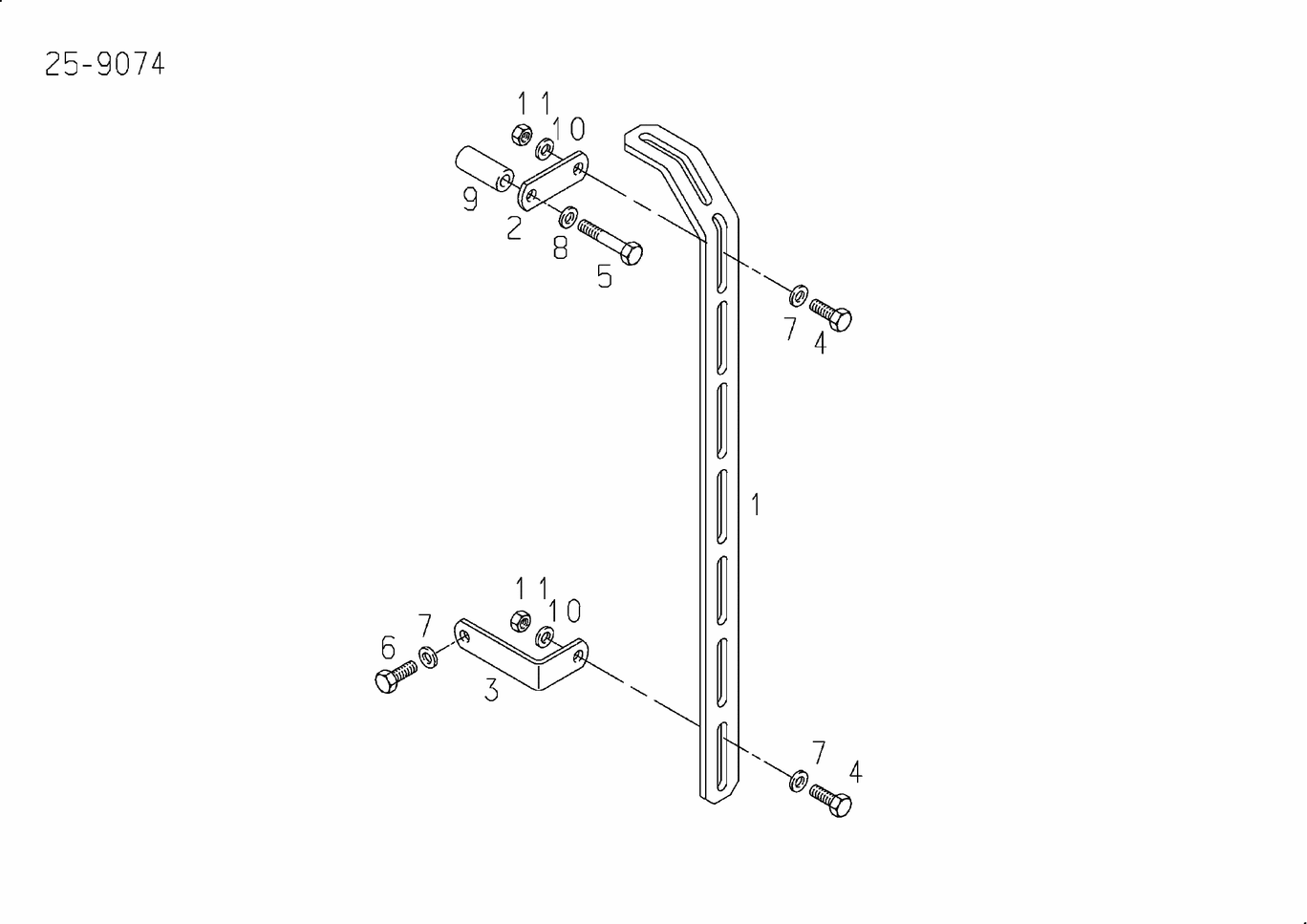

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.97485-0070 | bracket | 1 | current |
| 2 | 51.25441-0150 | bracket | 1 | current |
| 3 | 51.25441-0151 | bracket cable harness | 1 | current |
| 4 | 06.02140-0404 | countersunk screw M6X16-8.8-MAN183-B1 with hexagon socket | 2 | current |
| 5 | 06.01283-5119 | hexagon screw M8X40-8.8-MAN183-B1 | 1 | superseded → 06.01014-9125 |
| 5 | 06.01014-9125 | hex shoulder stud M8X100-10.9-MAN183-PHR | 1 | current |
| 6 | 06.01283-5213 | hexagon screw M10X20-8.8-MAN183-B1 | 1 | current |
| 7 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 3 | current |
| 8 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 1 | current |
| 9 | 51.93030-0277 | bush 9X18X20 | 1 | current |
| 10 | 06.15013-0409 | washer 6X12X1,6-200HV-MAN183-B1 | 2 | current |
| 11 | 06.11064-2112 | hexagon nut M6-8-MAN183-B1 | 2 | superseded → 06.11181-0112 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.01283-5119 | hexagon screw M8X40-8.8-MAN183-B1 | 06.01014-9125 |
| 06.11064-2112 | hexagon nut M6-8-MAN183-B1 | 06.11181-0112 |
