Lighting, signals, switches, controls ยท group 250 0
Cable harness gearbox mounting parts
11 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0630-0384 cable harness+ installation for gearboxZF 2...

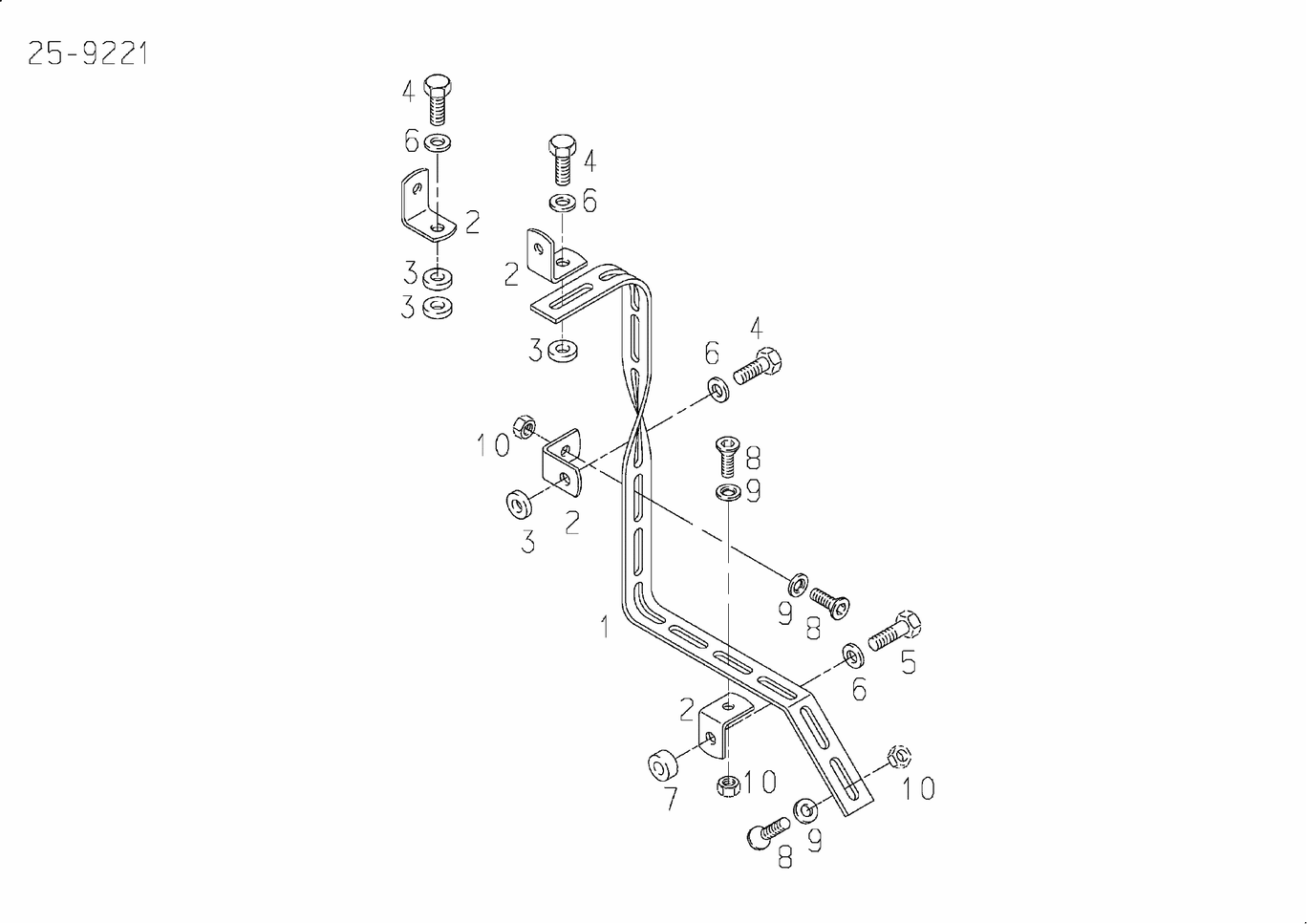

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25441-0368 | bracket for cable harnesses | 1 | current |
| 2 | 51.97485-0048 | bracket | 4 | current |
| 3 | 51.90710-0636 | washer 9X19X4 | 4 | current |
| 4 | 06.01329-0005 | hexagon screw M8X22-A2-80 | 3 | current |
| 5 | 06.01329-0011 | hexagon screw M8X30-A4-80 | 1 | current |
| 6 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 4 | current |
| 7 | 51.91701-0051 | bush 9X18X25,5-9SMNPB28K | 1 | superseded → 51.93030-0276 |
| 7 | 51.93030-0276 | bush 9X18X25,5 | 1 | current |
| 8 | 06.02140-0404 | countersunk screw M6X16-8.8-MAN183-B1 with hexagon socket | 3 | current |
| 9 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 3 | current |
| 10 | 06.11240-0303 | hex lock nut AM6-8-MAN183-B1 | 3 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.91701-0051 | bush 9X18X25,5-9SMNPB28K | 51.93030-0276 |
