Lighting, signals, switches, controls ยท group 250 0

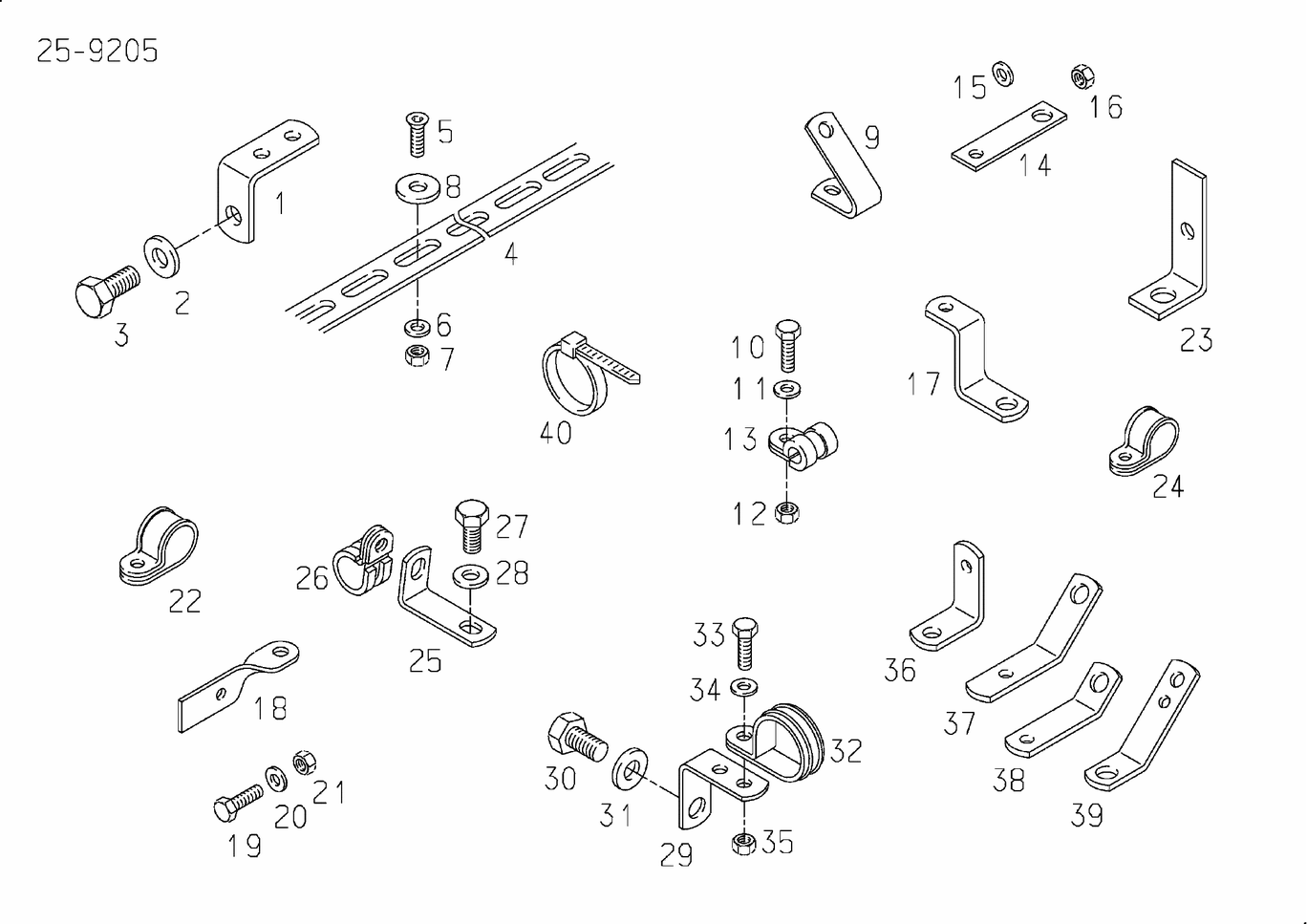

Cable harness mounting parts
23 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0630-0450 cable harness forEDC7 + MMDS D2842 LE4...
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.97480-0438 | bracket | 2 | superseded → 51.97480-0891 |
| deleted | ||||
| 4 | 51.25441-0360 | bracket for cable harnesses | 1 | current |
| 4 | 51.25441-0365 | bracket for cable harnesses | 1 | current |
| 4 | 51.25441-0369 | bracket for cable harnesses | 1 | superseded → 51.25441-0228 |
| deleted | ||||
| deleted | ||||
| 10 | 06.01283-4913 | hexagon screw M6X20-8.8-MAN183-B1 | 1 | current |
| 11 | 06.15193-0307 | washer 6,4X18X1,6-200HV-MAN183-B1 | 1 | current |
| 12 | 06.11240-0303 | hex lock nut AM6-8-MAN183-B1 | 1 | current |
| deleted | ||||
| deleted | ||||
| 18 | 51.97480-0892 | bracket | 1 | current |
| 81.97480-0760 | fish plate 80X20/2X11 | 1 | current | |
| 19 | 06.01283-4913 | hexagon screw M6X20-8.8-MAN183-B1 | 5 | current |
| 06.01283-4911 | hexagon screw M6X16-8.8-MAN183-B1 | 1 | current | |
| 20 | 06.15193-0307 | washer 6,4X18X1,6-200HV-MAN183-B1 | 7 | current |
| 06.15013-0409 | washer 6X12X1,6-200HV-MAN183-B1 | 1 | current | |
| 21 | 06.11240-0303 | hex lock nut AM6-8-MAN183-B1 | 6 | current |
| 06.11064-2112 | hexagon nut M6-8-MAN183-B1 | 1 | superseded → 06.11181-0112 | |
| 22 | 06.67840-0117 | mounting clamp A22 | 3 | current |
| deleted | ||||
| 24 | 06.67300-0620 | clamp D1-6X15-W4-EPDM | 2 | current |
| 25 | 81.97486-0890 | bracket 27X27X20 | 1 | current |
| 26 | 06.67300-2230 | clamp D1-22X20-W4-EPDM | 2 | current |
| item number 27 + 28 deleted | ||||
| 29 | 51.97485-0237 | bracket | 1 | current |
| 51.25441-0319 | bracket socket | 1 | current | |
| 30 | 06.01283-5214 | hexagon screw M10X22-8.8-MAN183-B1 | 2 | current |
| 31 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 2 | current |
| deleted | ||||
| deleted | ||||
| deleted | ||||
| 35 | 06.11064-2114 | hexagon nut M8-8-MAN183-B1 | 1 | current |
| 40 | 81.97401-0589 | cable binder 4,65X385/4,5X371-PA6.6-SW | NB | current |
| deleted | ||||
| 06.01283-5116 | hexagon screw M8X28-8.8-MAN183-B1 | 1 | current | |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.97480-0438 | bracket | 51.97480-0891 |
| 51.25441-0369 | bracket for cable harnesses | 51.25441-0228 |
| 06.11064-2112 | hexagon nut M6-8-MAN183-B1 | 06.11181-0112 |
