Lighting, signals, switches, controls ยท group 250 0
Cable harness mounting parts
30 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0630-0450 cable harness forEDC7 + MMDS D2842 LE4...

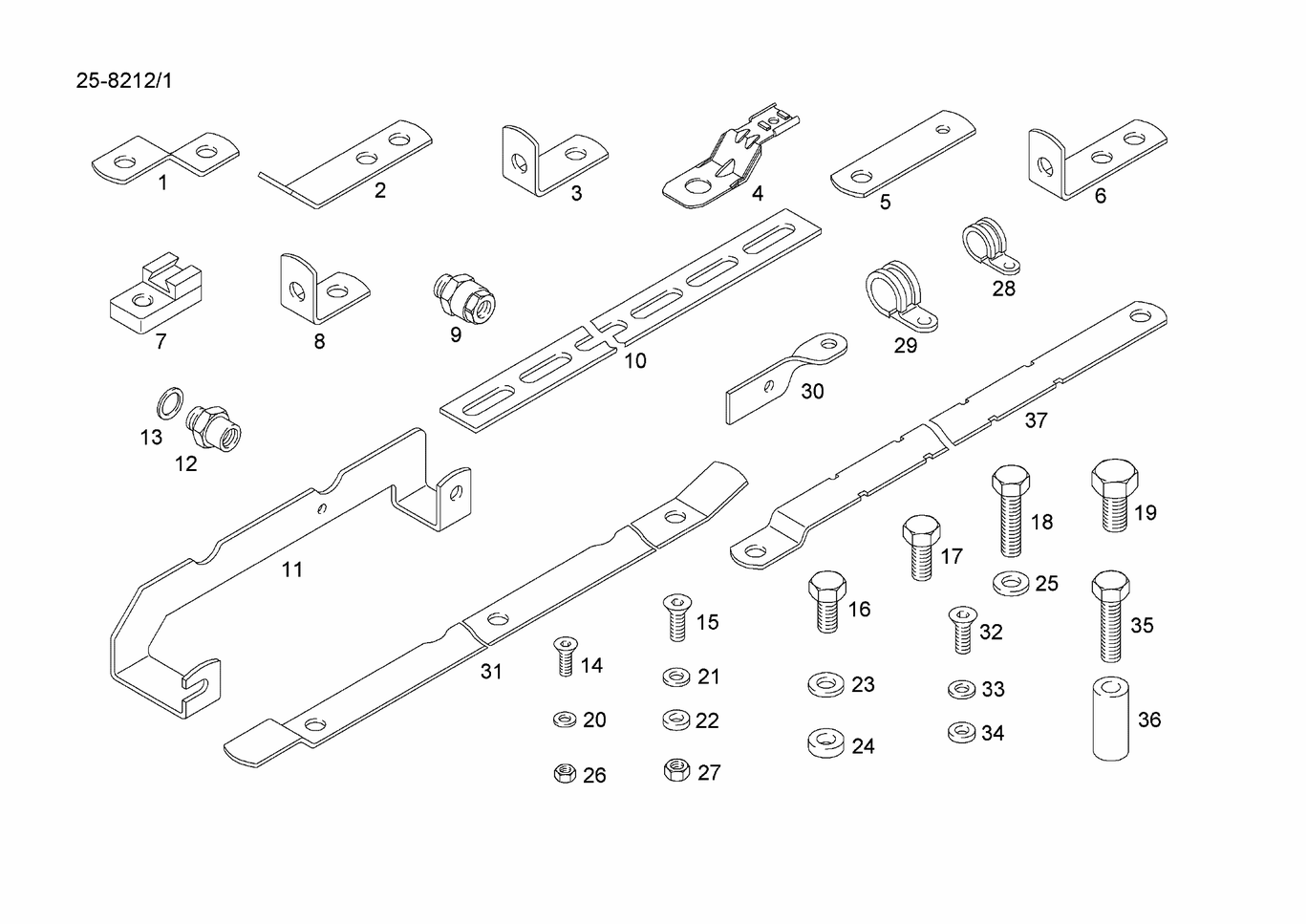

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.97480-0891 | bracket | 3 | current |
| 2 | 51.97485-0239 | bracket | 3 | current |
| 3 | 50.99919-1019 | angle | 1 | current |
| 4 | 51.25441-0228 | bracket | 2 | current |
| 5 | 51.06340-0204 | fish plate EF20X4X62-10-27-11/6,5-ST37-2- | 1 | current |
| 6 | 51.97485-0266 | bracket | 1 | current |
| 7 | 51.25441-0319 | bracket socket | 1 | current |
| 8 | 51.97485-0265 | bracket | 1 | current |
| 9 | 50.25443-0002 | union assembly | 2 | supplied as 5 parts |
| 10 | 51.25441-0411 | bracket cable harness | 1 | current |
| 11 | 51.25441-0404 | bracket cable harness | 2 | current |
| 12 | 50.90310-0169 | drain plug M14X1,5-5.8-INNENGEW.M8 | 1 | current |
| 13 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 1 | current |
| 14 | 06.04291-0709 | countersunk screw M5X16-4.8-H-MAN183-B1 | 1 | current |
| 15 | 06.02140-0404 | countersunk screw M6X16-8.8-MAN183-B1 with hexagon socket | 3 | current |
| 16 | 06.01283-5111 | hexagon screw M8X16-8.8-MAN183-B1 | 2 | current |
| 17 | 06.01283-5112 | hexagon screw M8X18-8.8-MAN183-B1 | 2 | current |
| 18 | 06.01283-5117 | hexagon screw M8X30-8.8-MAN183-B1 | 3 | current |
| 19 | 06.01283-5211 | hexagon screw M10X16-8.8-MAN183-B1 | 2 | current |
| 20 | 06.15193-0306 | washer 5X15X1-200HV-MAN183-B1 | 1 | current |
| 21 | 06.15013-0409 | washer 6X12X1,6-200HV-MAN183-B1 | 1 | current |
| 22 | 06.15193-0307 | washer 6,4X18X1,6-200HV-MAN183-B1 | 3 | current |
| 23 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | NB | current |
| 24 | 51.90710-0314 | washer 9X19X3-9SMNPB28K | NB | superseded → 51.01802-5593 |
| 25 | 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | NB | current |
| 26 | 06.11064-2111 | hexagon nut M5-8-MAN183-B1 | NB | current |
| 27 | 06.11240-0303 | hex lock nut AM6-8-MAN183-B1 | NB | current |
| 28 | 06.67300-2830 | clamp D1-28X20-W4-EPDM | 1 | current |
| 29 | 51.97401-0540 | clamp D1-6X20-W1-EPDM-2 | 2 | current |
| 37 | 51.25441-0426 | bracket for cable harnesses | 1 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 50.25443-0002 | union assembly | |
| 51.90710-0314 | washer 9X19X3-9SMNPB28K | 51.01802-5593 |
