Clutch, elastic ยท group 172 0
Clutch elastic

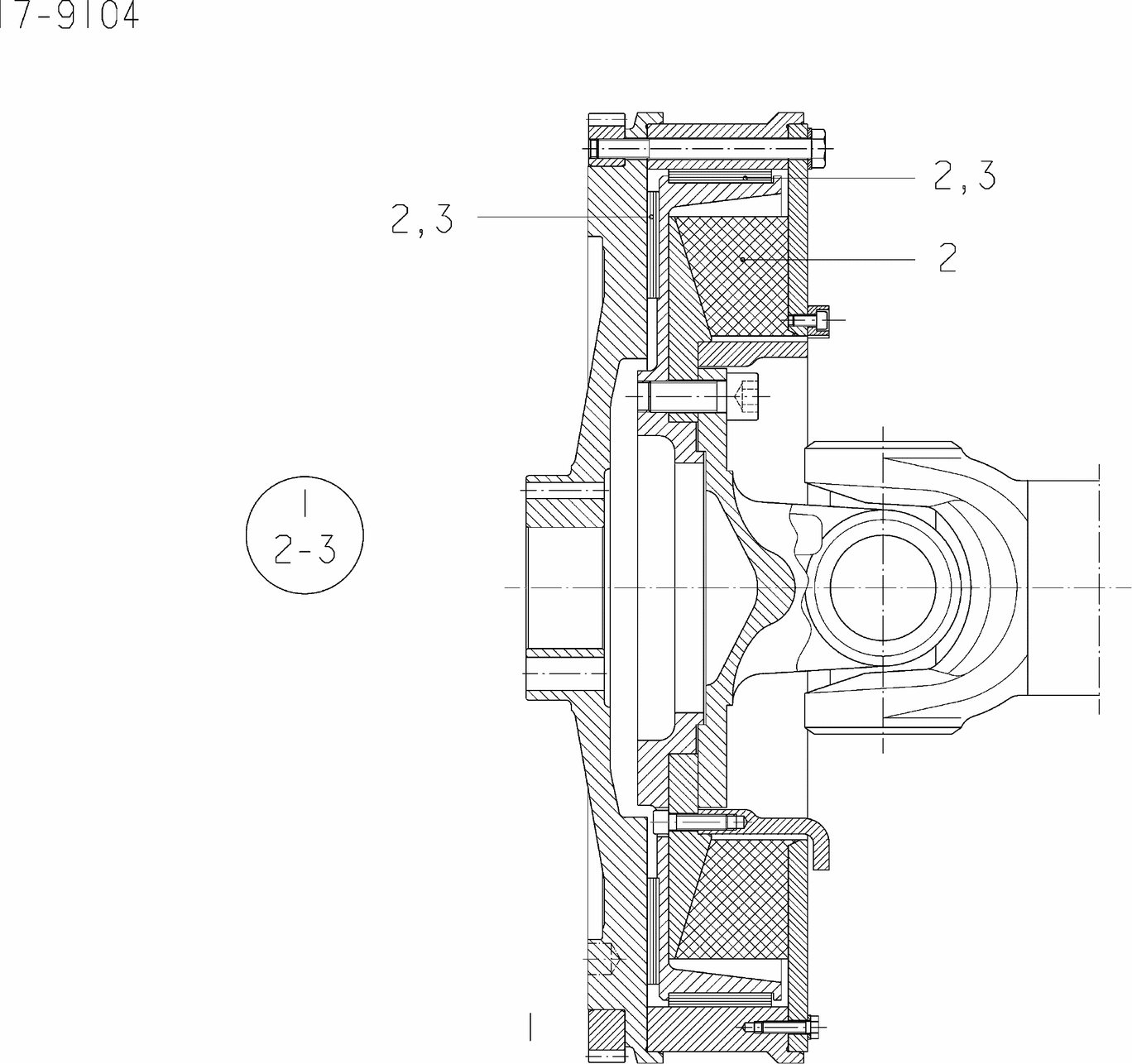

8 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0400-0196 flanged bearingSAE1 with clutch elastic.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.17130-7001 | clutch elastic | 1 | current |
| 51.17210-0087 | hub | 1 | current | |
| 51.17205-0055 | connecting element elastic | 1 | current | |
| 06.01499-0120 | hex shoulder stud M12X1,5X100-8.8-A3C | 8 | current | |
| 06.01289-0108 | hexagon screw M10X40-8.8-MAN183-A3C | 12 | superseded → 06.01283-5219 | |
| 06.15015-0413 | washer 12X24X2,5-300HV-MAN183-B1 | 8 | current | |
| 06.15013-0412 | washer 10X20X2-200HV-MAN183-B1 | 12 | current | |
| 04.10160-9164 | adhesive LOCTITE648-FL50ML bottle | 1 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.01289-0108 | hexagon screw M10X40-8.8-MAN183-A3C | 06.01283-5219 |
