Lighting, signals, switches, controls ยท group 250 0

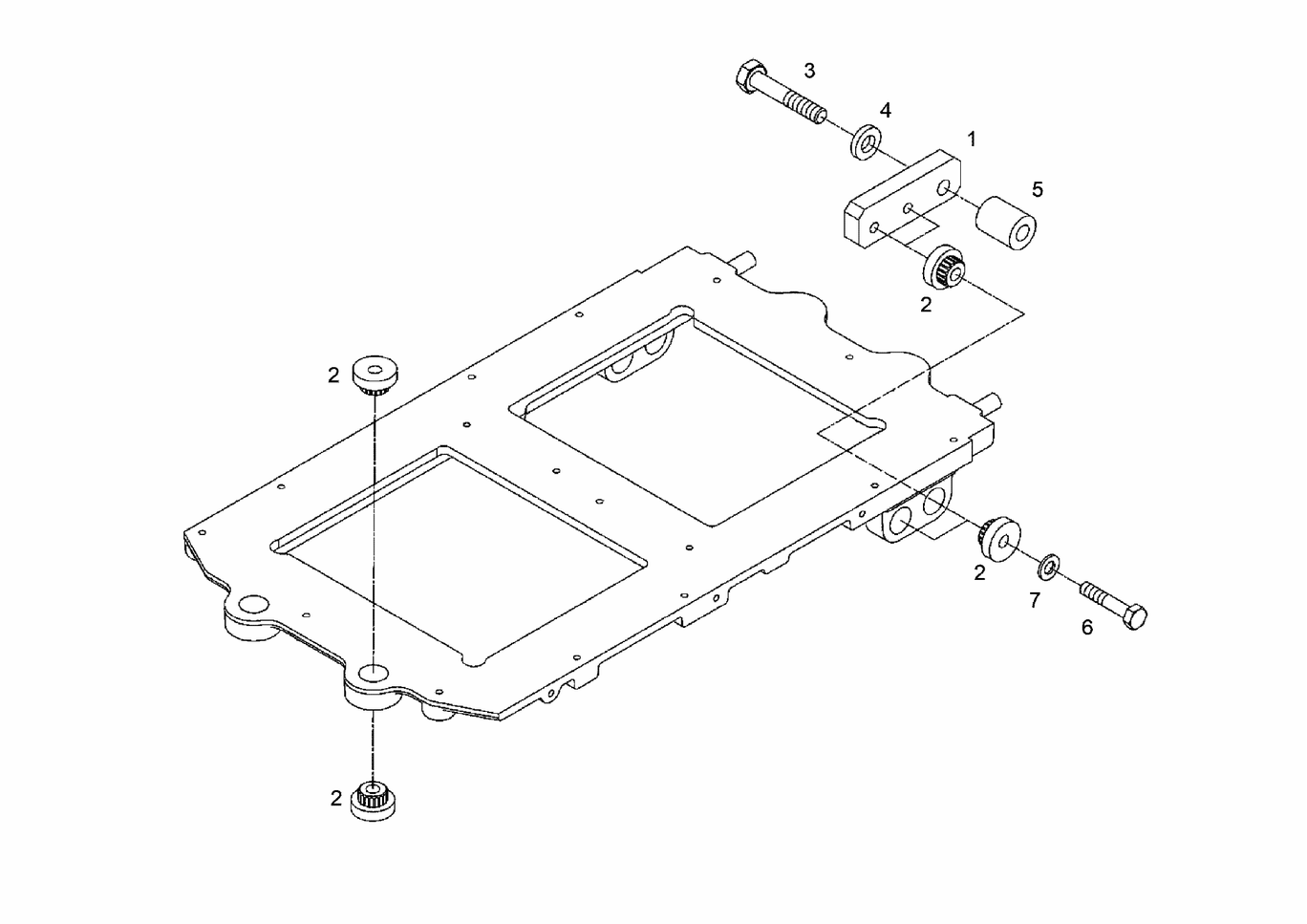

Engine control unit bracket
8 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0211-0027 injection system withCR,EDC7 - electronic control unit1000KW (1360PS)D2842 LE423.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.97485-0243 | bracket | 2 | current |
| 2 | 51.96210-0117 | rubber pad | 12 | superseded → 51.96210-0119 |
| 2 | 51.96210-0119 | rubber pad | 12 | current |
| 3 | 06.01013-7216 | hex shoulder stud M10X55-8.8-MAN183-B1 | 2 | current |
| 4 | 51.90710-0466 | spacer 11X21X4-9SMNPB28K-M3166-RAL901 | 2 | current |
| 5 | 51.91701-0957 | bush 10,5X22X28-9SMNPB28K | 2 | current |
| 6 | 06.02829-0025 | hex lock screw M8X40-MK8X4-10.9-MAN183-B1 | 4 | current |
| 7 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 2 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.96210-0117 | rubber pad | 51.96210-0119 |
