Lighting, signals, switches, controls ยท group 250 0

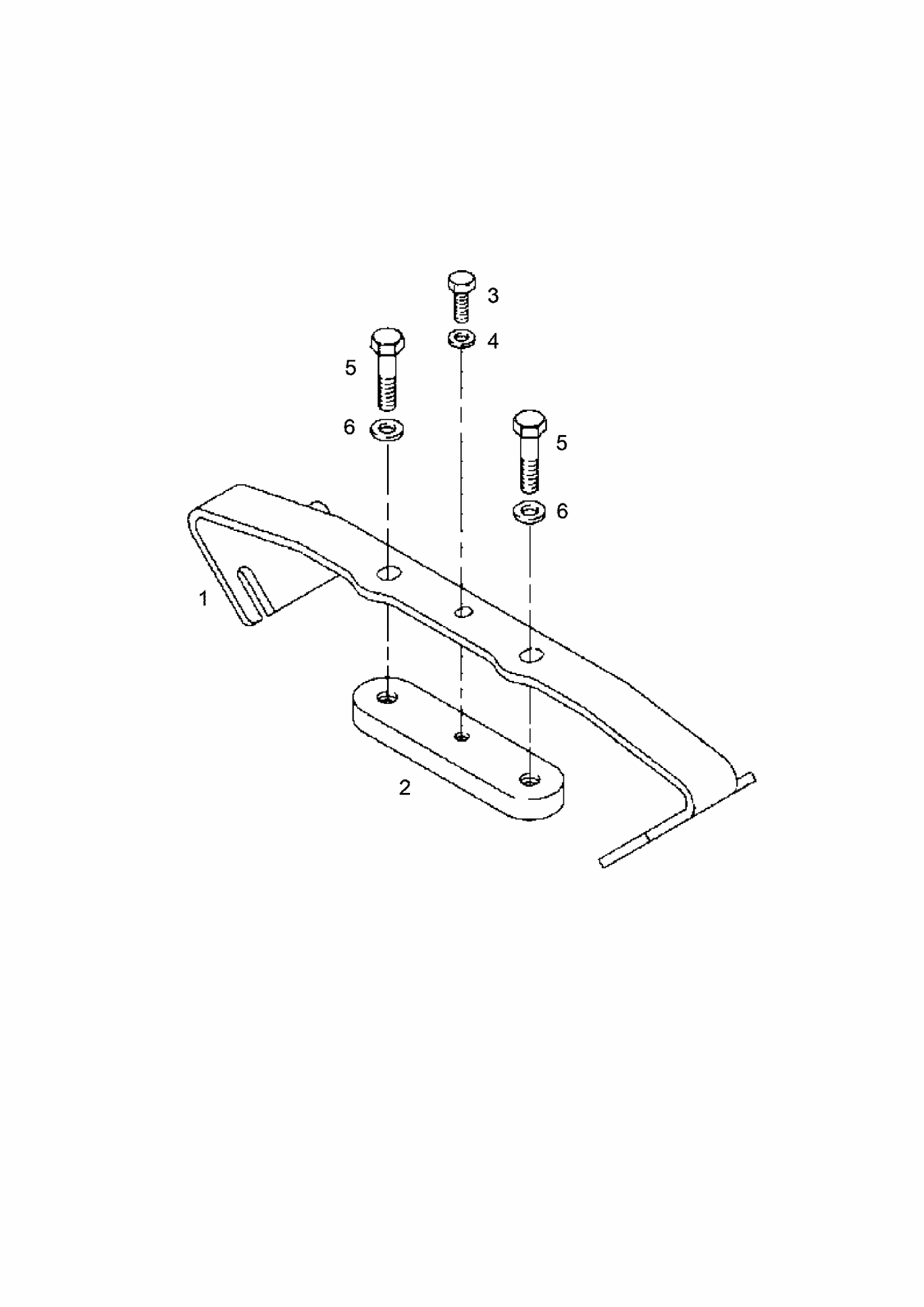

Engine control unit bracket carrier
11 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0211-0027 injection system withCR,EDC7 - electronic control unit1000KW (1360PS)D2842 LE423.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.11640-0301 | carrier electronic control unit | 1 | current |
| 2 | 51.11640-0285 | bracket | 1 | current |
| 3 | 06.01283-4913 | hexagon screw M6X20-8.8-MAN183-B1 | 1 | current |
| 4 | 06.15013-0409 | washer 6X12X1,6-200HV-MAN183-B1 | 1 | current |
| 5 | 06.01283-5121 | hexagon screw M8X50-8.8-MAN183-B1 | 2 | current |
| 6 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 2 | current |
| 51.97480-0971 | bracket | 1 | current | |
| 06.01283-5113 | hexagon screw M8X20-8.8-MAN183-B1 | 1 | current | |
| 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 1 | current | |
| 06.11064-2114 | hexagon nut M8-8-MAN183-B1 | 1 | current | |
| 51.93030-0373 | bush 7X12X7 | 1 | current | |
| 06.01283-4913 | hexagon screw M6X20-8.8-MAN183-B1 | 1 | current | |
| 06.15193-0307 | washer 6,4X18X1,6-200HV-MAN183-B1 | 1 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
