Lighting, signals, switches, controls ยท group 250 0

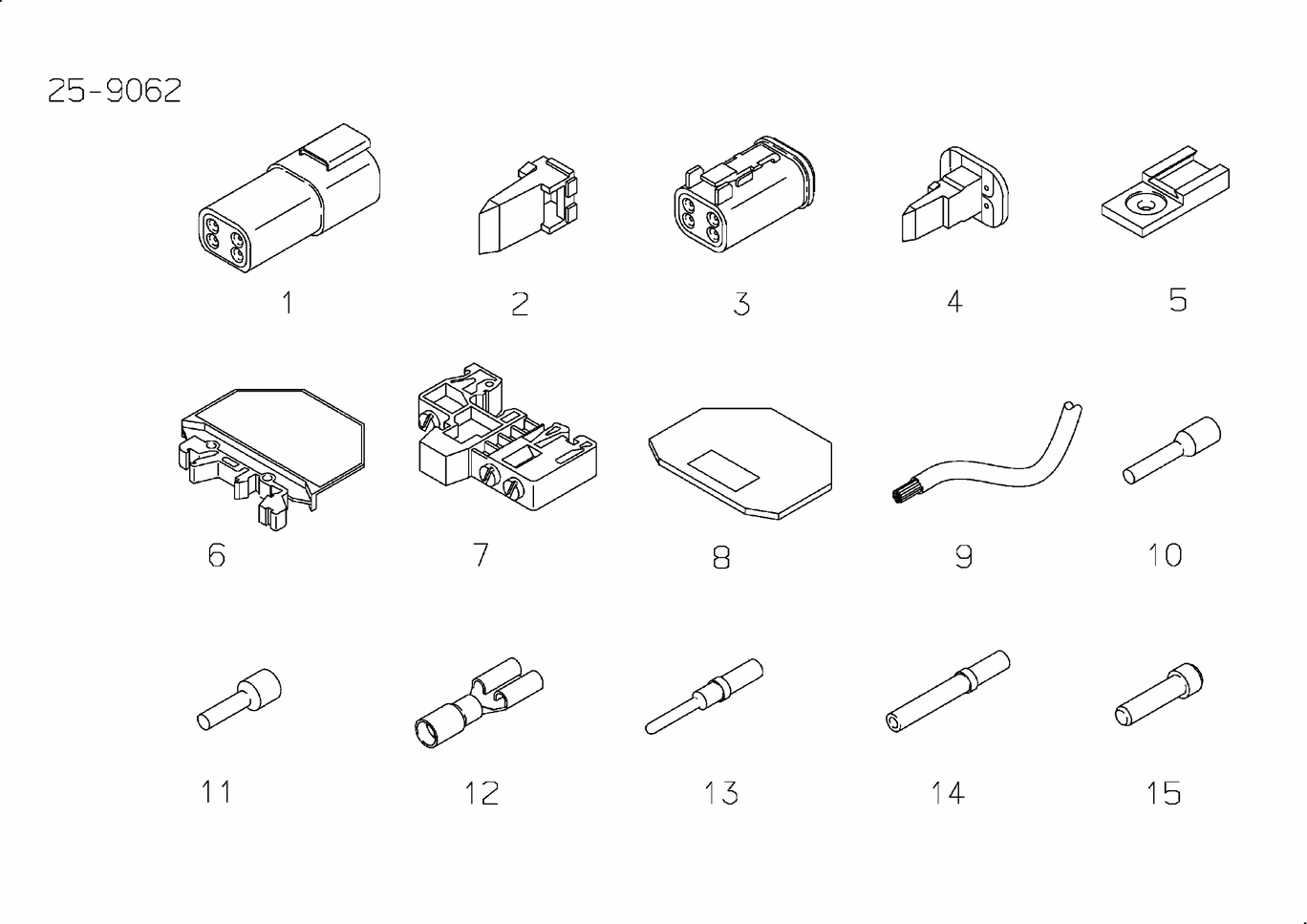

Generator parts kit
11 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0041-0080 alternator28V/120A.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25432-0034 | socket 4-pin adapter | 1 | current |
| 2 | 51.25432-0013 | key | 1 | current |
| 5 | 51.25441-0319 | bracket socket | 1 | current |
| 9 | 07.07999-2225 | power cable FEP35-PTFE | NB | current |
| 12 | 07.91211-0110 | crimp-on cable lug 6-2,5 | 1 | current |
| deleted | ||||
| 14 | 51.25435-0190 | contact pin AWG 16 AU | 2 | superseded → 51.25432-0014 |
| deleted | ||||
| 81.96001-0458 | grommet 7,5X0,8X30-CR TS6 | 4 | current | |
| 07.91164-0121 | union PG16-14-FS-GR | 2 | current | |
| 04.37435-0067 | insulating hose 5,0/0,6X100000-SW | NB | current | |
| 51.25435-0194 | protective cap | 1 | current | |
| 06.04292-4807 | countersunk screw M6X12-8.8-A2C | 1 | superseded → 06.04294-0807 | |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.25435-0190 | contact pin AWG 16 AU | 51.25432-0014 |
| 06.04292-4807 | countersunk screw M6X12-8.8-A2C | 06.04294-0807 |
