Injection nozzles and pipes ยท group 100 0
Injection lines
12 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0211-0027 injection system withCR,EDC7 - electronic control unit1000KW (1360PS)D2842.

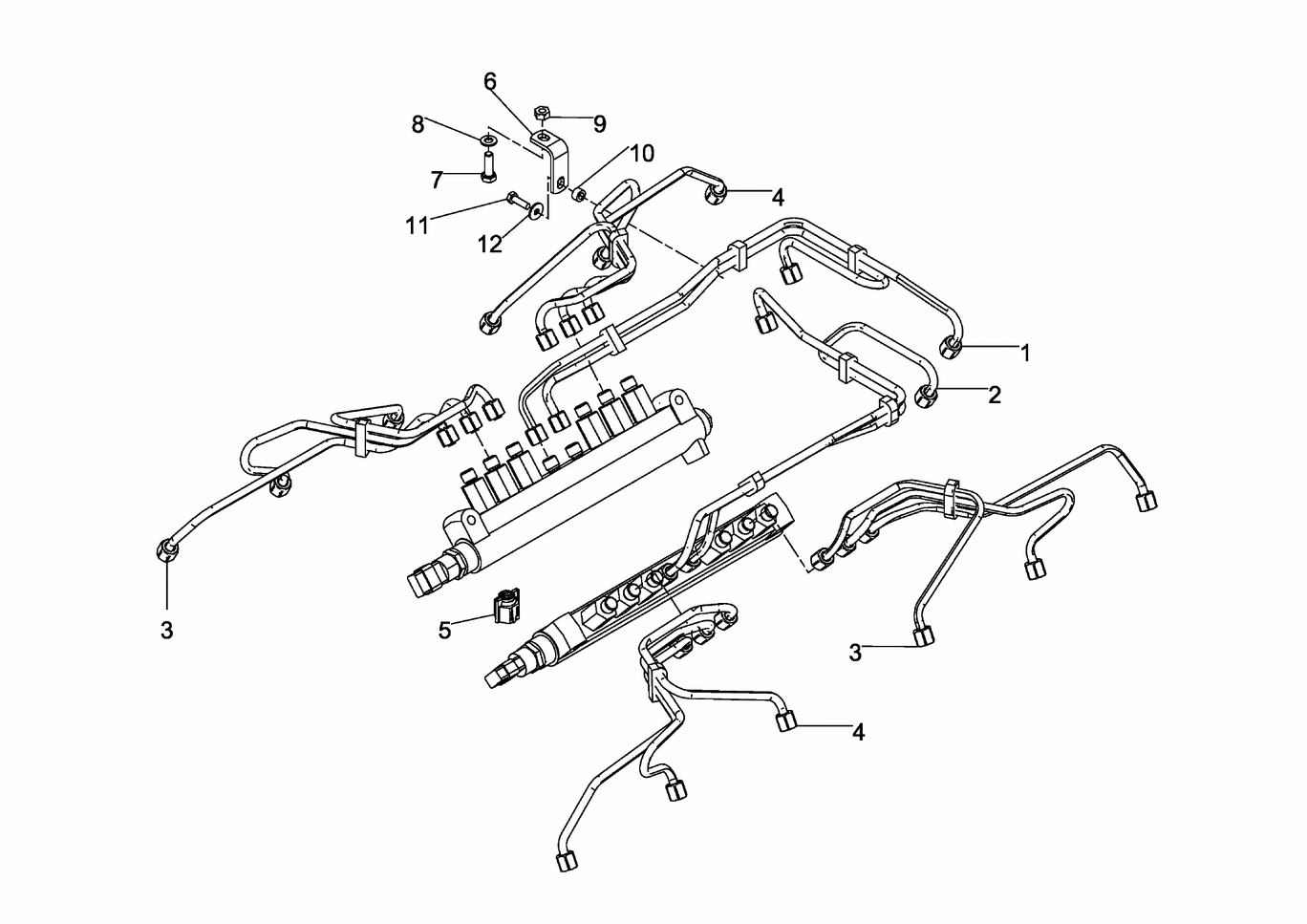

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.10300-6064 | injection line set left | 1 | superseded → 51.10300-6285 |
| 2 | 51.10300-6065 | injection line set right | 1 | superseded → 51.10300-6286 |
| 3 | 51.10300-6066 | injection line set cylinder 1-3 cylinders 10-12 | 2 | superseded → 51.10300-6287 |
| 4 | 51.10300-6159 | injection line pressure pipe injector | 2 | superseded → 51.10300-6280 |
| 5 | 51.12340-0112 | covering | 32 | current |
| 6 | 51.97480-0971 | bracket | 1 | current |
| 7 | 06.01283-5115 | hexagon screw M8X25-8.8-MAN183-B1 | 1 | current |
| 8 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 2 | current |
| 9 | 06.11064-2114 | hexagon nut M8-8-MAN183-B1 | 1 | current |
| 10 | 51.93030-0373 | bush 7X12X7 | 1 | current |
| 11 | 06.01283-4915 | hexagon screw M6X25-8.8-MAN183-B1 | 1 | current |
| 12 | 06.15193-0307 | washer 6,4X18X1,6-200HV-MAN183-B1 | 1 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.10300-6064 | injection line set left | 51.10300-6285 |
| 51.10300-6065 | injection line set right | 51.10300-6286 |
| 51.10300-6066 | injection line set cylinder 1-3 cylinders 10-12 | 51.10300-6287 |
| 51.10300-6159 | injection line pressure pipe injector | 51.10300-6280 |
