Lighting, signals, switches, controls ยท group 250 0

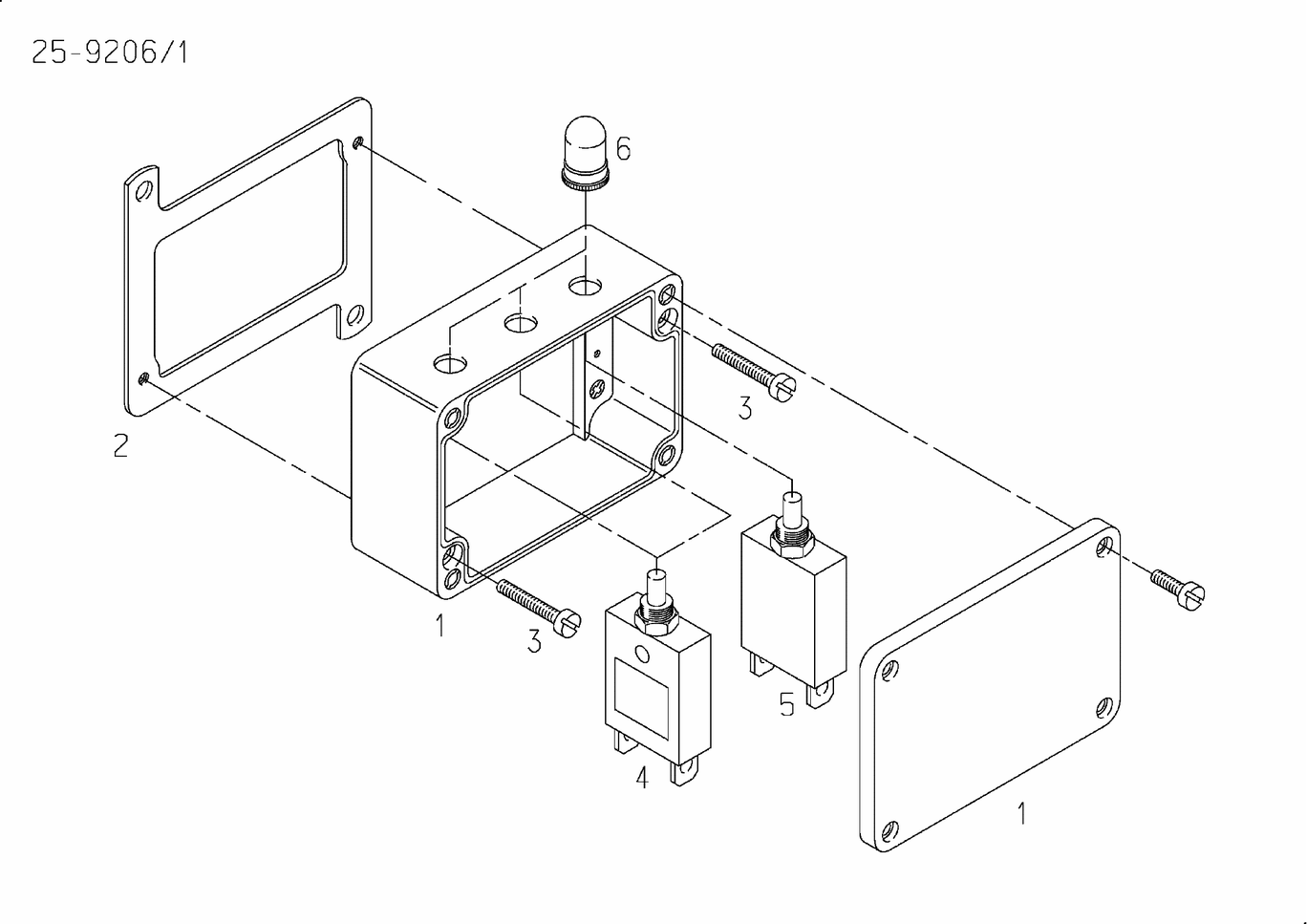

Terminal box components
5 part numbers in this assembly of the MAN D2842 LE423. MAN reference 51.#0630-0450 cable harness forEDC7 + MMDS D2842 LE4...
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25431-7033 | terminal box | 1 | current |
| deleted | ||||
| 3 | 06.04252-1008 | cylinder screw M4X12-4.8-A3C | 2 | superseded → 06.04259-1008 |
| 4 | 51.25437-0009 | automatic cut-out 25A | 2 | current |
| 5 | 07.93813-0003 | protective circuit breaker 28V/16A | 1 | current |
| 6 | 51.25446-0004 | protective cap with knurled nut | 3 | superseded → 51.25446-0006 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.04252-1008 | cylinder screw M4X12-4.8-A3C | 06.04259-1008 |
| 51.25446-0004 | protective cap with knurled nut | 51.25446-0006 |
