Lighting, signals, switches, controls ยท group 250 0
Cable harness bracket
4 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0630-0946 cable harness.

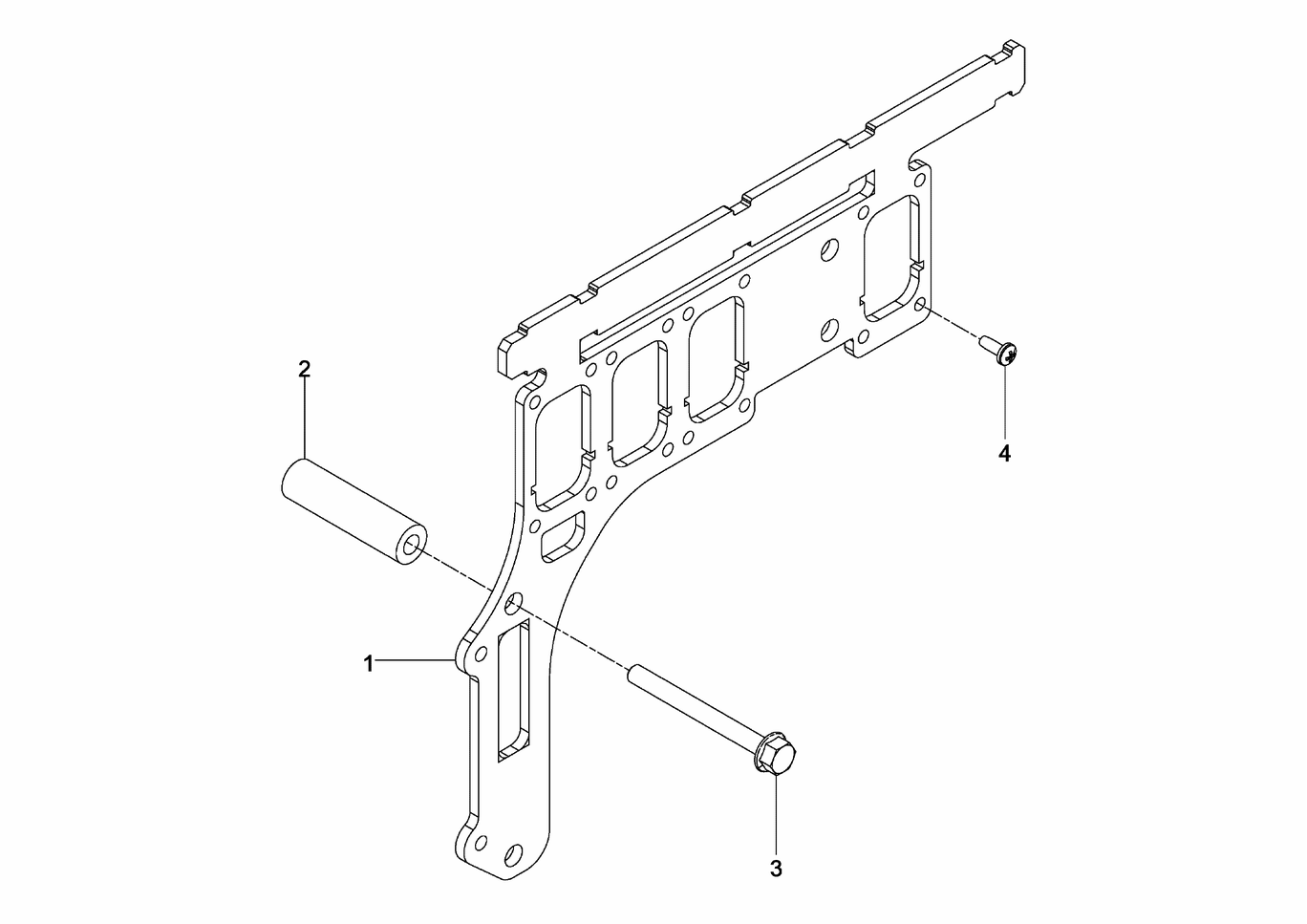

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25441-0757 | bracket plug | 1 | superseded → 51.25441-0839 |
| 2 | 51.93030-0219 | bush 9X18X67 | 4 | current |
| 3 | 06.03215-8315 | hex flange bolt M8X80-8.8-MAN183-B1 | 4 | current |
| 4 | 06.07222-1604 | oval-head self-tapping screw ST4,8X13-F-MAN183-B1 with internal torx | 16 | superseded → 06.07159-0014 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.25441-0757 | bracket plug | 51.25441-0839 |
| 06.07222-1604 | oval-head self-tapping screw ST4,8X13-F-MAN183-B1 with internal torx | 06.07159-0014 |
