Lighting, signals, switches, controls ยท group 250 0
Cable harness bracket
21 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0630-0946 cable harness.

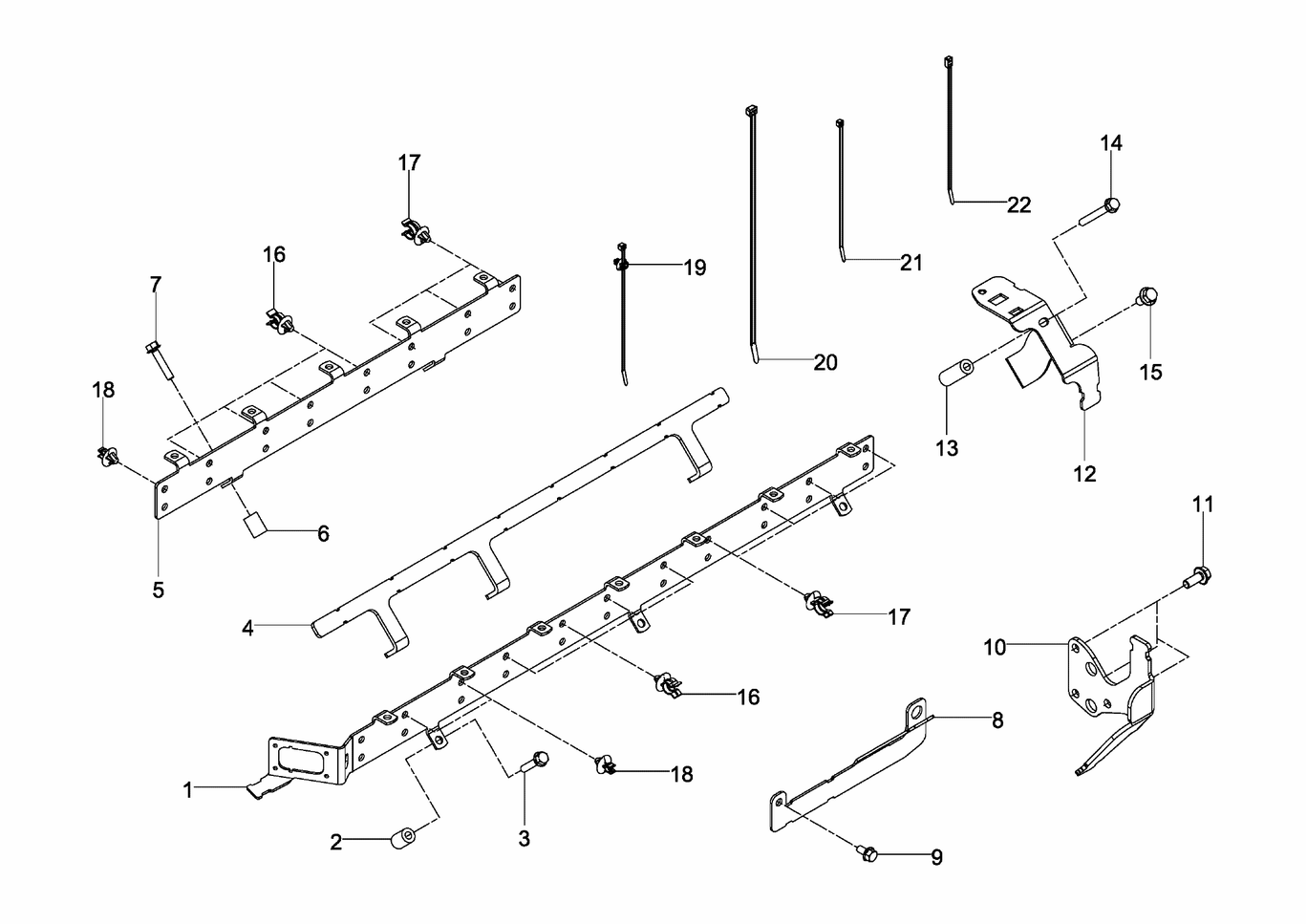

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25441-0770 | bracket injector cable harness | 1 | current |
| 2 | 51.93030-0276 | bush 9X18X25,5 | 3 | current |
| 3 | 06.03216-8308 | hex flange bolt M8X40-10.9-MAN183-B1 | 3 | current |
| 4 | 51.25441-0746 | bracket for cable harnesses | 1 | current |
| 5 | 51.25441-0542 | bracket injector | 1 | current |
| 6 | 51.93030-0276 | bush 9X18X25,5 | 2 | current |
| 7 | 06.03216-8308 | hex flange bolt M8X40-10.9-MAN183-B1 | 2 | current |
| 8 | 51.25441-0758 | bracket cable harness injector | 1 | current |
| 9 | 06.03216-8303 | hex flange bolt M8X16-10.9-MAN183-B1 | 1 | current |
| 10 | 51.25441-0773 | bracket cable harness injector | 1 | current |
| 11 | 06.03216-8405 | hex flange bolt M10X25-10.9-MAN183-B1 | 3 | current |
| 11 | 06.03216-8404 | hex flange bolt M10X20-10.9-MAN183-B1 | 3 | current |
| 12 | 51.25441-5209 | bracket cable harness injector | 1 | current |
| 13 | 51.93030-0286 | bush 9X18X50 | 1 | current |
| 14 | 06.03215-8314 | hex flange bolt M8X70-8.8-MAN183-B1 | 1 | current |
| 15 | 06.03216-8404 | hex flange bolt M10X20-10.9-MAN183-B1 | 1 | current |
| 16 | 51.97430-0001 | tube bracket NW10-PA66-GF30-SW | NB | current |
| 17 | 51.97430-0002 | tube bracket NW13-PA66-GF30-SW | NB | current |
| 18 | 51.97430-0005 | tube bracket NW4,5-PA66-GF30-SW | NB | current |
| 19 | 51.97401-0557 | cable binder 4,7X202/6,5-7-PA4.6 | NB | current |
| 20 | 81.97401-0631 | cable binder 7,7X369-PA6.6-SW | NB | current |
| 21 | 81.97401-0834 | cable binder 5X205/4,6X203-PA6.6-SW | NB | superseded → 81.97401-0589 |
| 22 | 81.97470-0087 | cable binder 4,6X210-PA6.6-SW | NB | current |
| 85.97401-0021 | cable binder 4,8X188-TEFZEL-BL | NB | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 81.97401-0834 | cable binder 5X205/4,6X203-PA6.6-SW | 81.97401-0589 |
