Lighting, signals, switches, controls ยท group 250 0
Engine control unit EDC
12 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0212-0106 injection systemCR,EDC17, D2862 LE133 650KW (884PS) EPA-T4.

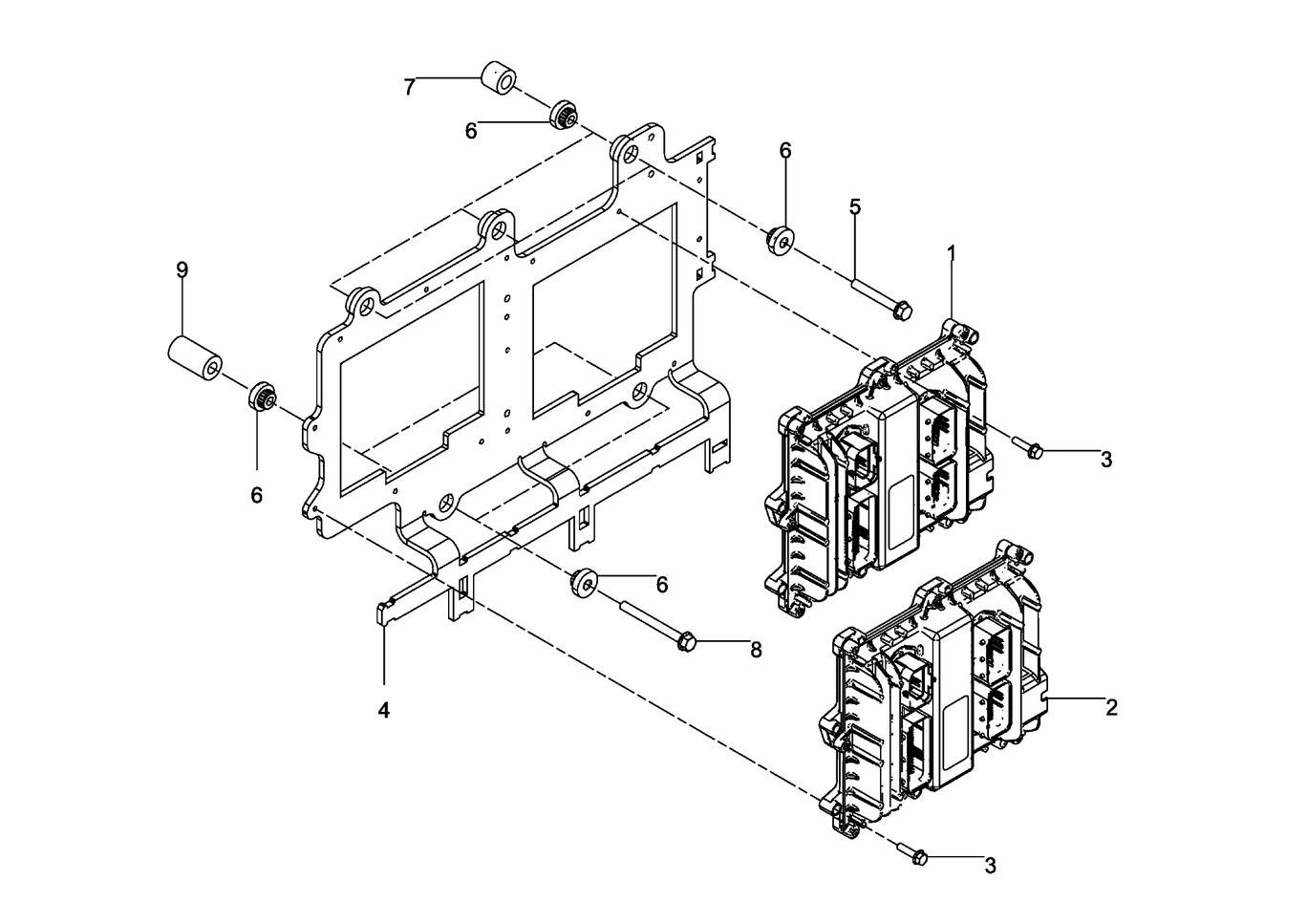

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.25804-7545 | Engine control unit EDC MASTER electronic diesel control | 1 | superseded → 51.25835-7150 |
| 1 | 51.25835-7005 | Engine control unit D2862LE133 MASTER electronic diesel control | 1 | superseded → 51.25835-7150 |
| 2 | 51.25804-7546 | Engine control unit EDC SLAVE electronic diesel control | 1 | superseded → 51.25835-7151 |
| 2 | 51.25835-7006 | Engine control unit D2862LE133 SLAVE electronic diesel control | 1 | superseded → 51.25835-7151 |
| 3 | 06.03216-8205 | hex flange bolt M6X25-10.9-MAN183-B1 | 16 | current |
| 4 | 51.11640-5092 | bracket | 1 | current |
| 5 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 3 | current |
| 6 | 51.96210-0117 | rubber pad | 10 | superseded → 51.96210-0119 |
| 6 | 51.96210-0119 | rubber pad | 10 | current |
| 7 | 51.93030-0194 | bush 13X24X20 | 3 | current |
| 8 | 06.03216-8315 | hex flange bolt M8X80-10.9-MAN183-B1 | 2 | current |
| 9 | 51.93030-0247 | bush 11,5X24X44,5 | 2 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.25804-7545 | Engine control unit EDC MASTER electronic diesel control | 51.25835-7150 |
| 51.25835-7005 | Engine control unit D2862LE133 MASTER electronic diesel control | 51.25835-7150 |
| 51.25804-7546 | Engine control unit EDC SLAVE electronic diesel control | 51.25835-7151 |
| 51.25835-7006 | Engine control unit D2862LE133 SLAVE electronic diesel control | 51.25835-7151 |
| 51.96210-0117 | rubber pad | 51.96210-0119 |
