Intake system / exhaust manifold ยท group 080 0
Exhaust pipes exhaust elbow
27 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0160-0619 exhaust system.

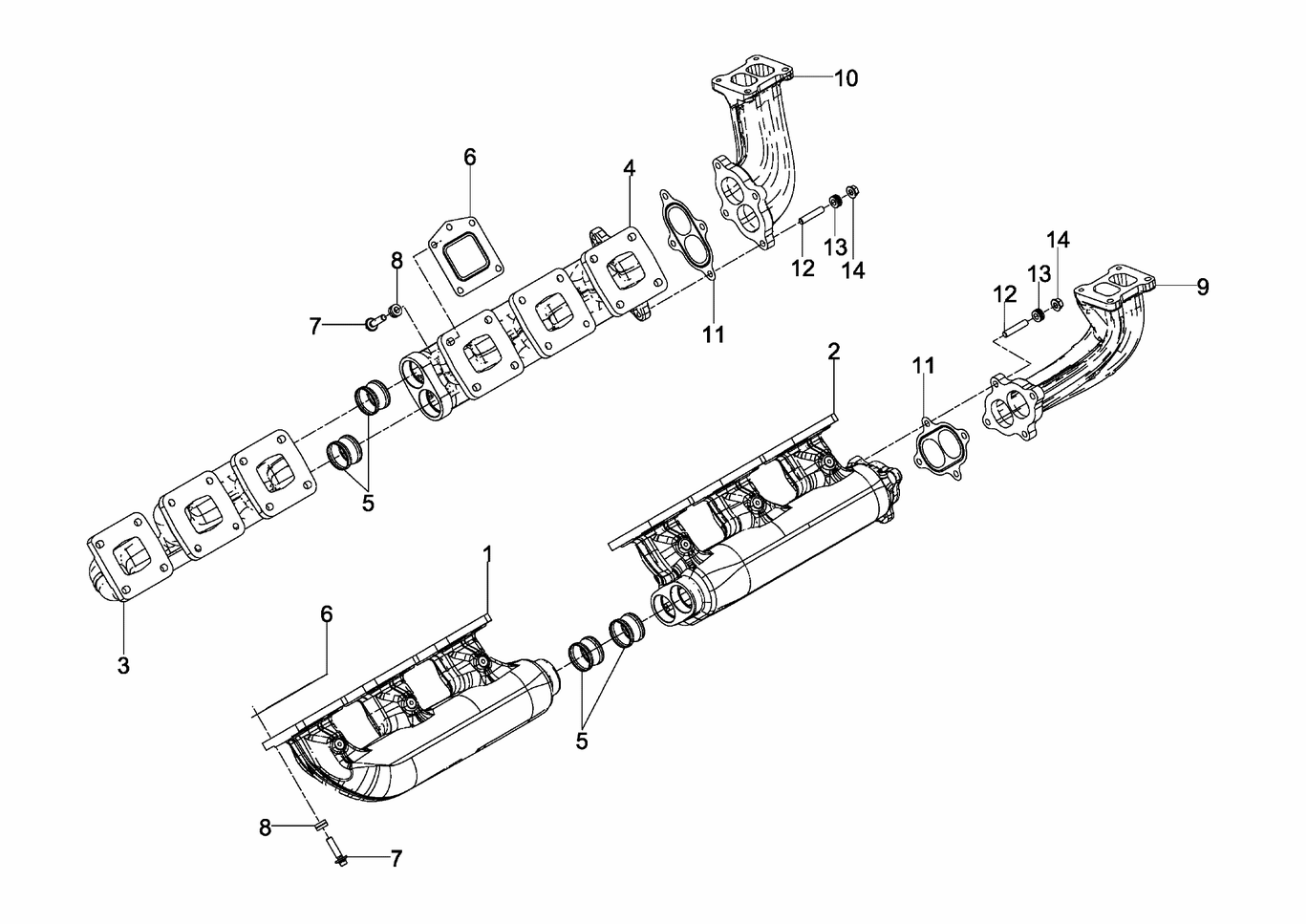

Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.08101-5259 | exhaust manifold front insulated | 1 | superseded → 51.08101-5335 |
| 1 | 51.08101-5293 | exhaust elbow insulated | 1 | superseded → 51.08101-5335 |
| 1 | 51.08101-5335 | exhaust elbow | 1 | current |
| 2 | 51.08101-5260 | exhaust manifold rear insulated | 1 | superseded → 51.08101-5336 |
| 2 | 51.08101-5294 | exhaust elbow rear | 1 | superseded → 51.08101-5336 |
| 2 | 51.08101-5336 | exhaust elbow | 1 | current |
| 3 | 51.08102-0674 | exhaust manifold | 1 | superseded → 51.08102-0956 |
| 3 | 51.08102-0753 | exhaust elbow front | 1 | superseded → 51.08102-0956 |
| 3 | 51.08102-0956 | exhaust elbow front | 1 | current |
| 4 | 51.08102-0675 | exhaust manifold rear | 1 | superseded → 51.08102-0957 |
| 4 | 51.08102-0754 | exhaust elbow rear | 1 | superseded → 51.08102-0957 |
| 4 | 51.08102-0957 | exhaust elbow rear | 1 | current |
| 5 | 51.08105-0154 | connecting piece | 4 | superseded → 51.08105-0166 |
| 5 | 51.08105-0166 | connecting piece | 4 | current |
| 09.16012-0129 | ht grease DS5KG | NB | superseded → 09.16012-0114 | |
| 6 | 51.08901-0363 | gasket | 12 | current |
| 7 | 51.90490-0115 | external hex round bolt M10X40-1.4980-E14-SD-HOCHWARMF | 48 | superseded → 51.90490-0030 |
| 7 | 51.90490-0030 | external hex round bolt M10X57-1.7709-E14-GA-WARMFEST- | 48 | current |
| 8 | 51.93030-0145 | bush 10,5X20X11 | 48 | superseded → 51.93030-0311 |
| 8 | 51.93030-0311 | bush 10,5X22X28 | 48 | current |
| 9 | 51.08101-5273 | exhaust pipe left insulated | 1 | current |
| 10 | 51.08102-0690 | exhaust pipe right | 1 | superseded → 51.08102-0877 |
| 10 | 51.08102-0877 | exhaust pipe right | 1 | current |
| 11 | 51.08901-0305 | gasket exhaust elbow | 2 | current |
| 12 | 51.90201-0255 | stud M10X40-SD-HOCHWARMFEST | 8 | current |
| 13 | 51.91701-0906 | bush 10,5X20X9-X15CRNISI2012-HOCHWA | 8 | current |
| 14 | 06.11229-0023 | hex collar nut M10-GA-SW15-C3J | 8 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.08101-5259 | exhaust manifold front insulated | 51.08101-5335 |
| 51.08101-5293 | exhaust elbow insulated | 51.08101-5335 |
| 51.08101-5260 | exhaust manifold rear insulated | 51.08101-5336 |
| 51.08101-5294 | exhaust elbow rear | 51.08101-5336 |
| 51.08102-0674 | exhaust manifold | 51.08102-0956 |
| 51.08102-0753 | exhaust elbow front | 51.08102-0956 |
| 51.08102-0675 | exhaust manifold rear | 51.08102-0957 |
| 51.08102-0754 | exhaust elbow rear | 51.08102-0957 |
| 51.08105-0154 | connecting piece | 51.08105-0166 |
| 09.16012-0129 | ht grease DS5KG | 09.16012-0114 |
| 51.90490-0115 | external hex round bolt M10X40-1.4980-E14-SD-HOCHWARMF | 51.90490-0030 |
| 51.93030-0145 | bush 10,5X20X11 | 51.93030-0311 |
| 51.08102-0690 | exhaust pipe right | 51.08102-0877 |
