Injection nozzles and pipes ยท group 100 0

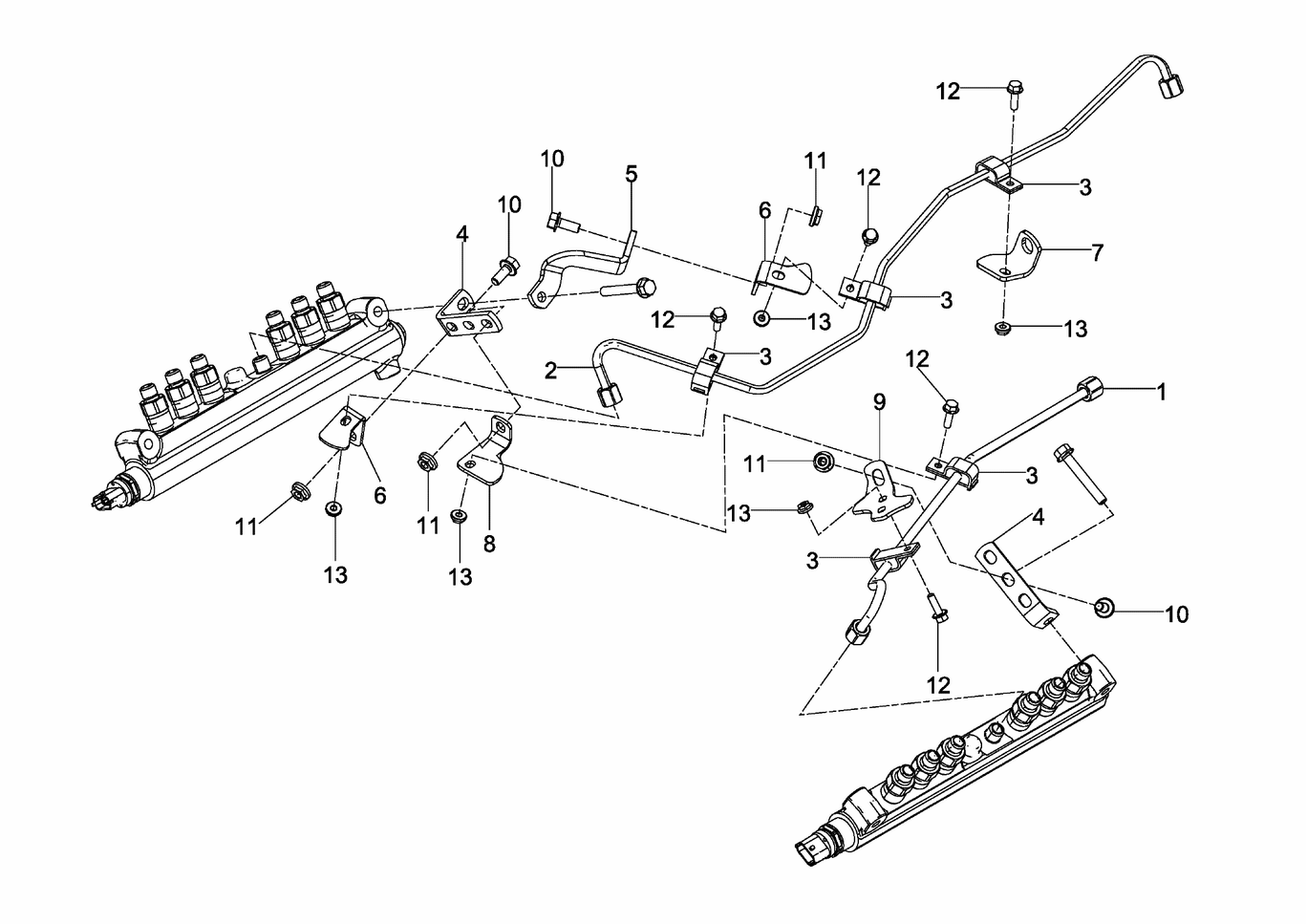

Pressure line hp pump pressure pipe
13 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0212-0106 injection systemCR,EDC17, D2862 LE133 650KW (884PS) EPA-T4.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.10304-0409 | pressure line front HDPPE-RAIL | 1 | current |
| 2 | 51.10304-0410 | pressure line rear HDPPE-RAIL | 1 | current |
| 3 | 51.97401-6077 | mounting clamp B-4 | NB | current |
| 4 | 51.10340-0038 | bracket pressure line | 2 | current |
| 5 | 51.10340-0063 | bracket pressure line | 1 | current |
| 6 | 50.10340-0003 | bracket pressure line | 2 | current |
| 7 | 50.10340-0002 | bracket pressure line | 1 | current |
| 8 | 50.10340-0005 | bracket pressure line | 1 | current |
| 9 | 50.10340-0004 | bracket pressure line | 2 | current |
| 10 | 06.03216-8304 | hex flange bolt M8X20-10.9-MAN183-B1 | 4 | current |
| 11 | 06.11251-2018 | hex lock nut M8-10-MAN183-B1 | 4 | current |
| 12 | 06.03216-8204 | hex flange bolt M6X20-10.9-MAN183-B1 | 5 | current |
| 13 | 06.11251-2017 | hex lock nut M6-10-MAN183-B1 | 5 | current |
