Injection nozzles and pipes ยท group 100 0

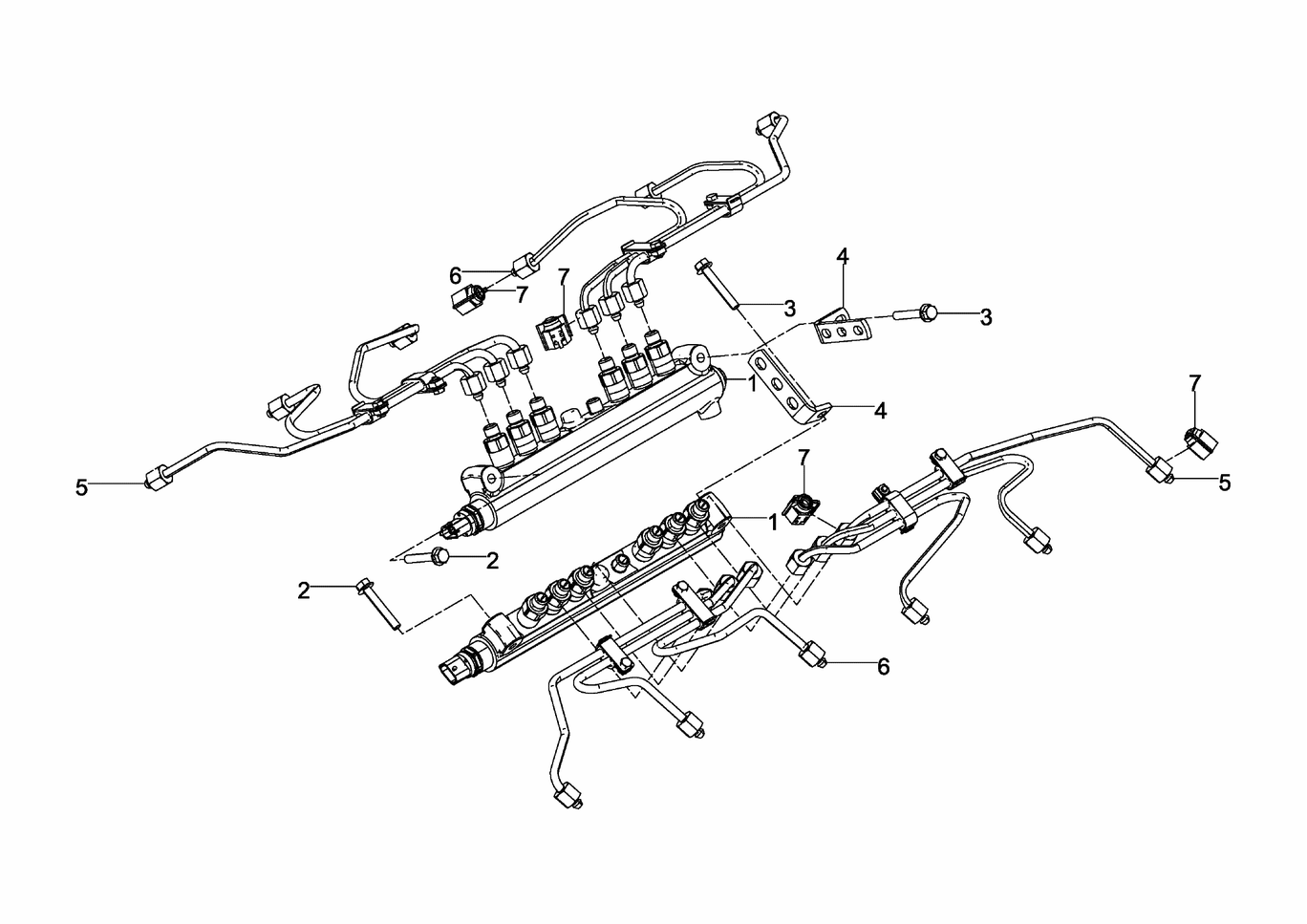

Pressure pipe injection lines
6 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0212-0106 injection systemCR,EDC17, D2862 LE133 650KW (884PS) EPA-T4.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.10311-6083 | pressure pipe | 2 | current |
| for individual parts see plate and/or reference number | ||||
| 2 | 06.03215-8310 | hex flange bolt M8X50-8.8-MAN183-B1 | 2 | current |
| 3 | 06.03215-8311 | hex flange bolt M8X55-8.8-MAN183-B1 | 1 | current |
| 3 | 06.03216-8312 | hex flange bolt M8X60-10.9-MAN183-B1 | 1 | current |
| see plate: pressure line hp pump pressure pipe | ||||
| 5 | 51.10300-6186 | injection line cylinder 1-3 cylinders 10-12 | 2 | current |
| 6 | 51.10300-6187 | injection line cylinder 4-6 cylinders 7-9 | 2 | current |
| deleted | ||||
