Intake system / exhaust manifold ยท group 080 0

Straight charge air pipe turbocharger

3 part numbers in this assembly of the MAN D2862 LE133. MAN reference 51.#0111-0124 charge air system.

Request a quote Back to intake system / exhaust manifold

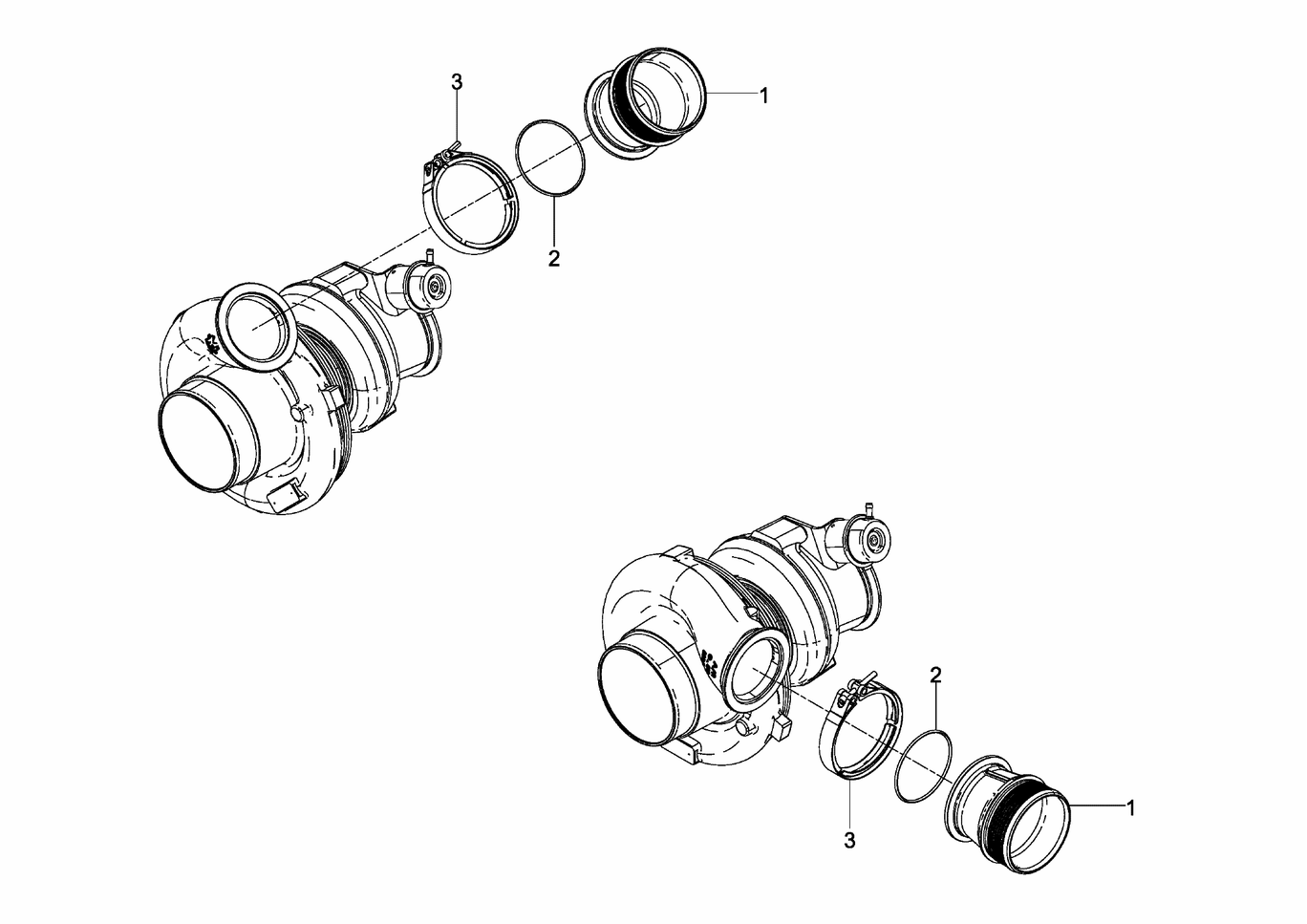

MAN D2862 LE133 straight charge air pipe turbocharger exploded parts diagram with numbered positions
Exploded view of straight charge air pipe turbocharger. The numbers match the Pos column in the table below.

Parts list

Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.

PosPart numberName / remarksQtyStatus
151.09412-0309intercooler elbow2current
206.56936-2946O-ring 84X3N-FKM1-70-GN2current
351.97445-0082profiled clamp 108X20-A22current

Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
