Intake system / exhaust manifold ยท group 080 0
Exhaust elbow mounting bolt

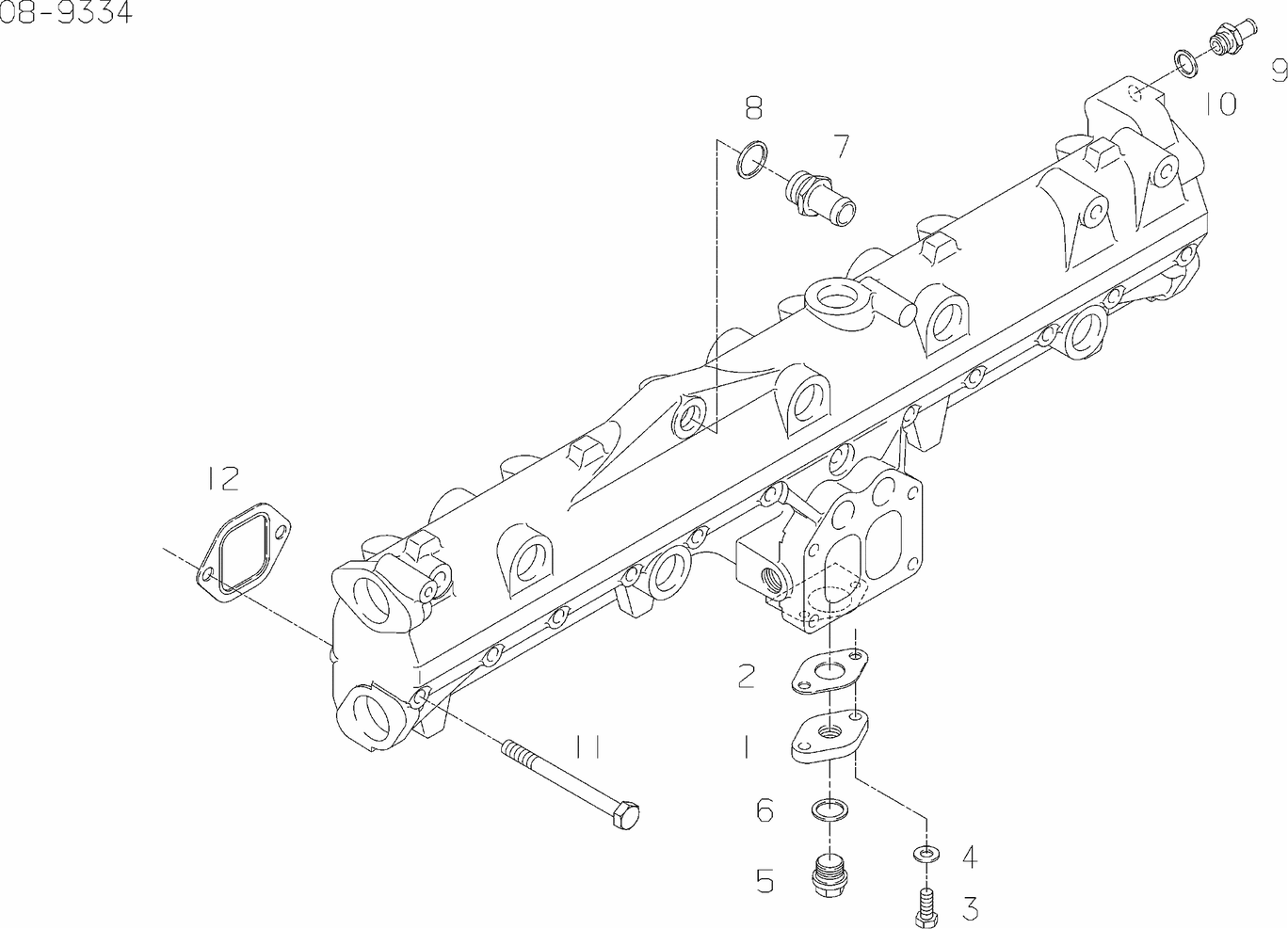

12 part numbers in this assembly of the MAN D2866 LXE30. MAN reference 51.#0160-0081 exhaust system water cooled with/for wet air filter.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.98112-2448 | flange | 1 | current |
| 2 | 06.56259-0033 | gasket 35X58X1,0-AFOE2-M3219-A1-G1 | 1 | current |
| 3 | 06.01283-5113 | hexagon screw M8X20-8.8-MAN183-B1 | 2 | current |
| 4 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 2 | current |
| 5 | 06.08069-0028 | drain plug M18X1,5-ST-A3C | 1 | superseded → 06.08069-0029 |
| 6 | 06.56631-0237 | seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip | 1 | current |
| 7 | 51.98131-0049 | hose nipple 18-M22X1,5-ST | 1 | current |
| 8 | 06.56631-0239 | seal 22,3X30X1,5-ST/FKM1-80 with elastomer lip | 1 | current |
| 9 | 51.98131-0196 | hose nipple 10-M14X1,5-ST | 1 | current |
| 10 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 1 | current |
| 11 | 06.01014-7226 | hex shoulder stud M10X110-10.9-MAN183-B1 | 12 | current |
| 12 | 51.08901-0099 | Exhaust manifold seal | 6 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.08069-0028 | drain plug M18X1,5-ST-A3C | 06.08069-0029 |
