Intake system / exhaust manifold ยท group 080 0
Exhaust elbow water cooled

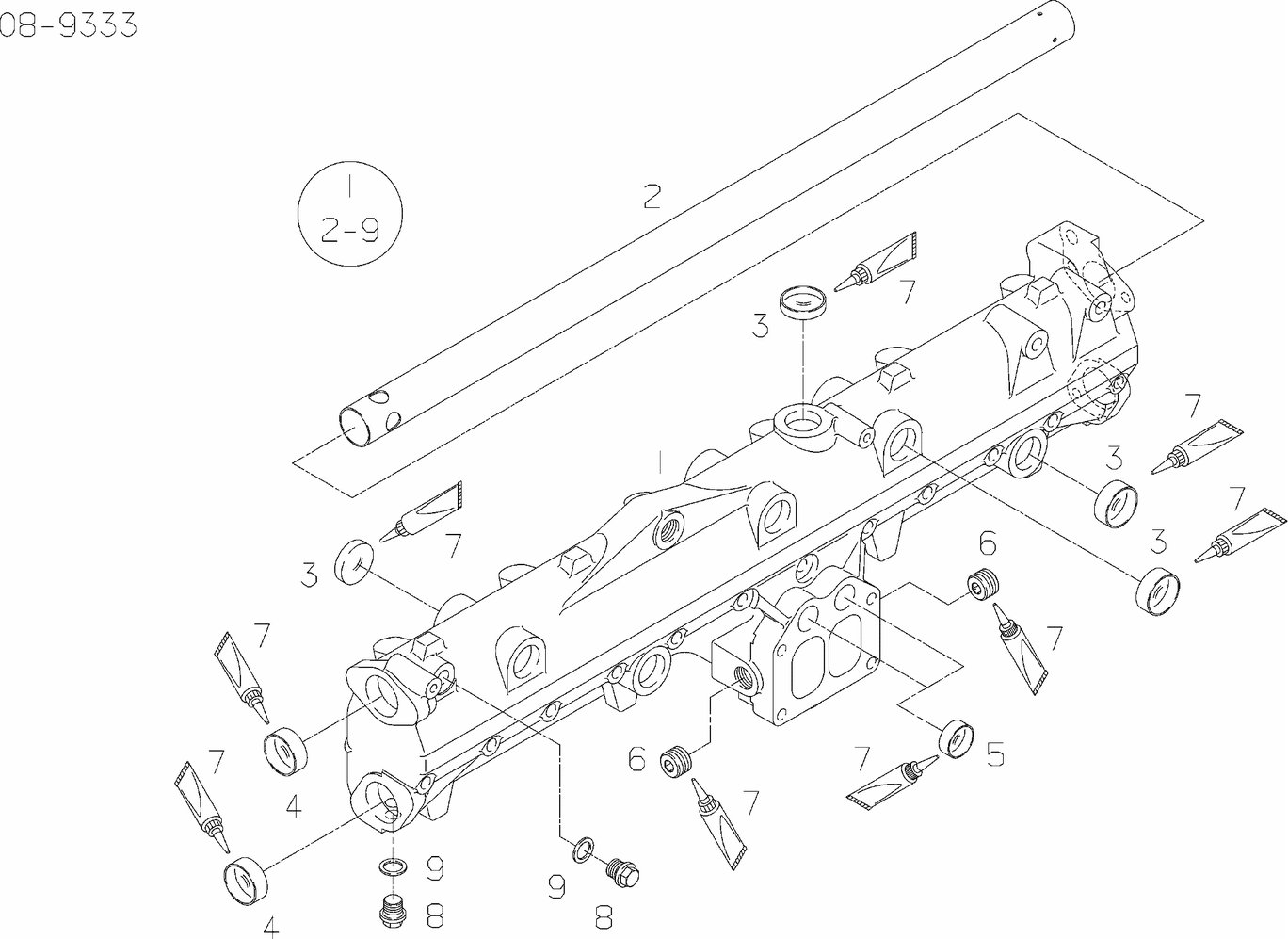

9 part numbers in this assembly of the MAN D2866 LXE30. MAN reference 51.#0160-0081 exhaust system water cooled with/for wet air filter.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.08101-6070 | exhaust elbow water cooled | 1 | superseded → 51.08101-6472 |
| 2 | 51.06302-2257 | tube | 1 | current |
| 3 | 51.91606-0036 | cover A32,3/10/1,5-X5CRNI1810 | 11 | current |
| 4 | 51.91606-0037 | cover A40,3/14,5-X5CRNI1810N | 2 | current |
| 5 | 51.91606-0040 | cover A25,2/8-X5CRNI1810N | 2 | superseded → 51.91606-0036 |
| 6 | 06.08023-0207 | drain plug M22X1,5-ST-ZNPHR3F | 2 | current |
| 7 | 04.10160-9164 | adhesive LOCTITE648-FL50ML bottle | NB | current |
| 8 | 06.08099-0025 | drain plug AM14X1,5-ST-MAN183-B1 | 2 | current |
| 9 | 06.56631-0235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 2 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.08101-6070 | exhaust elbow water cooled | 51.08101-6472 |
| 51.91606-0040 | cover A25,2/8-X5CRNI1810N | 51.91606-0036 |
