Intake system / exhaust manifold ยท group 080 0

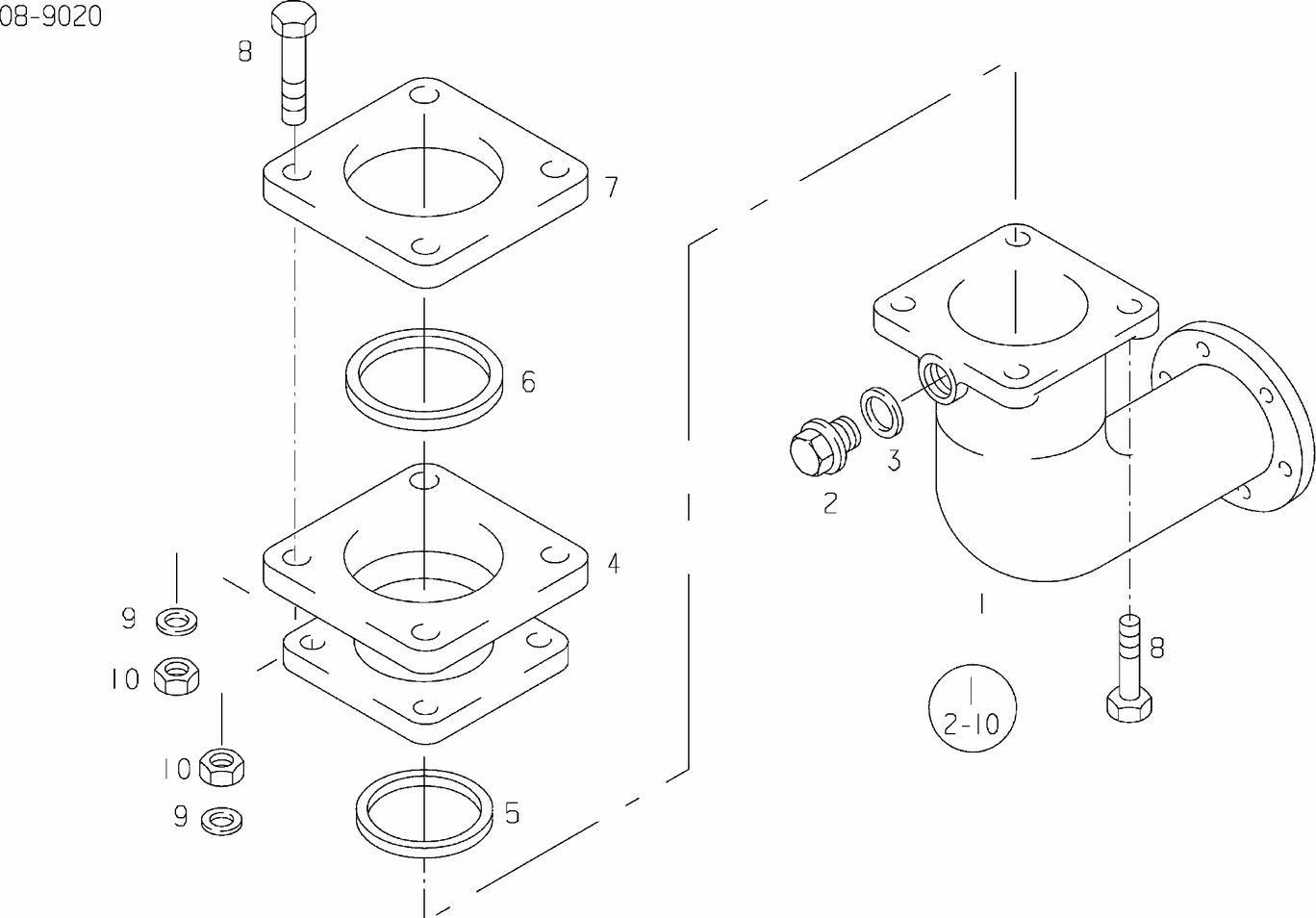

Exhaust elbow
10 part numbers in this assembly of the MAN D2866 LXE30. MAN reference 51.#0450-0076 exhaust elbow exhaust system water cooled not installed.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.15201-6152 | exhaust elbow | 1 | current |
| 2 | 06.08062-0750 | drain plug G3/4"A-ST-MAN183-B1 | 1 | current |
| 3 | 06.56190-0729 | seal A27X32-CU | 1 | current |
| 4 | 50.15201-5173 | exhaust pipe | 1 | current |
| 5 | 51.96601-0492 | gasket | 1 | current |
| 6 | 51.96601-0496 | sealing washer 125ND6X1,5-AFM7 | 1 | current |
| 7 | 50.15201-2082 | flange | 1 | current |
| 8 | 06.01289-0187 | hexagon screw M16X60-8.8-MAN183-A3C | 8 | current |
| 9 | 06.15013-0416 | washer 16X30X3-200HV-MAN183-B1 | 8 | current |
| 10 | 06.11240-2116 | hex lock nut AM16-8-A3C | 8 | superseded → 06.11240-0316 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.11240-2116 | hex lock nut AM16-8-A3C | 06.11240-0316 |
