Injection nozzles and pipes ยท group 100 0
Injection lines

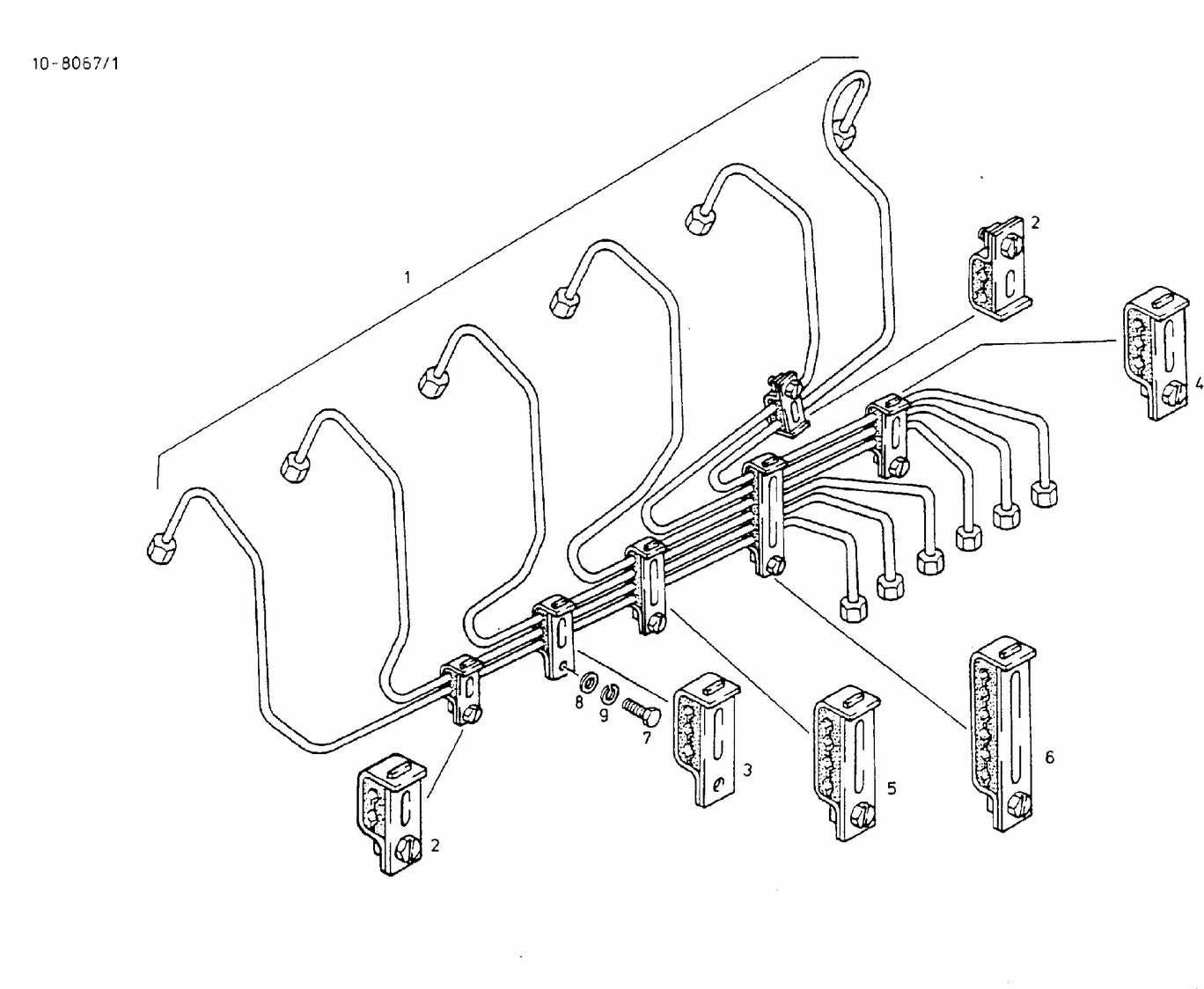

6 part numbers in this assembly of the MAN D2866 LXE30. MAN reference 51.#0210-0439 injection system1500FDRZ.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.10303-6236 | injection line cylinders 1-6 set hydraulically pre-compressed | 1 | current |
| 2 | 51.97401-6064 | mounting clamp B-2-ST/FPM-FE/ZN8C for injection pipes | 2 | current |
| 3 | 51.97401-6069 | mounting clamp C-3-ST/FPM-FE/ZN8C for injection pipes | 1 | current |
| 4 | 51.97401-6065 | mounting clamp B-3-ST/FPM-FE/ZN8C for injection pipes | 1 | current |
| 5 | 51.97401-6066 | mounting clamp B-4-ST/FPM-FE/ZN8C for injection pipes | 1 | current |
| 6 | 51.97401-6067 | mounting clamp B-6-ST/FPM-FE/ZN8C for injection pipes | 1 | current |
| item number 7 - 9 deleted | ||||
