Intake system / exhaust manifold ยท group 080 0

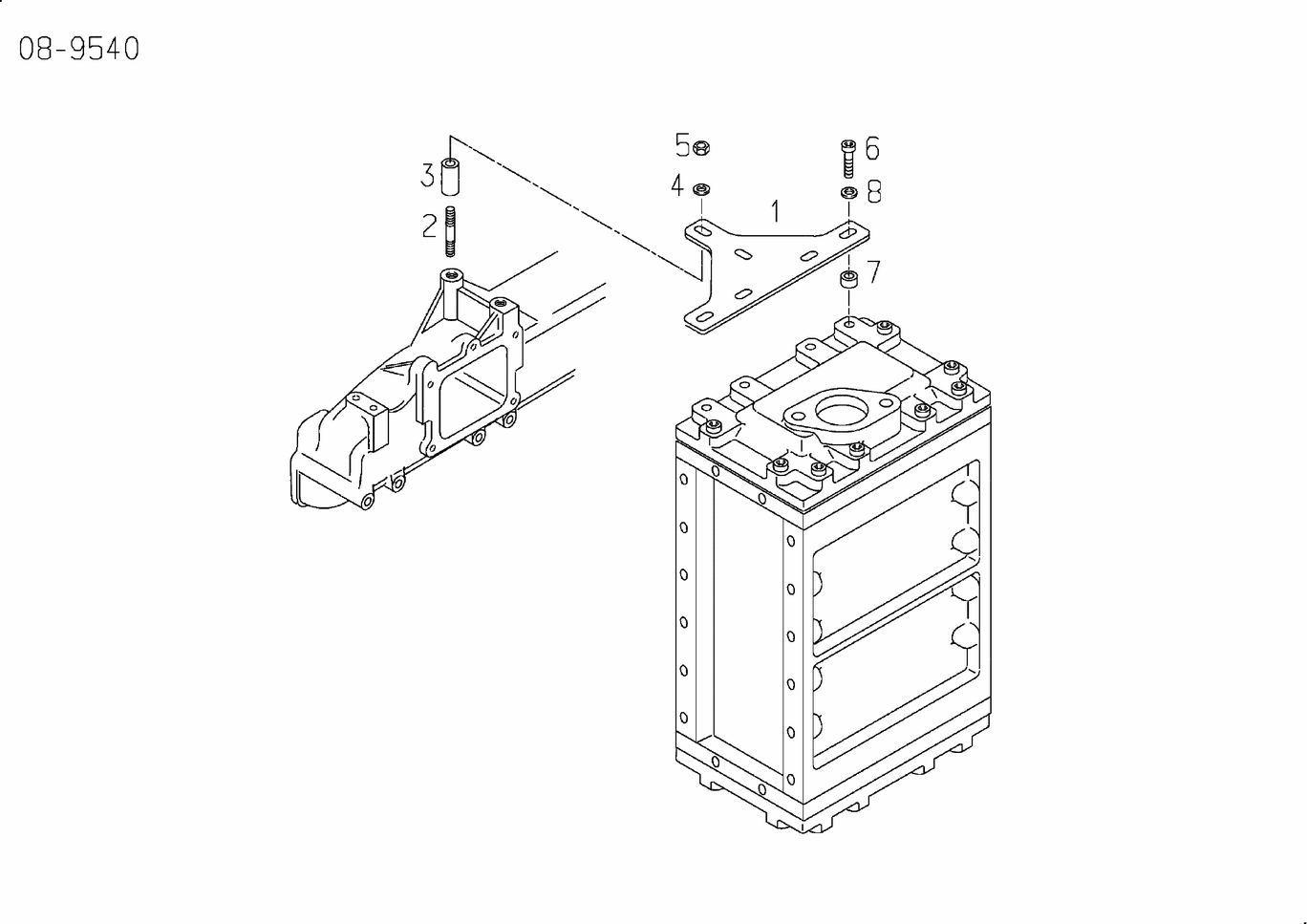

Intercooler mounting
9 part numbers in this assembly of the MAN D2866 LXE30. MAN reference 51.#0140-0261 heat exchanger with exhaust system water cooled.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.09540-0041 | bracket | 1 | current |
| 2 | 06.06135-8712 | stud M8X50-8.8-A2C | 2 | superseded → 06.06139-0070 |
| 3 | 51.91701-0590 | bush 9X20X28,5-ST35NBK | 2 | superseded → 51.93030-0290 |
| 3 | 51.93030-0290 | bush 9X20X28,5 | 2 | current |
| 4 | 51.90710-0636 | washer 9X19X4 | 2 | current |
| 5 | 06.11064-2114 | hexagon nut M8-8-MAN183-B1 | 2 | current |
| 6 | 06.02192-0413 | cylinder screw with hexagon socket M8X45-8.8-A2C | 4 | superseded → 06.02093-4413 |
| 6 | 06.02192-0412 | cylinder screw with hexagon socket M8X40-8.8-A2C | 4 | superseded → 06.02093-4412 |
| 7 | 51.90710-0636 | washer 9X19X4 | 4 | current |
| 8 | 06.15015-0411 | washer 8X16X1,6-300HV-MAN183-B1 | 4 | current |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.06135-8712 | stud M8X50-8.8-A2C | 06.06139-0070 |
| 51.91701-0590 | bush 9X20X28,5-ST35NBK | 51.93030-0290 |
| 06.02192-0413 | cylinder screw with hexagon socket M8X45-8.8-A2C | 06.02093-4413 |
| 06.02192-0412 | cylinder screw with hexagon socket M8X40-8.8-A2C | 06.02093-4412 |
