Crankgear · group 020 0
Pulley
4 part numbers in this assembly of the MAN D2866 E. MAN reference 51.#0080-0170 coolant pump mounting parts · 51.#0360-0343 V-belt pulley output 2-groove.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.

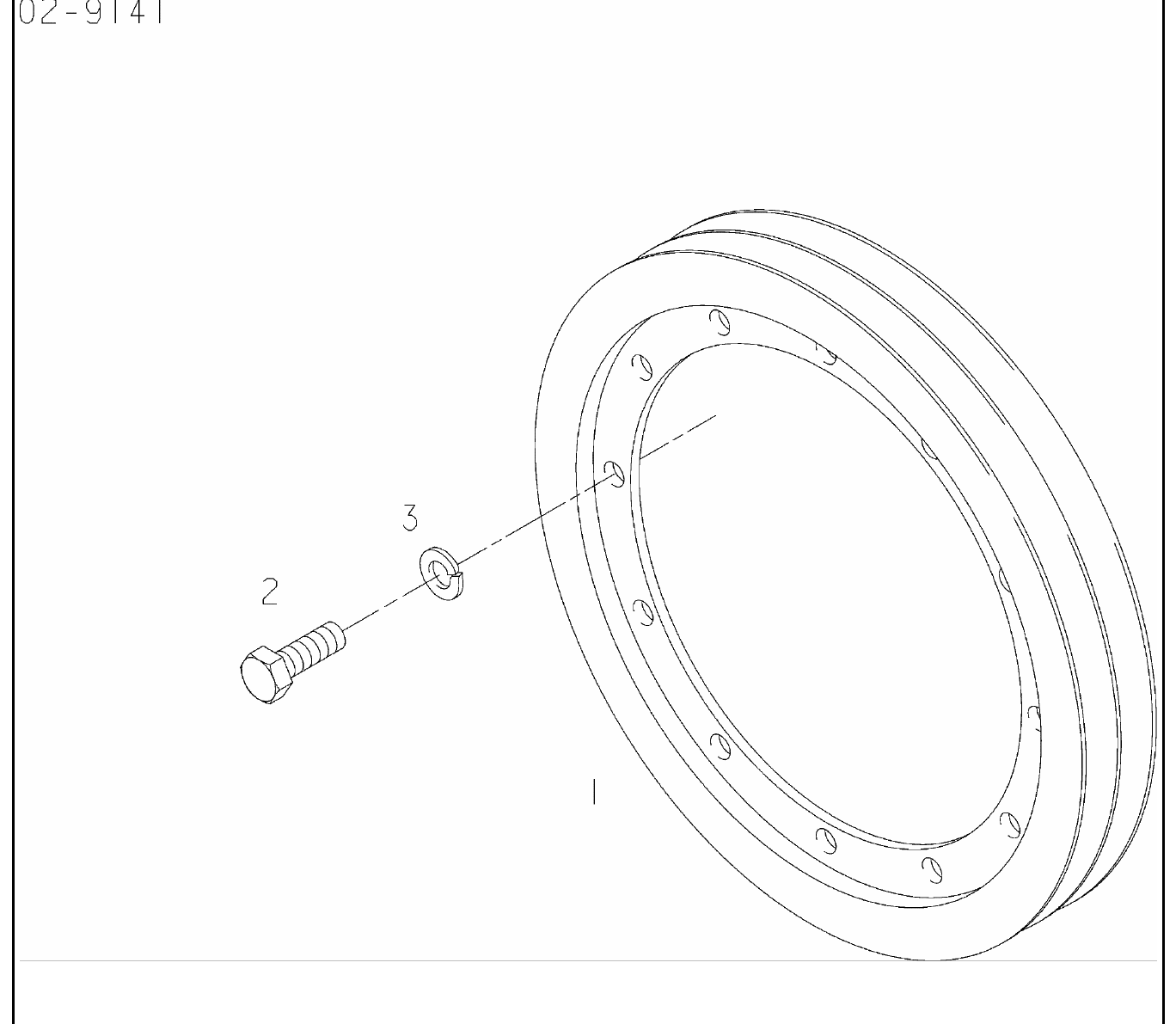

| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.02601-0320 | V-belt pulley 2-groove 2A241-12X194 | 1 | superseded → 51.02601-0394 |
| 2 | 06.01283-5114 | hexagon screw M8X22-8.8-MAN183-B1 | 6 | current |
| deleted | ||||
| 1 | 51.02601-0320 | V-belt pulley 2-groove 2A241-12X194 | 1 | superseded → 51.02601-0394 |
| 2 | 06.01283-5114 | hexagon screw M8X22-8.8-MAN183-B1 | 6 | current |
| deleted | ||||
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 51.02601-0320 | V-belt pulley 2-groove 2A241-12X194 | 51.02601-0394 |
| 51.02601-0320 | V-belt pulley 2-groove 2A241-12X194 | 51.02601-0394 |
