Charging ยท group 090 0

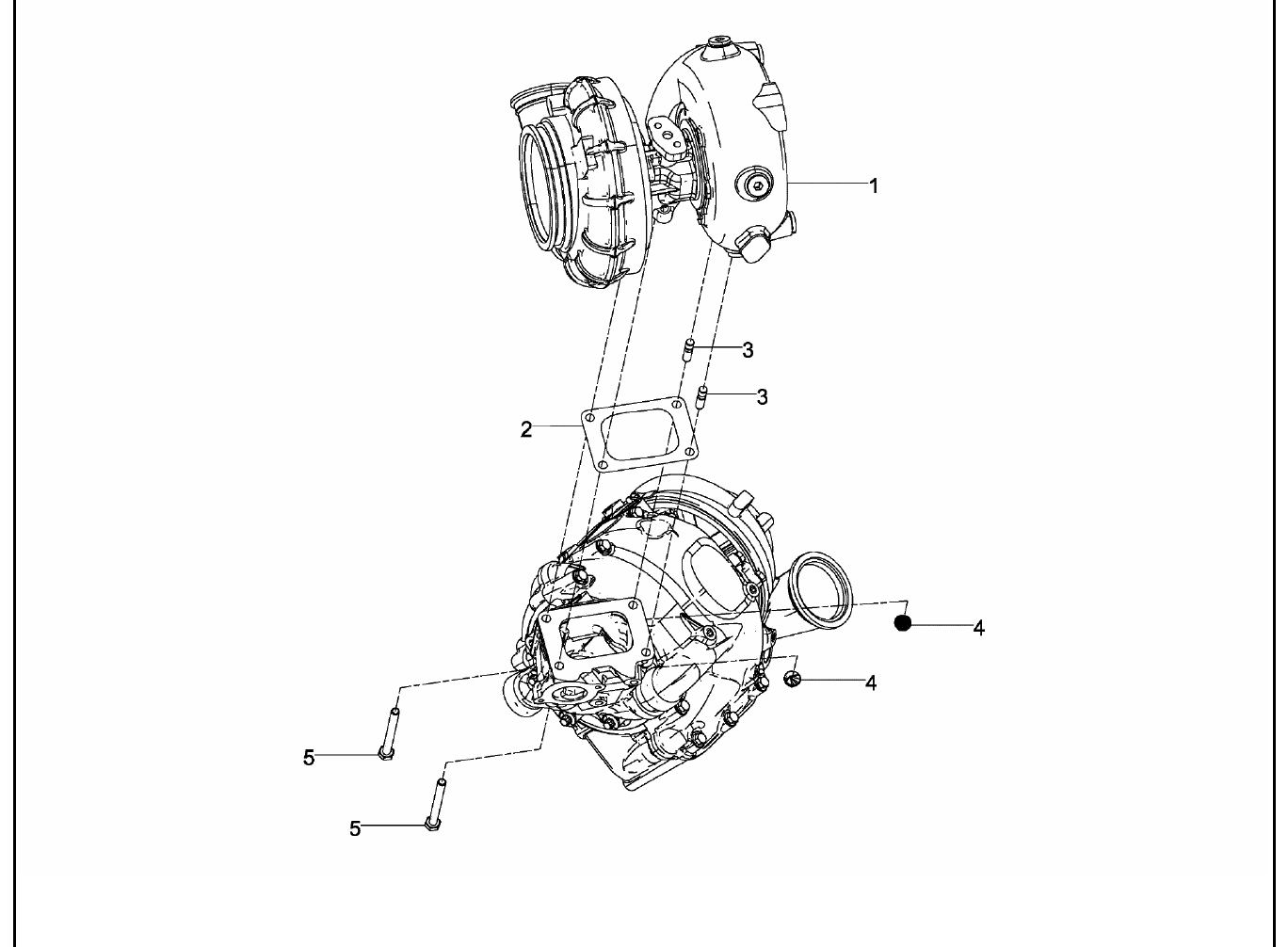

Turbocharger right step 1
5 part numbers in this assembly of the MAN D2868 LE433. MAN reference 51.#0070-0751 turbocharger water cooled 2-step.
Parts list
Indented rows are components of the item above them. Click any part number for fitment, weight and dimensions.
| Pos | Part number | Name / remarks | Qty | Status |
|---|---|---|---|---|
| 1 | 51.09100-7723 | turbocharger right | 1 | current |
| 2 | 51.08901-0041 | gasket | 1 | current |
| 3 | 06.06225-0809 | stud M10X35-8.8 | 2 | current |
| 4 | 06.11251-2001 | hex lock nut M10-10-MAN183-B1 | 2 | current |
| 5 | 06.01019-0139 | hex shoulder stud M10X100-8.8-A3C | 2 | superseded → 06.01013-7225 |
Prices on request. We quote genuine MAN parts at B2B rates, usually within a couple of hours. Send us your list.
Superseded numbers in this assembly
If you are reading one of these from an old parts list or an old invoice, order the number on the right.
| Number in the catalogue | Description | Order instead |
|---|---|---|
| 06.01019-0139 | hex shoulder stud M10X100-8.8-A3C | 06.01013-7225 |
