Piston
MAN Piston 51.02500-6483
Genuine MAN piston for D2676 marine diesel engine family, the part that carries combustion pressure down the connecting rod to the crankshaft.

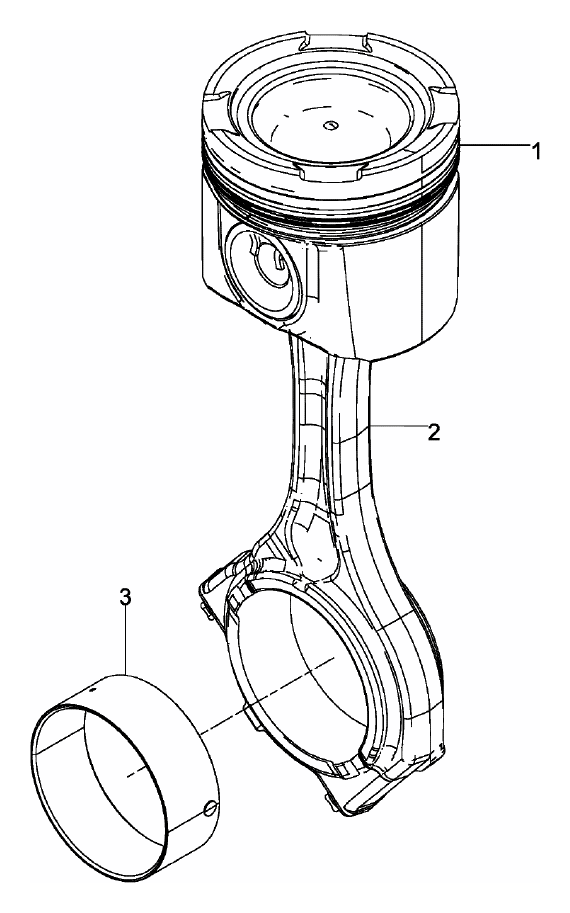

Technical drawing from the MAN parts catalogue. The actual part may differ in appearance.
Piston51.02500-6483
Engine familyD2676
Previous part no.51.02500-6423
51.02500-6400
51.02500-6400
Weight4.56 kg
Dimensions (W×L×H)13 × 11.2 × 13 cm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components
Parts on the MAN piston catalogue page for this engine (reference 51.#0011-0369). Item 1 is the piston supplied here, with its standard and undersize grades; the remaining items are the related rings, pin, connecting rod and bearings from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.02500-6423 | piston 126 normal | 6 |
| 1 | 51.02500-6483 | piston 126 | 6 |
| 2 | 51.02400-6176 | crack conrod | 6 |
| 3 | 51.02410-6692 | conrod bearing normal sputtered | 6 |
Specifications
| Part number | 51.02500-6483 |
| Part no. (other formats) | 51.02500.6483 · 51025006483 |
| Description | Piston 126 |
| Engine family | D2676 |
| Engine / application | D2676 LE3../4.. |
| Previous part no. |
|
| Weight (kg) | 4.56 |
| Dimensions W×L×H (cm) | 13 × 11.2 × 13 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
