Raw water pump
MAN Raw Water Pump 51.06500-6714
Genuine MAN raw water (sea water) pump for the D2862 / D2868 marine diesel engine family, supplied complete and ready to fit.
Raw water pump51.06500-6714
Engine familyD2862 / D2868
Previous part no.51.06500-7110
Weight11.27 kg
Dimensions230 × 165 × 345 mm
Country of originGermany
Warranty2 years
Genuine OEM · dispatched same day
Components

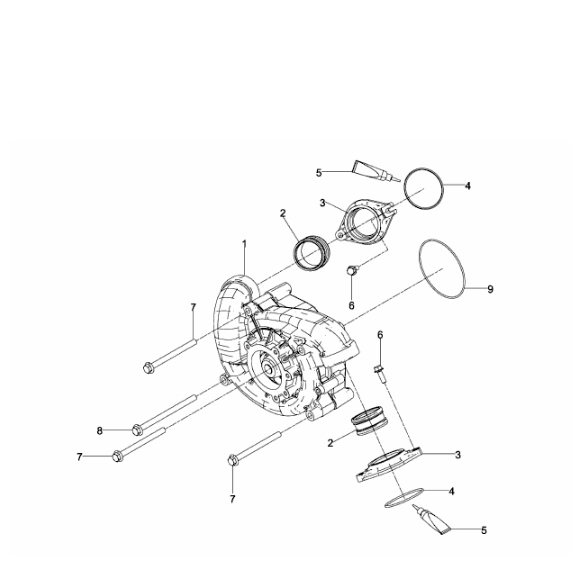

Parts on the MAN catalogue page for this assembly (reference 51.#0470-0824). Item 1 is the pump supplied here (superseding 51.06500-7110); the remaining items are the related mounting and sealing parts from the same group, available on request.
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-7110 | coolant pump | 1 |
| 1 | 51.06500-6714 | coolant pump | 1 |
| 2 | 51.98182-0123 | extension tube | 2 |
| 3 | 51.06312-0098 | intermediate flange coolant pump | 2 |
| 4 | 06.56936-2709 | O-ring 73X3N-FKM1-70-GN | 2 |
| 5 | 04.90300-9030 | sealant 60 ML tube | NB |
| 6 | 06.03215-8305 | hex flange bolt M8X25-8.8-MAN183-B1 | 4 |
| 7 | 06.03216-8420 | hex flange bolt M10X130-10.9-MAN183-B1 | 3 |
| 8 | 06.03216-8423 | hex flange bolt M10X160-10.9-MAN183-B1 | 1 |
| 9 | 06.56936-3535 | O-ring 115X2,5N-FPM1-70-GN | 1 |
Specifications
| Part number | 51.06500-6714 |
| Part no. (other formats) | 51.06500.6714 · 51065006714 |
| Engine family | D2862 / D2868 |
| Engine / application |
|
| Previous part no. | 51.06500-7110 |
| Weight (kg) | 11.27 |
| Dimensions (mm) | 230 × 165 × 345 |
| Country of origin | Germany |
| Warranty | 2 years |
| Availability | In stock |
