Raw water pump
MAN Raw Water Pump 51.06500-7034
Genuine MAN raw water (sea water) pump for D2866 marine diesel engines.
Raw water pump51.06500-7034
Engine modelD2866
Previous part no.—
Weight6.554 kg
Dimensions140 × 120 × 280 mm
Country of originSweden
Warranty2 years
Genuine OEM · dispatched same day

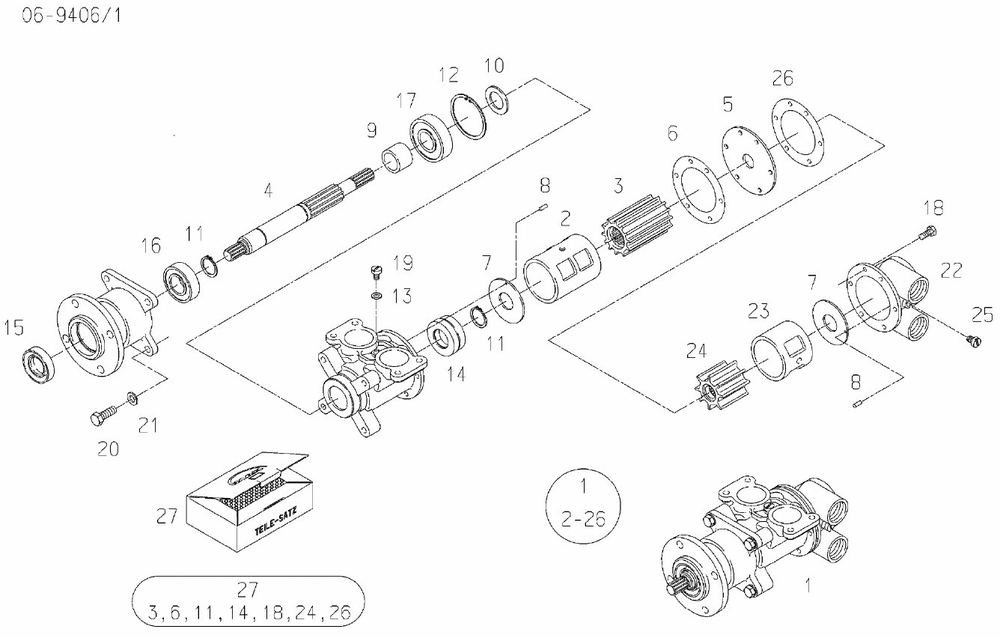

Components
Parts contained in this assembly, per the MAN parts catalogue (reference 51.#0290-0156).
| Pos | Item number | Name / Remarks | Qty |
|---|---|---|---|
| 1 | 51.06500-7034 | raw water pump | 1 |
| 2 | 51.06501-0246 | excentric | 1 |
| 3 | 51.06506-0103 | Impeller | 1 |
| 4 | 51.06505-0069 | shaft | 1 |
| 5 | 51.90720-0183 | washer | 1 |
| 6 | 51.06901-0165 | Coolant pump seal | 1 |
| 7 | 50.06520-0063 | wear plate | 2 |
| 7 | 51.06520-0116 | wear plate | 1 |
| 8 | 51.91301-0104 | pin | 2 |
| 9 | 51.91701-0820 | spacer bush | 1 |
| 10 | 50.90720-0149 | slinger | 1 |
| 11 | 50.90815-0028 | circlip | 2 |
| 12 | 06.29020-0135 | circlip 60X2,00-ZNPHR5F | 1 |
| 13 | 51.90720-0184 | washer | 1 |
| 14 | 51.06520-0081 | Axial face seal | 1 |
| 15 | 51.06901-0166 | Coolant pump seal | 1 |
| 16 | 06.31450-6302 | ball bearing 6205-2RSC3 | 1 |
| 17 | 51.93410-0100 | ball bearing 6305-2LSC4-BB | 1 |
| 18 | 06.01325-1011 | hexagon screw M5X16-A4-70 | 4 |
| 19 | 06.04259-0051 | cylinder screw M8X12-CU7 | 1 |
| 20 | 06.01283-3115 | hexagon screw M8X25-8.8-A2C | 4 |
| 21 | 51.90810-0036 | spring washer | 4 |
| 22 | 51.06501-0247 | water pump housing | 1 |
| 23 | 51.06501-0244 | excentric | 1 |
| 24 | 50.06506-0091 | Impeller | 1 |
| 25 | 51.90030-0073 | cylinder screw NR12-24X10-CUZN39 | 1 |
| 26 | 51.06901-0167 | Coolant pump seal | 1 |
| 27 | 51.06599-6064 | Water pump repair kit | 1 |
Specifications
| Part number | 51.06500-7034 |
| Part no. (other formats) | 51.06500.7034 · 51065007034 |
| Engine model | D2866 |
| Previous part no. | — |
| Weight (kg) | 6.554 |
| Dimensions (mm) | 140 × 120 × 280 |
| Country of origin | Sweden |
| Warranty | 2 years |
| Availability | In stock |
